Installation
Fitting the Gantry 3.1.4 Removing the Top Cover
118 Gantry Retrofit Portalnachrüstung

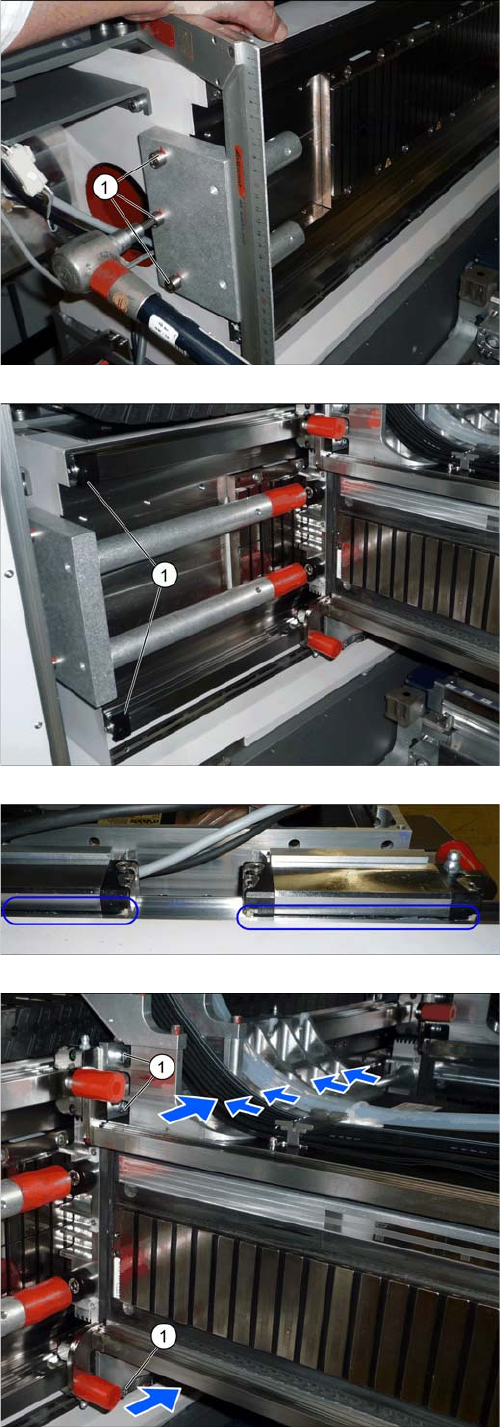

► Fit the buffer holder with the three fastening
screws (1). Make sure that this is exactly vertical.
Tighten the three fastening screws with a torque of
24.7 Nm.
► Fit the long buffer (1).
► Fit the two plastic covers on the ends of the guide
rails (2).
► Check the gap between the trolley and the guide rails.
This should be the same at all points.
► Tighten the 16 fastening screws (1) with a torque of
9.5 Nm.
Always tighten all four screws in the row. Start with
the top row and work your way downwards.
► Tighten the 16 fastening screws again to check them,
using a torque of 9.5 Nm.
Installation
3.1.4 Removing the Top Cover Fitting the Y Trailing Cable for Gantry 1/3
Gantry Retrofit Portalnachrüstung 119
3.6
3.6 Fitting the Y Trailing Cable for Gantry 1/3
Fitting the Y Trailing Cable for Gantry 1/3
► If any white hoses were damaged during removal, cut these with hose cutters.
NOTICE
Recommendation: rubber gloves
The hoses are very smooth.
► We recommend using rubber gloves for better handling.

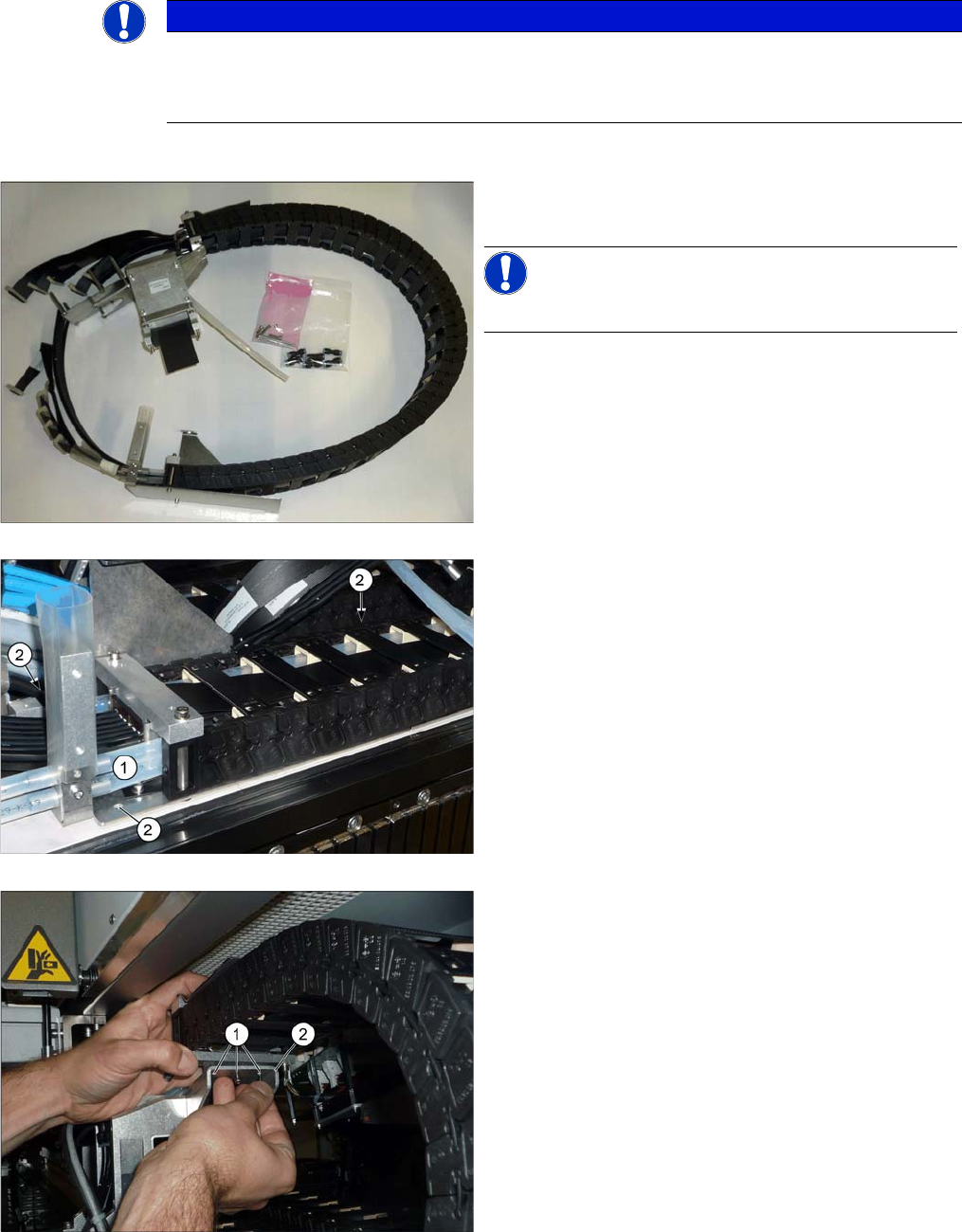

► Remove the "goose neck" and the three sealed
screws on the new trailing cable.
NOTICE!
This will still be on any gantry which is already present.
► Place the trailing cable into the machine.
► Fit the white hoses (1) to the lower trailing cable.
► Fasten the lower trailing cable with the three fasten-
ing screws (2) and Loctite 241.
► Fit all flat ribbon cables to the trailing interface and
the six black hoses. See also "4.1.1 Replacing the
Trailing Cable" [ ➙ 131].
► Fasten the upper trailing cable with the three
screws (1) to the goose neck (2). Secure the screws
with Loctite 241.
Installation
Fitting the Y Trailing Cable for Gantry 1/3 3.1.4 Removing the Top Cover
120 Gantry Retrofit Portalnachrüstung
► Further installation is performed by following the above instructions in the reverse order. Also read
section "4.1.1.3 Replacing the Y Trailing Cable" [ ➙ 137].

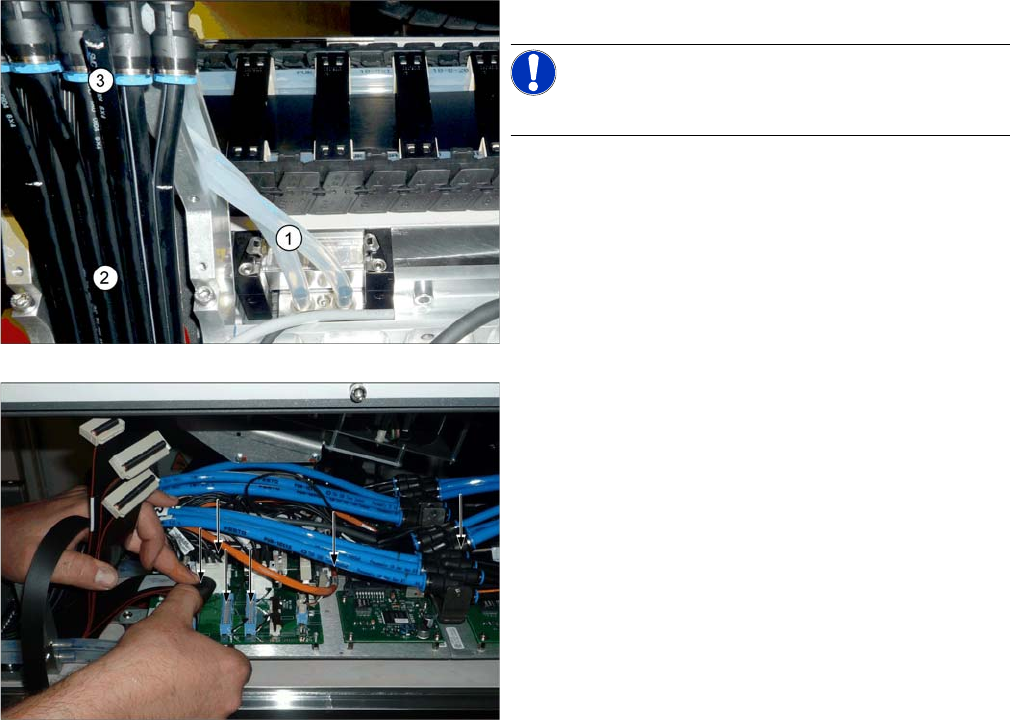

► Attach the white (1) and black hoses (2) to the gantry.
NOTICE!
The 3rd black hose (3) serves as a spare and is not used.
► Reconnect the electrical and pneumatic systems to
the trailing interface.
► Connect the divided flat ribbon cable to the Vision
Hotlink Adapter, with one section on the trailing inter-
face and the other section on the Vision Hotlink
Adapter (from the back).
