Install the Calibration Plate Jig
HLF-10101-01
Install the Calibration Plate Jig
SHEET
3/3
7 Perform the origin position return.
1. Press the RESET button on the operation panel to perform the initialization.
2. When “SYMC Initialize End” is displayed in the screen, press the FRONT button to turn
ON the servo.
3. Press the ORG button on the operation panel to start the origin position return.
When the origin position return is completed, the ORG button goes off.
8 Fix the calibration plate jig.

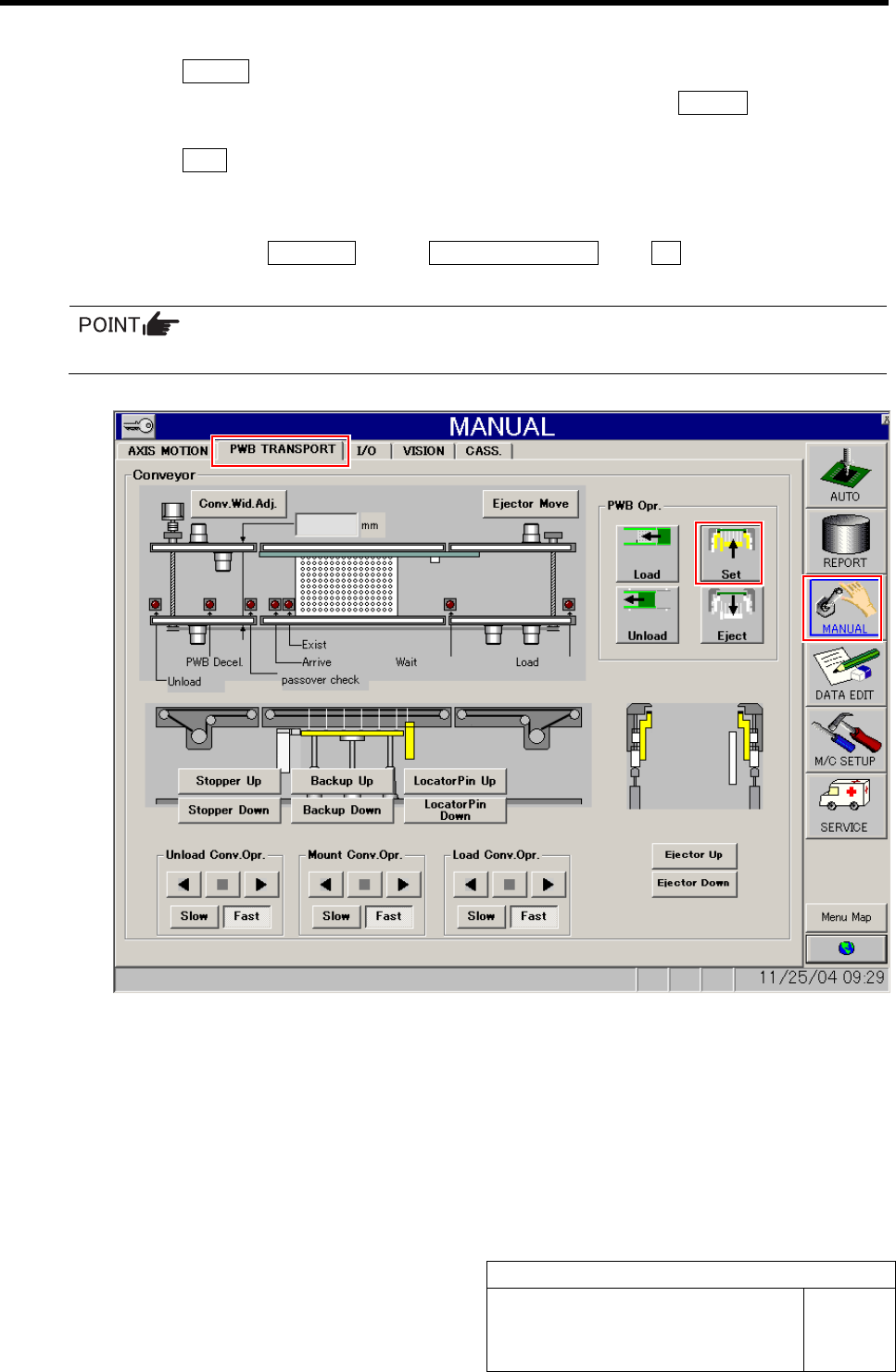

1. Click in an order of MANUAL menuÎPWB TRANSPORT tabÎSet button.
Locator pin, Backup plate and Ejector simultaneously rise, and the calibration plate jig is fixed.
The risen portions are displayed in yellow on the screen.
Remove Production Nozzle
HLF-10102-01
Remove Production Nozzle
SHEET
1/2
Remove Production Nozzle
Remove the nozzle used for production according to the procedure in this section because it is not
used for calibration operation.
[Procedure]

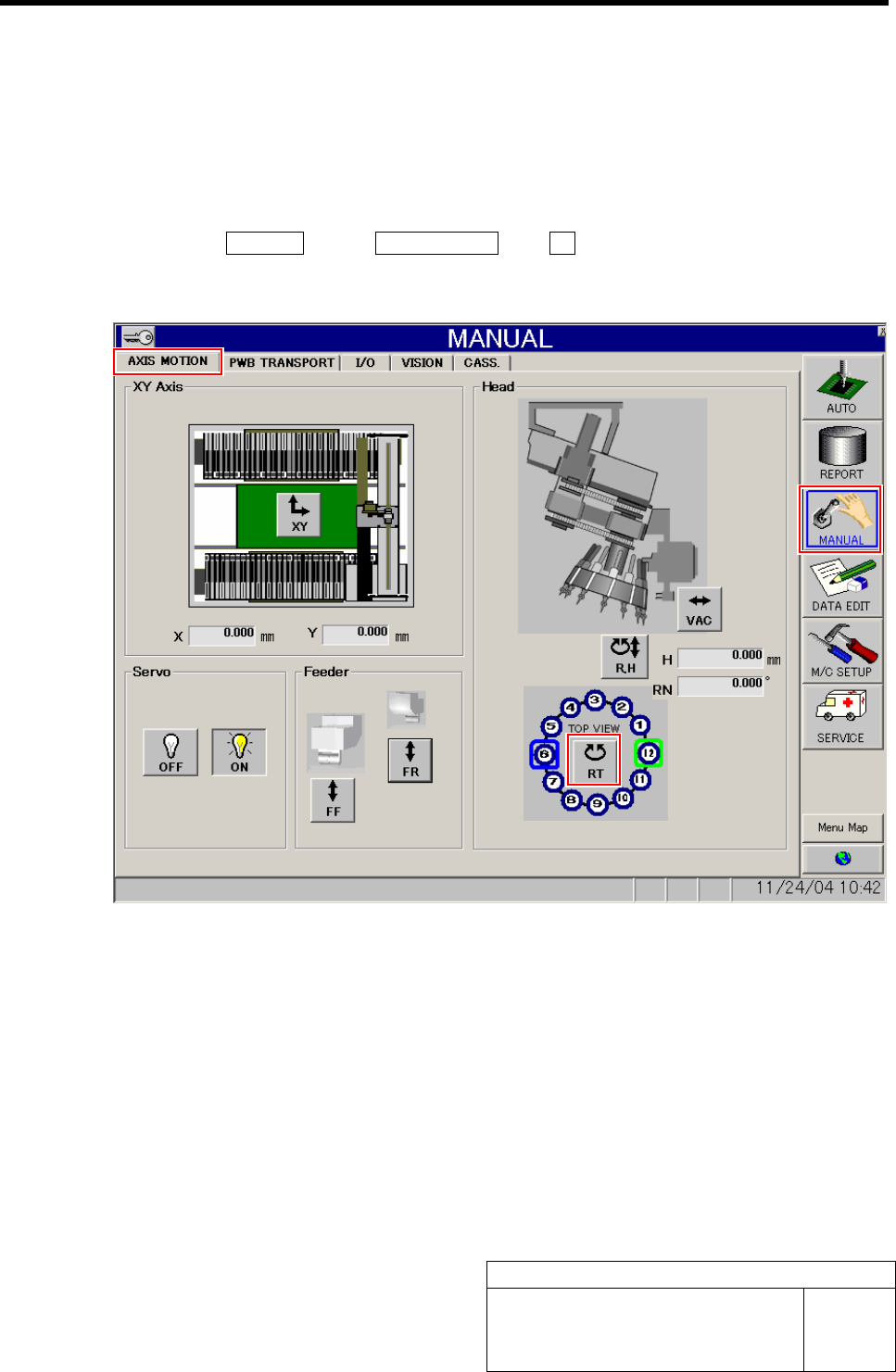

1 Click in an order of MANUAL menuÎAXIS MOTION tabÎRT button.
Turret RT Axis screen is displayed.
Remove Production Nozzle
HLF-10102-01
Remove Production Nozzle
SHEET
2/2

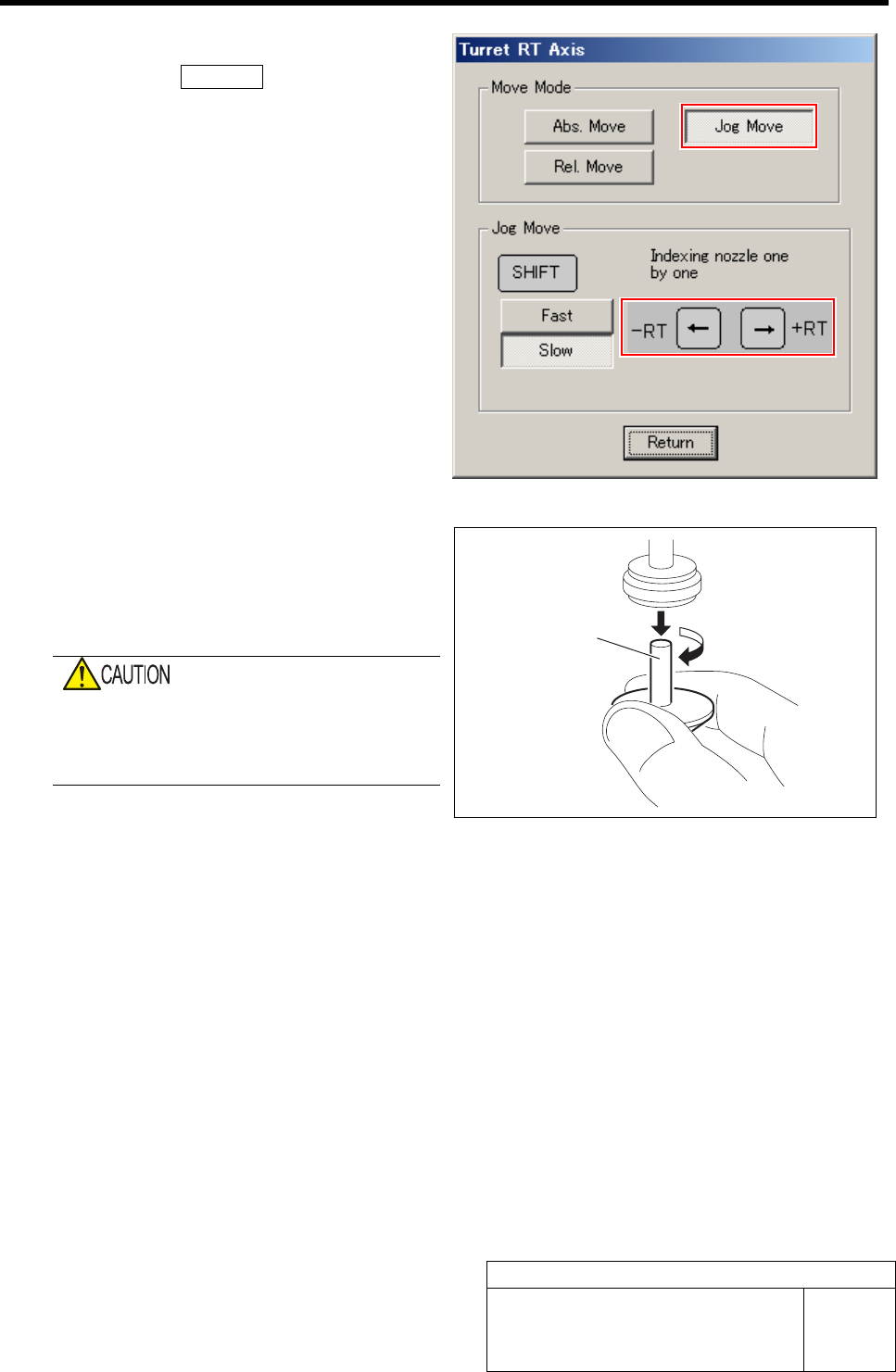

2 Move the nozzle to be removed toward you.
1. Click the Jog Move button in the move
mode.
2. Press the cursor key on the left and
right to jog move the nozzle to be re-
moved toward you.
3 Grab circumference of the nozzle by fingers
and pull out downward with light force while
turning the nozzle slowly.
When removing the nozzle, do not grab the
end of the nozzle.
Otherwise, the nozzle may be deformed,
causing failure of adsorption or placement.
4 Repeat the procedure 2 and 3 to remove all
of the 12 nozzles.
Nozzle
