How to Display Calibration Screen
HLF-10103-01
How to Display Calibration Screen
SHEET
1/3
How to Display Calibration Screen

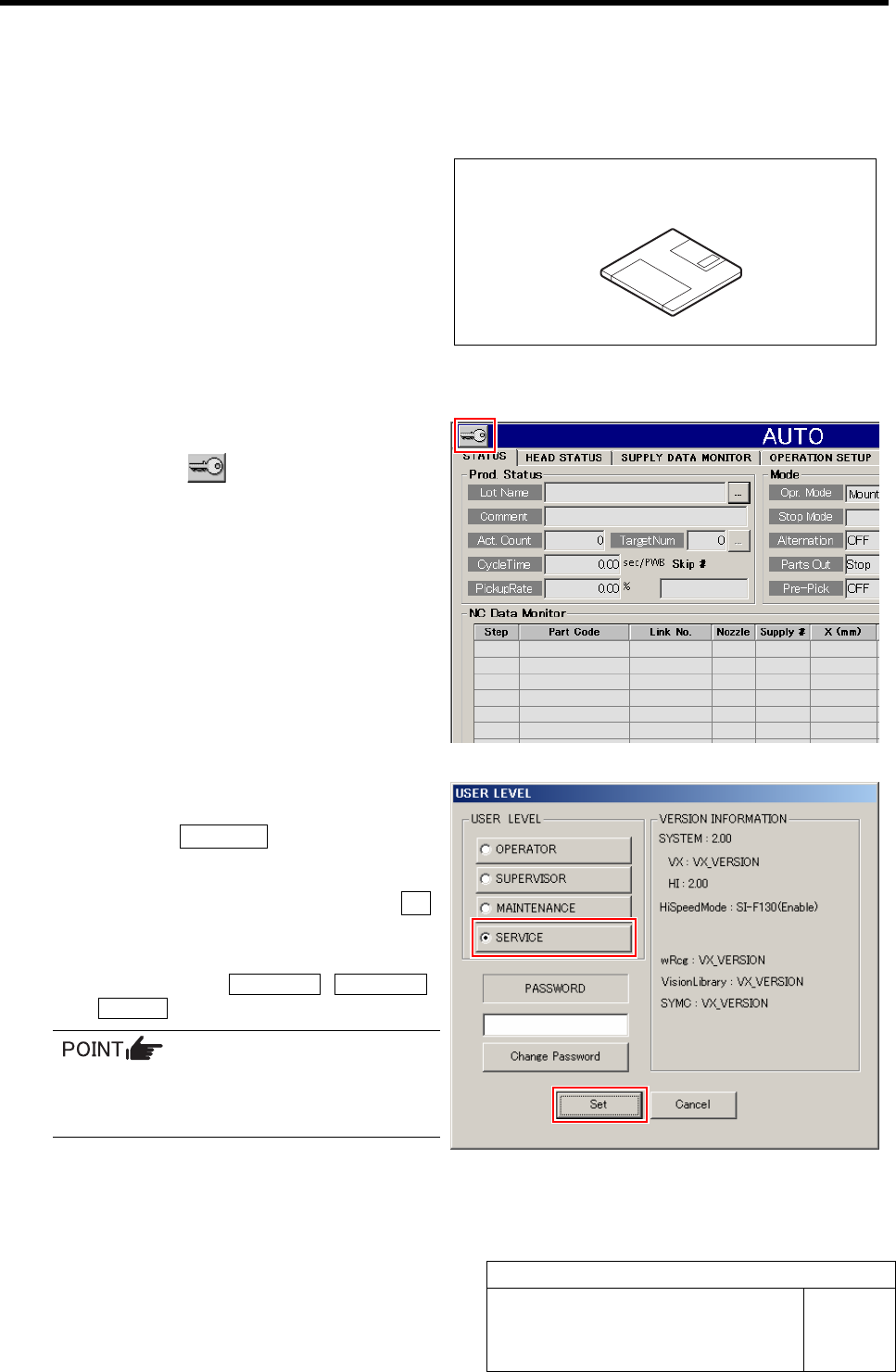

[Necessary jigs]
• Jig floppy disk
[Procedure]
1 Display the USER LEVEL screen.
1. Click the button on the left up-
per of the screen.
USER LEVEL screen is displayed.
2 Change the USER LEVEL to “SERVICE”.
1. Click the SERVICE button.
A cursor appears on a PASSWORD entry space.
2. Enter the password and click the Set
button.
The screen returns to HI screen and respective
menu buttons of DATA EDIT, M/C SETUP,
SERVICE appear on the right of the screen.
To display the calibration screen, it is necessary
to change the USER LEVEL to
[MAINTENANCE] or [SERVICE].
Jig floppy disk
How to Display Calibration Screen
HLF-10103-01
How to Display Calibration Screen
SHEET
2/3

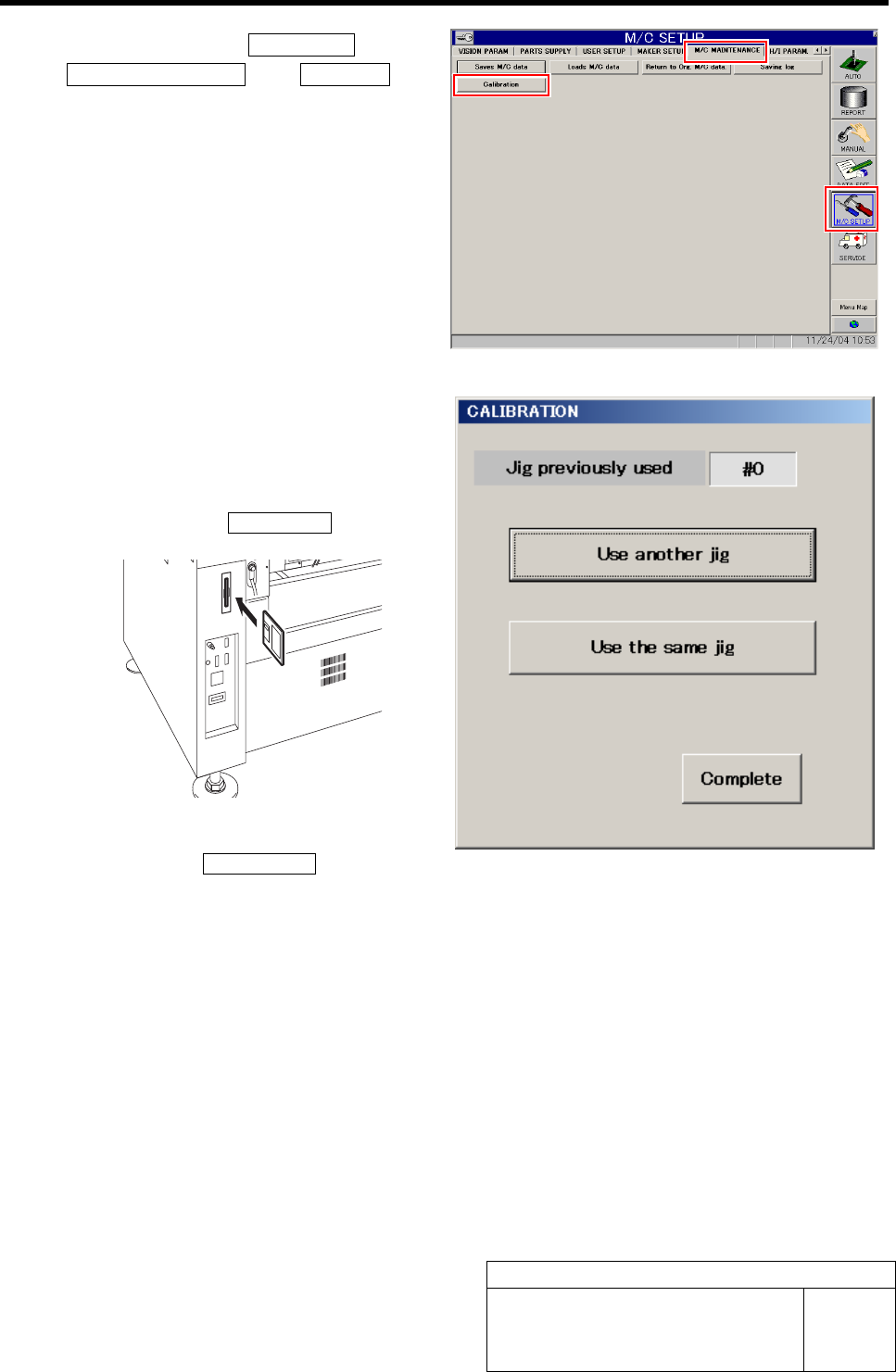

3 Click in an order of M/C SETUP menuÎ
M/C MAINTENANCE tabÎCalibration but-
ton.
A select screen for jig used for calibration appears.
4 Select jig used for calibration.
When performing calibration for the first time, or
when performing calibration by using jig different
from the previous one, set a floppy disk storing ma-
chine data and click the Use another jig.
If calibration has been previously performed by using
the same jig, click the Use the same jig.
How to Display Calibration Screen
HLF-10103-01
How to Display Calibration Screen
SHEET
3/3

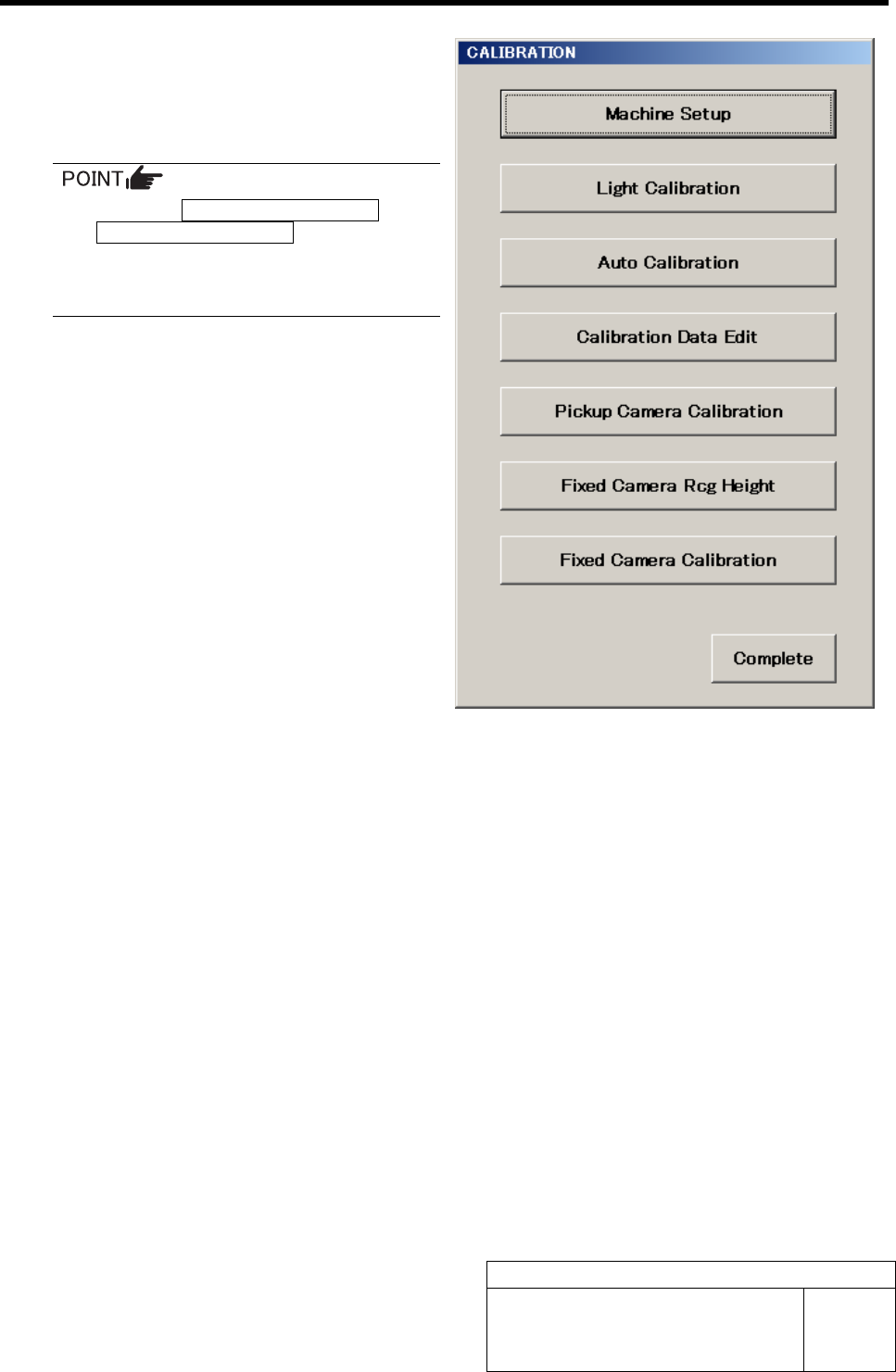

When jig has been selected, a CALIBRATION screen
appears.
For machine setup and respective calibrations described
in the following pages, the respective operation screens
can be opened from this menu.
Two buttons of Fixed Camera Rcg Height button
and Fixed Camera Calibration button do not be-
come effective unless all calibrations from Ma-
chine Setup to Pickup Camera Calibration are
correctly completed.
