V -CPU BOARD SDF-10102-01 V -CPU BOARD SHEET 1/1 V -CPU BOARD [Layout] CN17 J1 J2 J3 DOC 2000 CN20 CN22 [Configuration] Name Configuration Function J1 3 2 1 CMOS data ret aining J2 1 2 3 System-rest the WDT output J3 A B…
W-CPU BOARD
SDF-10101-01
W-CPU BOARD
SHEET
1/1
W-CPU BOARD
[Layout]
J2
J1
JUMPER
[Configuration]
Name Configuration Function
J1
Open: CMOS data retaining
Short: Return BIOS to shipping setting
J2
System-reset the WDT output
JUMPER
On board buzzer effective
V-CPU BOARD
SDF-10102-01
V-CPU BOARD
SHEET
1/1
V-CPU BOARD
[Layout]
CN17
J1
J2
J3
DOC
2000
CN20
CN22
[Configuration]
Name Configuration Function
J1
3 2 1
CMOS data retaining
J2
1 2 3
System-rest the WDT output
J3
A B C
DOC2000
Address setting:E000h
(default:D000h)
CN17
On-board buzzer effective
CN20
1 2 3
ATX function off
CN22
Reserved (default close)

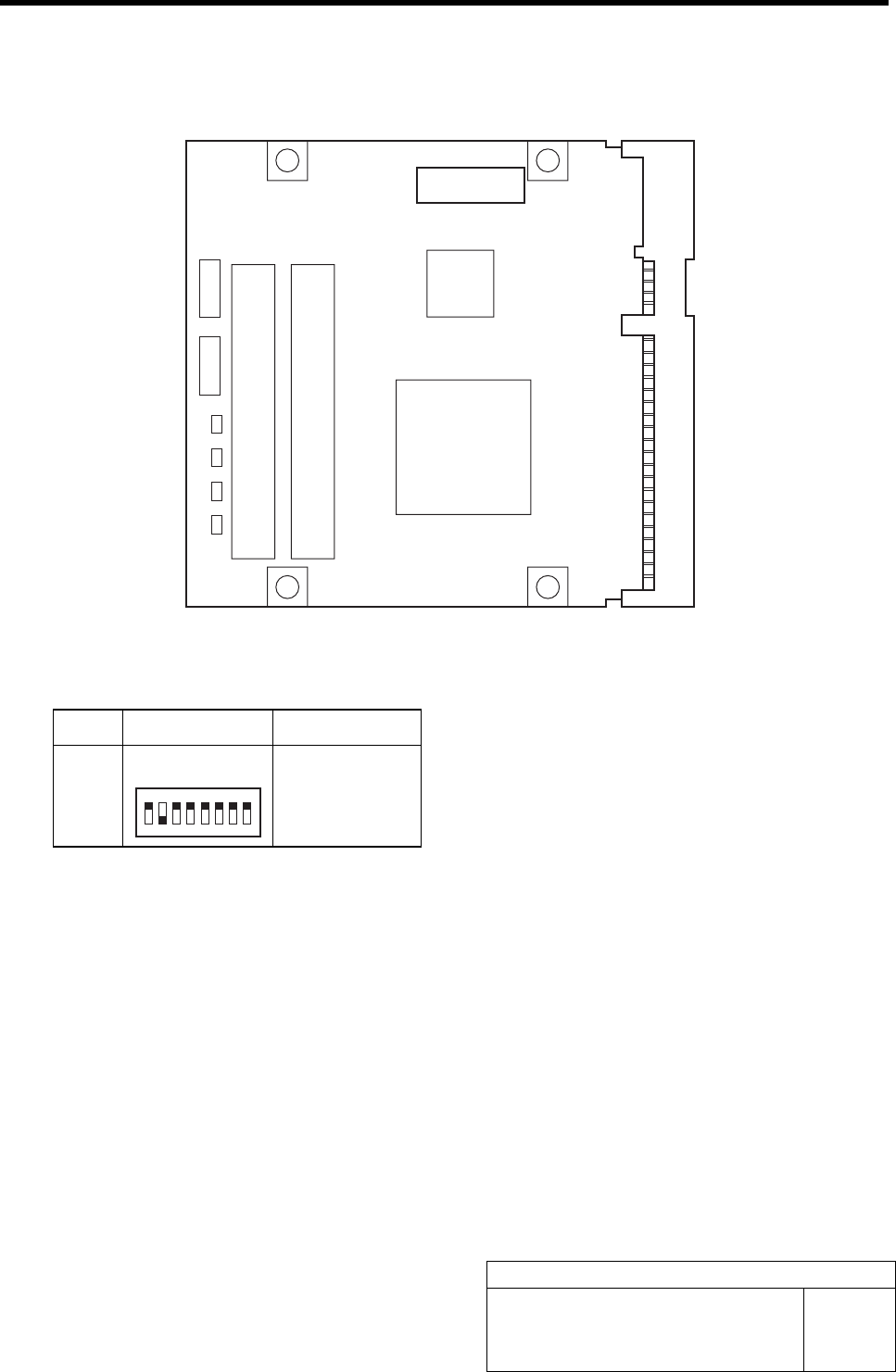

RAID BOARD
SDF-10103-01
RAID BOARD
SHEET
1/1
RAID BOARD
[Layout]
S1
[Configuration]
Name Configuration Function
S1
ON
1 2 3 4 5 6 7 8
SF 1
SF 2
SF 3
DMA
HOT P
CACHE
RECON
RESER
VED
