Jig List JGF-10101-01 Jig List SHEET 3/9 No. Jig name / Part s No. Outside appe arance Qty Uses Remarks 1 1 F axis return block 2-587-736-01 20.6 20.1 1 Position adjustment for FF/FR axis feeder backward detect sensor 12…
Jig List
JGF-10101-01
Jig List
SHEET
2/9
No. Jig name / Parts No. Outside appearance Qty Uses Remarks
7 Nozzle jig (AF06040)
X-4700-419-2
2 RT-axis origin position setup
PWB camera setup
Adjustment of blow flow rate, others
8 H axis sensor adjusting jig
15.5
15
1
Adjustment of H axis lower limit sensor
position
15.5 mm : 4-721-284-01
15.0 mm : 4-721-284-11
9 Feed adjusting jig
A-8417-280-A
1
Adjustment of FF/FR axis feed roller
Y-direction position
Adjustment of FF/FR axis feed roller
X-direction position
Adjustment of FF/FR axis feed roller
height
Position adjustment for FF/FR axis feeder
backward detect sensor
Adjustment of FF/FR axis feed roller
origin sensor dog
Adjustment of cassette float sensor
height
10 Part feed height jig
4-721-291-01
1
Adjustment of FF/FR axis feed roller
height
Position adjustment for FF/FR axis feeder
backward detect sensor
Adjustment of FF/FR axis feed roller
origin sensor dog
Jig List
JGF-10101-01
Jig List
SHEET
3/9
No. Jig name / Parts No. Outside appearance Qty Uses Remarks
11 F axis return block
2-587-736-01
20.6
20.1
1
Position adjustment for FF/FR axis feeder
backward detect sensor
12 Cassette float sensor adjusting jig
5
6
1
Adjustment of cassette float sensor
position
13 Bulk cassette jig
1 Adjustment of bulk cassette mechanism
14 Tension block jig
4-721-285-01
1 Adjustment of F axis belt tension 2-C3 x 14,
C4 x 15
15 Reference jig nozzle
4-721-271-01
1 Acquiring mounting stroke setup
Pickup camera calibration
Fixed camera Rcg height calibration
Pickup position setup
16 Pickup inspection camera calibration
jig
4-721-279-01
1 Pickup camera calibration
17 Jig chip (t=3.4, 1.4)
1 Parts camera calibration Jig chip (1) Ass’y (t=3.4 mm):
X-2055-168-1
Jig chip (2) Ass’y (t=1.4 mm):
X-2055-169-1
Jig List
JGF-10101-01
Jig List
SHEET
4/9

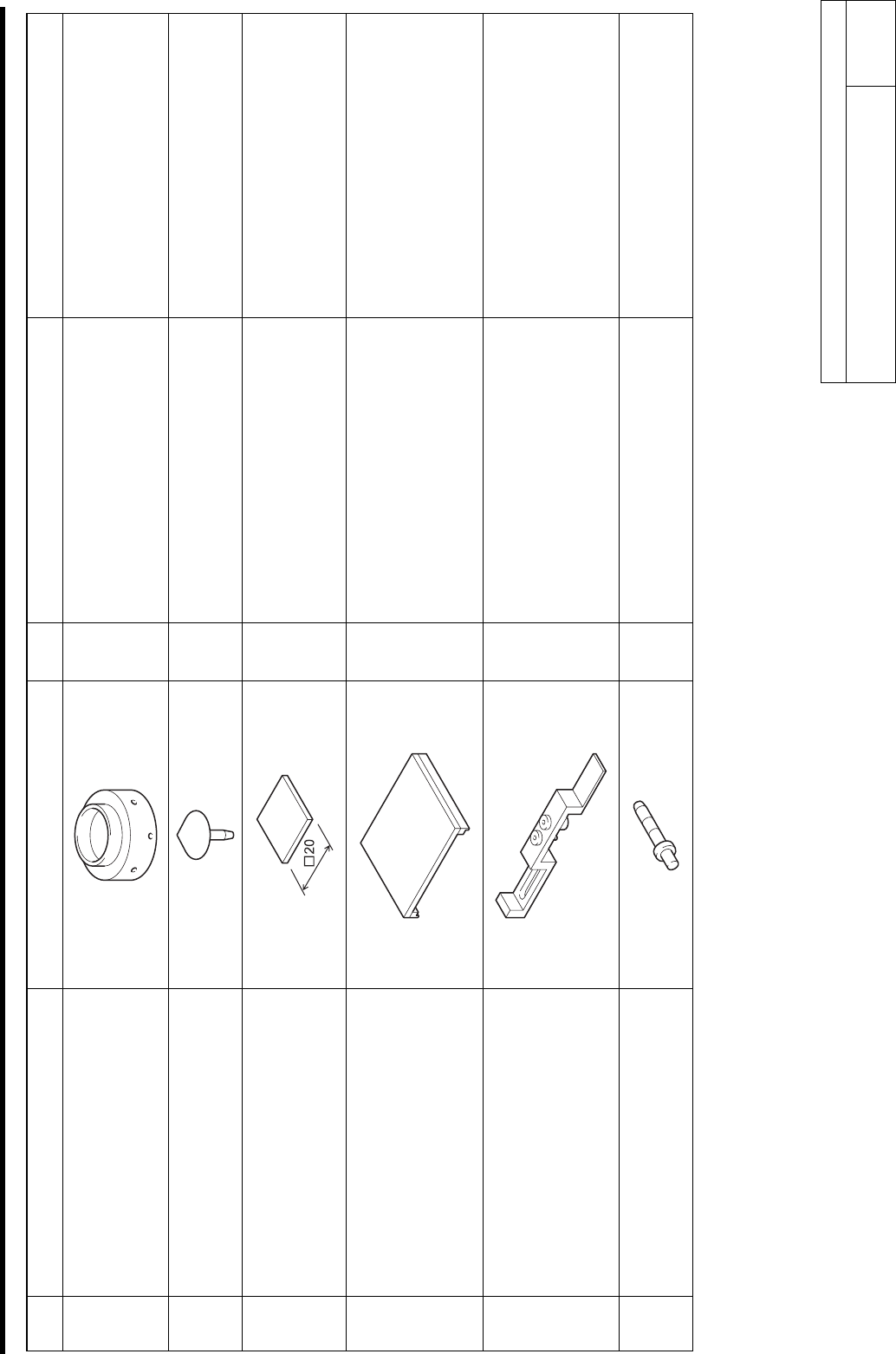

No. Jig name / Parts No. Outside appearance Qty Uses Remarks
18 Transmission brightness calibration
jig
1 Parts camera back light calibration ND Filter : 4-721-256-01
ND retaining ring : 4-721-257-01
ND holding ring : 4-721-258-01
19 Transmission nozzle jig
X-4700-423-1
1 Calibration of transmission brightness
20 Light calibration jig
4-721-273-01
1 PWB camera light calibration
0 degrees parts camera light calibration
45 degrees parts camera light calibration
21 Fixed camera light calibration jig
4-721-272-01
1 Fixed Camera Upper Light Calibration
Fixed Camera Middle Light Calibration
Fixed Camera Lower Light Calibration
AUX Camera Coaxial Light Calibration
22 Fixed camera part sensor adjusting
jig
A-8417-182-A
1 Adjustment of fixed camera part sensor Optical axis alignment block,
Sensor adjusting nozzles 1 and 2
23 Fixed camera jig nozzle
4-721-270-01
1 Adjustment of fixed camera part sensor
