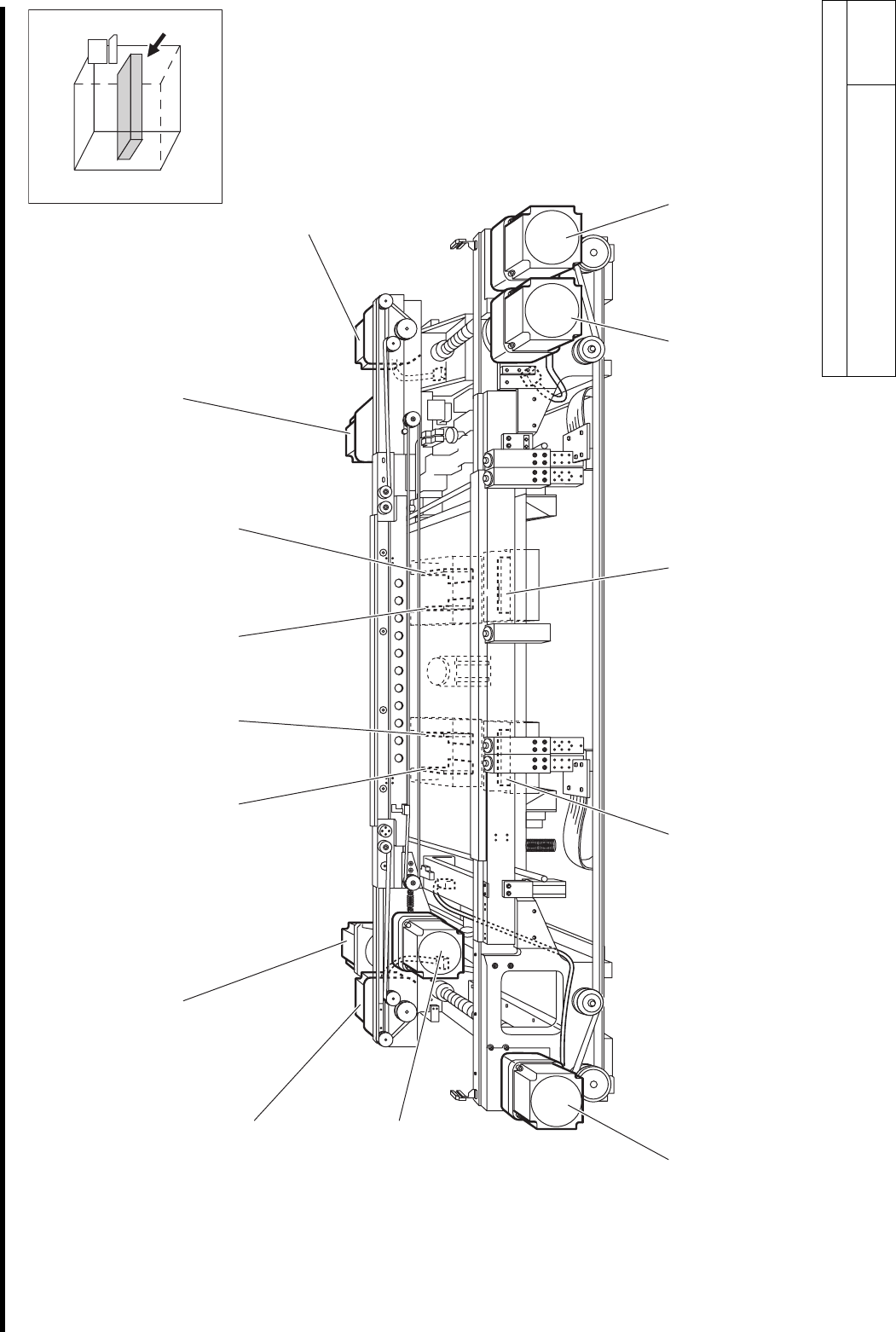

Transfer Unit Connector and Motor
LAF-10113-01
Transfer Unit Connector and Motor
SHEET
1/1
Transfer Unit Connector and Motor
CONVEYOR ADJUST MOTOR
C/V MOTOR 5
C/V MOTOR 3
DRV-CV5 DRV-CV3 DRV-CV2 DRV-CV1
CONVEYOR EJECT MOTOR
C/V MOTOR 1
C/V MOTOR 6 DRV-CV6 DRV-CV4 C/V MOTOR 2 C/V MOTOR 4

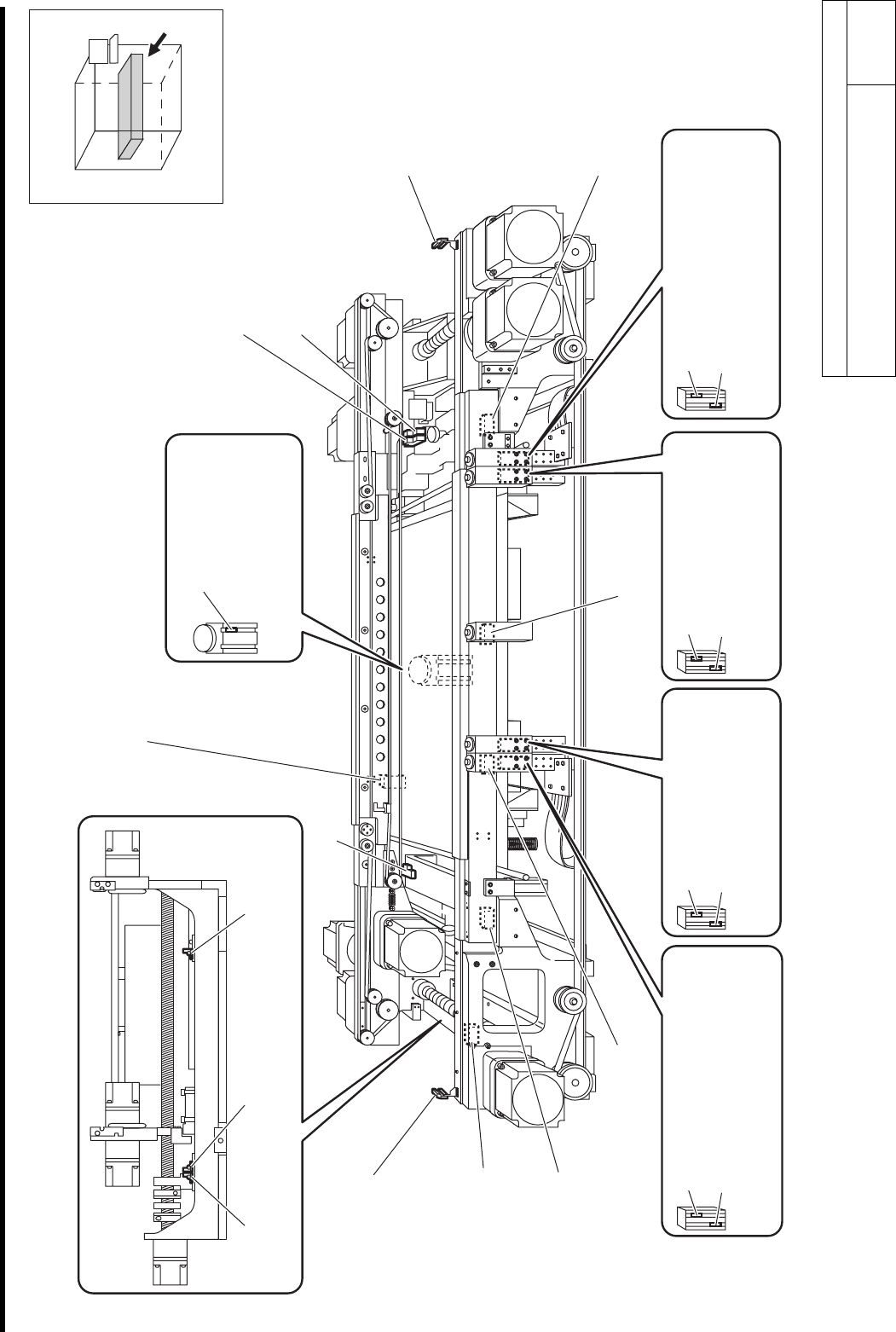

Transfer Unit Sensor
LAF-10114-01
Transfer Unit Sensor
SHEET
1/1
Transfer Unit Sensor
LS57L
PWB STOPPER UPPER-END
LS58L
PWB STOPPER LOWER-END
<Rear side>
LS59
LOCATE L UPPER-END
LS60
LOCATE L LOWER-END
<Rear side>
LS61
LOCATE R UPPER-END
LS62
LOCATE R LOWER-END
<Rear side>
LS57R
PWB STOPPER UPPER-END
LS58R
PWB STOPPER LOWER-END
<Rear side>
BS50
LOADING PWB
DETECT
BS54
UNLOADING PWB
DETECT
BS51
PWB WAITING
DETECT
BS53
PWB DETECT
BS52
PWB ARRIVAL
DETECT
BS118
PWB PASSAGE
DETECT
BS65
PWB SLOWING
DOWN DETECT
LS56
BACKUP PLATE
LOWER-END
LS55
BACKUP PLATE
UPPER-END
<Rear side>
A
D-CCW
A
D-ORG
A
D-CW
<Left side>
CE-ORG
CE-CCW
CE-CW

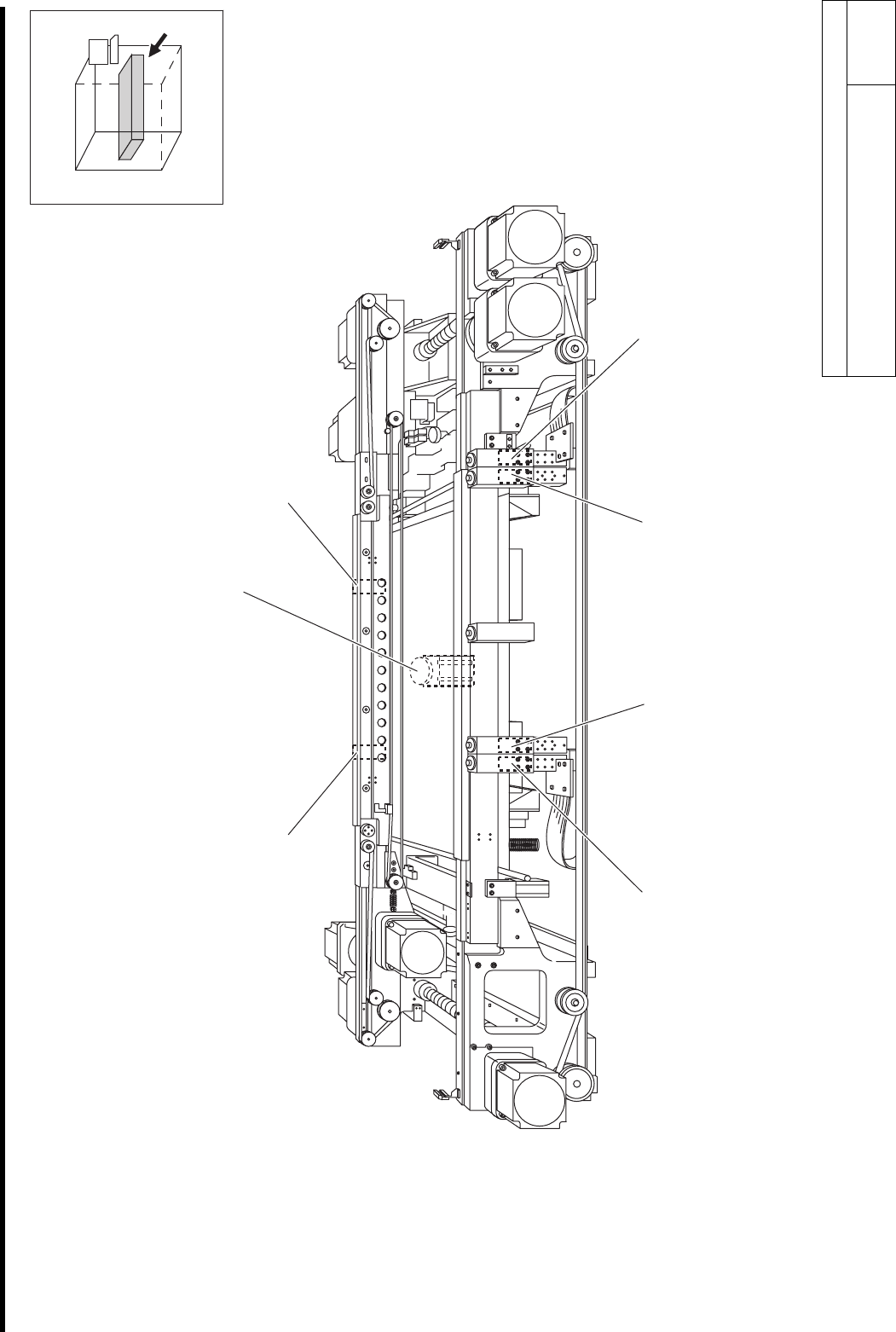

Transfer Unit Cylinder
LAF-10115-01
Transfer Unit Cylinder
SHEET
1/1
Transfer Unit Cylinder
PWB BACKUP CYLINDER
PWB STOPPER CYLINDER
(LÆR)
PWB STOPPER CYLINDER
(LÆR)
LOCATE PIN
CYLINDER
LOCATE PIN
CYLINDER
CLAMP CYLINDERCLAMP CYLINDER
