Jig List JGF-10101-01 Jig List SHEET 7/9 No. Jig name / Part s No. Outside appe arance Qty Uses Remarks 36 Cassette bank change r positioning jigs R and L 1 Adjustment of table mounti ng position L: 4-721-301-01 R: 4-721…
Jig List
JGF-10101-01
Jig List
SHEET
6/9
No. Jig name / Parts No. Outside appearance Qty Uses Remarks
30 Pressure gauge
1-520-535-12
1 Measurement of vacuum
31 Pickup point jig
A-8417-184-A
1 Pickup position setup
32 Nozzle phase adjusting jig
A-1082-420-A
1 Phase adjustment for nozzle
33 Phase adjusting jig
2-515-525-01
1 Phase adjustment for nozzle
34 Servo adjusting jig (1 set)
1 Adjustment of servo Box,
Reverse run cable,
232C cable
35 Cassette bank changer roller height
adjusting jig
4-721-587-01
1
Adjustment of cassette bank changer up
cylinder
Jig List
JGF-10101-01
Jig List
SHEET
7/9

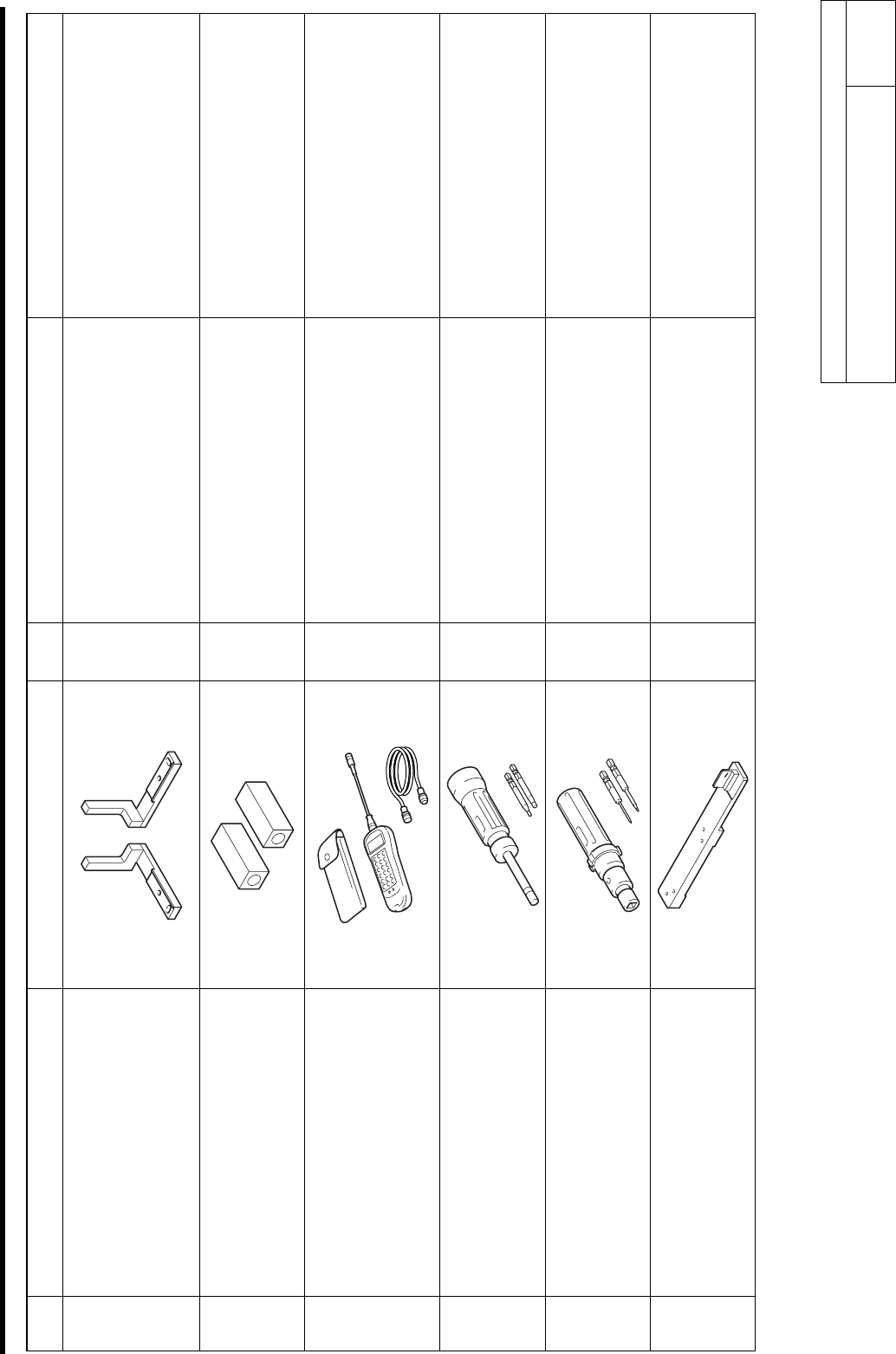

No. Jig name / Parts No. Outside appearance Qty Uses Remarks
36 Cassette bank changer positioning
jigs R and L
1 Adjustment of table mounting position L: 4-721-301-01
R: 4-721-301-11
37 Cassette bank changer adjusting
blocks
4-721-586-01
2 Measurement of table tilt
38 Tension meter
1-520-534-11
1 Measurement of each shaft belt tension U-505
39 Torque driver (N50LTDK)
1 Bit provided
40 Torque driver (PTD60CN)
1 Bit provided
41 Laser type shutter float sensor
adjusting jig (OPTION)
A-8417-189-A
1
Adjustment of laser type shutter float
sensor
Jig List
JGF-10101-01
Jig List
SHEET
8/9
No. Jig name / Parts No. Outside appearance Qty Uses Remarks
42 Thickness gauge
1 Calibration
43 U-nut wrench
2-515-522-01
1 Tightening of feed U-nut
44 Nozzle changing jig kit (option)
A-8417-461-A
1 Adjustment of nozzle change assembly
45 Part Abandonment conveyor jig
(OPTION)
A-8417-472-A
1 Part Abandonment conveyor setup Pin gauge : 4-722-336-01
Shaft : 4-722-335-01
46 Y axis bearing draw-out jig
2-186-544-01
1 Removal of Y axis ball bearing
47 Y axis bearing fixing jig
2-186-546-01
1 For fixing Y axis bearing
48 Y axis bearing support jig
2-186-545-01
1 Installation of Y axis ball bearing
