SI-F130 Service Manual
"Configuration Diagrams Contents"
SHEET
1/1
Contents
5-1 PC Unit
W-CPU BOARD........................................................................SDF-10101-01
V-CPU BOARD .........................................................................SDF-10102-01
RAID BOARD ...........................................................................SDF-10103-01
RAS BOARD.............................................................................SDF-10104-01
SY-MC BOARD.........................................................................SDF-10105-01
SERIAL DIO MASTER BOARD ................................................SDF-10106-01
RS-232C BOARD .....................................................................SDF-10107-01
MEMORY LINK BOARD (SLAVE) ............................................SDF-10108-01
MEMORY LINK BOARD (MASTER).........................................SDF-10109-01
HARD DISK DRIVE ..................................................................SDF-10110-01
5-2 Power Unit
POWER ON/OFF CONTROL BOARD II ..................................SDF-10201-01
5-3 Servo I/F Unit
SY-IF II BOARD........................................................................SDF-10301-01
5-4 Driver Unit
CONVEYOR ADJUST MOTOR DRIVER..................................SDF-10401-01
CONVEYOR EJECT MOTOR DRIVER ....................................SDF-10402-01
5-5 I/O Unit
LED CONTROL BOARD III ......................................................SDF-10501-01
CONVEYOR CONTROL BOARD III-A .....................................SDF-10502-01
EMG I/L BOARD II-A ................................................................SDF-10503-01
5-6 Others
HANDY CONSOLE CONTROL BOARD...................................SDF-10601-01
IF II-LS BOARD........................................................................SDF-10602-01
FLOPPY DISK DRIVE ..............................................................SDF-10603-01
FIXED CAMERA CONTROL UNIT ...........................................SDF-10604-01
PARTS CAMERA, BOARD CAMERA, PICK UP CAMERA
CONTROL UNIT .....................................................................SDF-10605-01
LCD I/F BOARD........................................................................SDF-10606-01
TOUCH PANEL I/F BOARD......................................................SDF-10607-01
DR1, DR2, DR3, DR4, DR5, DR6, DR7, DR8, DR9 .................SDF-10608-01
DW1, DW2, DW3, DW4, DW5, DW6, DW7 ..............................SDF-10609-01
W-CPU BOARD
SDF-10101-01
W-CPU BOARD
SHEET
1/1

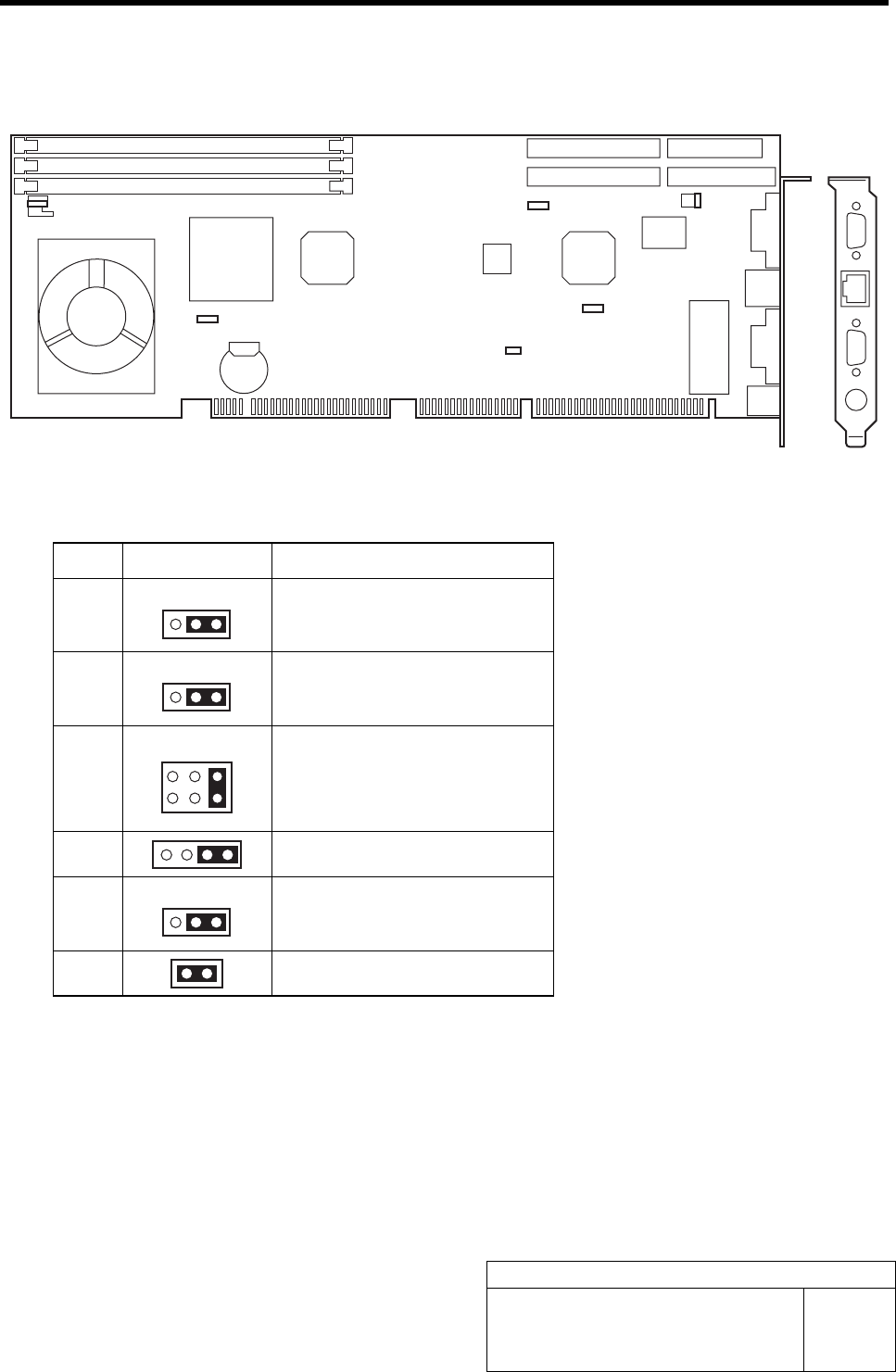

W-CPU BOARD
[Layout]
J2
J1
JUMPER
[Configuration]
Name Configuration Function
J1
Open: CMOS data retaining
Short: Return BIOS to shipping setting
J2
System-reset the WDT output
JUMPER
On board buzzer effective
V-CPU BOARD
SDF-10102-01
V-CPU BOARD
SHEET
1/1

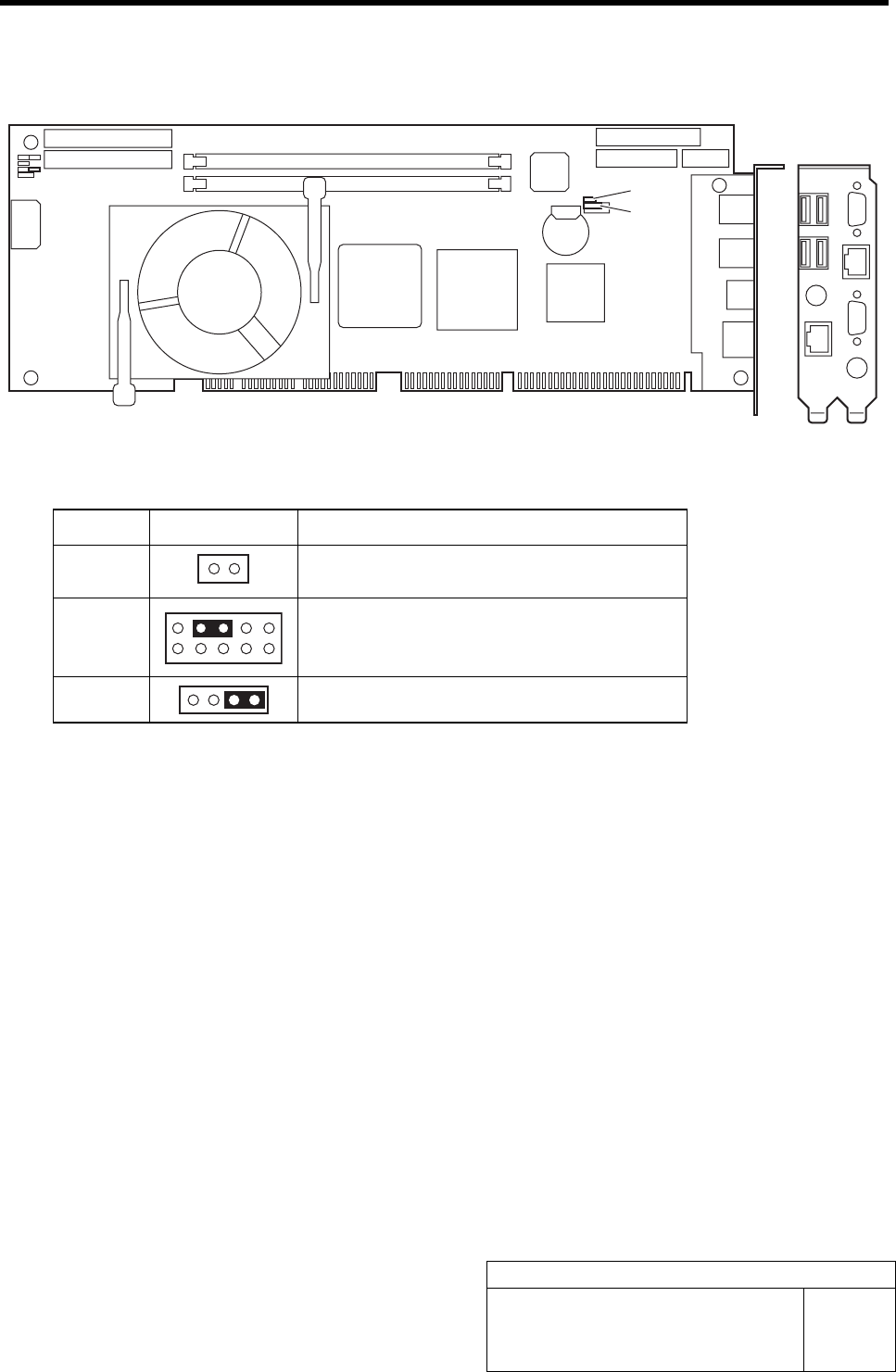

V-CPU BOARD
[Layout]
CN17
J1
J2
J3
DOC
2000
CN20
CN22
[Configuration]
Name Configuration Function
J1
3 2 1
CMOS data retaining
J2
1 2 3
System-rest the WDT output
J3
A B C
DOC2000
Address setting:E000h
(default:D000h)
CN17
On-board buzzer effective
CN20
1 2 3
ATX function off
CN22
Reserved (default close)
