How to Display Calibration Screen
HLF-10103-01
How to Display Calibration Screen
SHEET
3/3
When jig has been selected, a CALIBRATION screen
appears.
For machine setup and respective calibrations described
in the following pages, the respective operation screens
can be opened from this menu.
Two buttons of Fixed Camera Rcg Height button
and Fixed Camera Calibration button do not be-
come effective unless all calibrations from Ma-
chine Setup to Pickup Camera Calibration are
correctly completed.
RT Axis Origin Position Setup
HLF-10201-01
RT Axis Origin Position Setup
SHEET
1/5

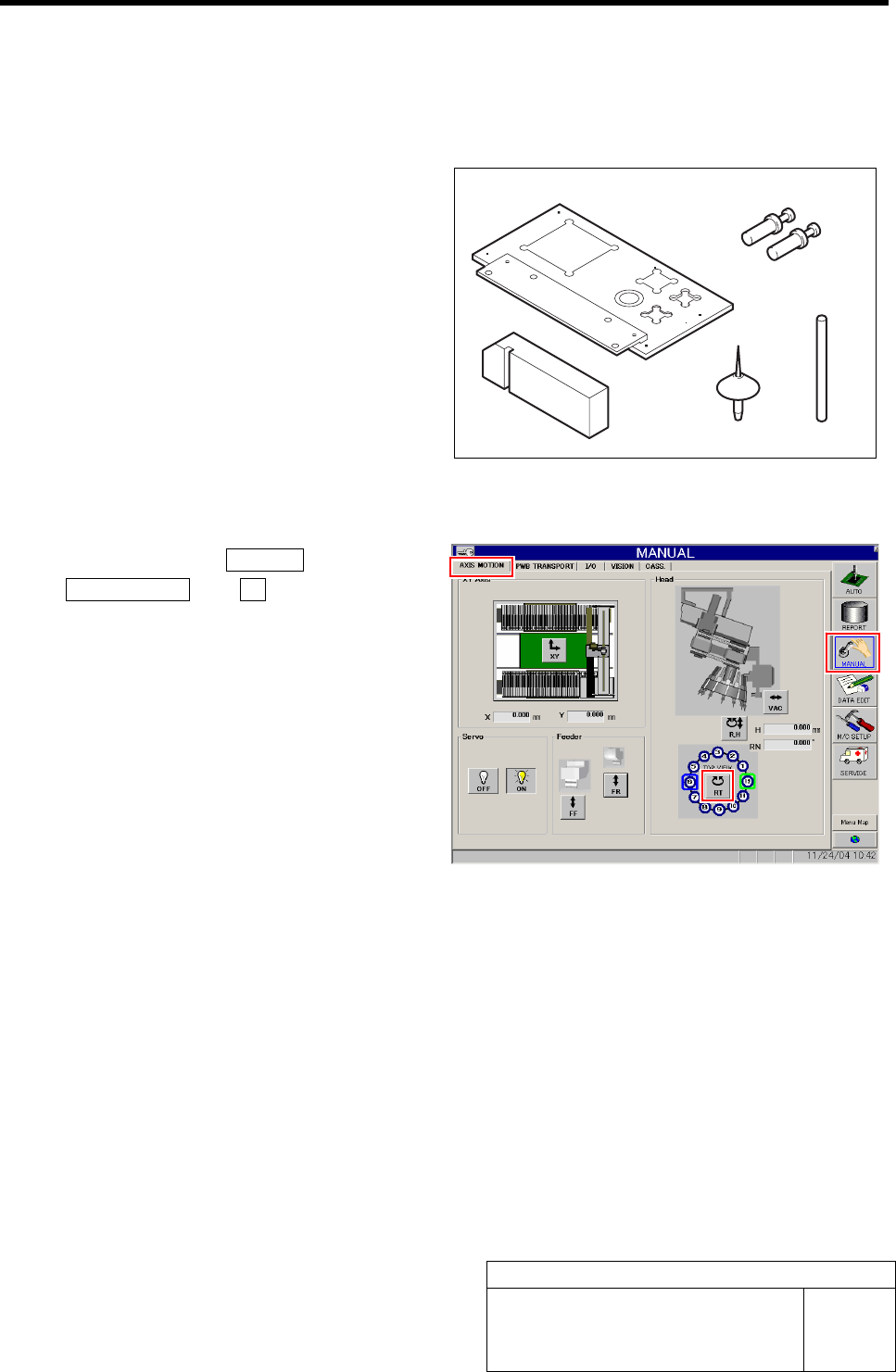

RT Axis Origin Position Setup
[Necessary jigs]
A Calibration plate jig
B Jig positioning pin
C Nozzle jig (AF06040)
D RT jig shaft
E RT jig block
[Procedure]
1 Click in an order of MANUAL menuÎ
AXIS MOTION tabÎRT button.
Turret RT Axis screen is displayed.
A
B
E
C D
RT Axis Origin Position Setup
HLF-10201-01
RT Axis Origin Position Setup
SHEET
2/5

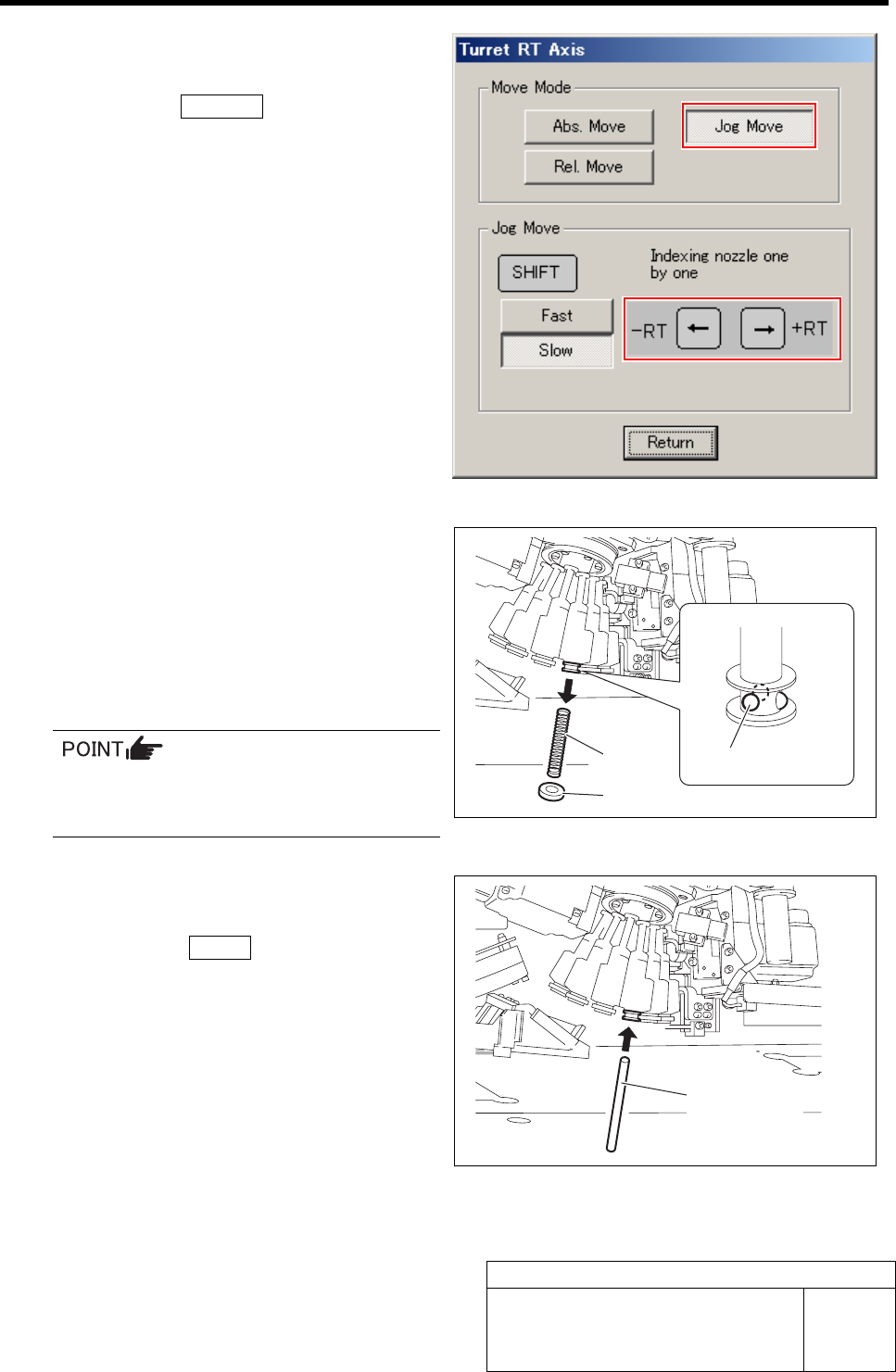

2 Install a nozzle jig (AF06040) to the turret
No.7.
1. Click the Jog Move button in the move
mode.
2. Press the cursor key on the left and
right to jog move the turret No.7 to-
ward you.
3. Slowly insert the nozzle jig (AF06040)
into the inner shaft of the turret No.7
while turning the nozzle.
4. Check that the nozzle is not drawn out
by pulling the nozzle downward.
3 Install the RT jig shaft to the turret No.1.
1. Press the cursor key on the left and
right to jog move the turret No.1 to-
ward you.
2. Remove in an order of O-ring, steel
balls (3 pieces) and spring from the
inner shaft of the turret No.1.
Because the steel balls are very small,
temporarily store them with care not to
lose.
3. Insert the RT jig shaft into the inner
shaft of the turret No.1.
4. Click the Return button to close the
Turret RT Axis screen.
O-ring
Spring
Steel ball
RT jig shaft
