MEMORY LINK BOARD (SLA VE) SDF-10108-01 MEMOR Y LINK BOARD (SLA V E) SHEET 1/1 MEMOR Y LINK BOARD (SLA VE) [Layout] RSW2 RSW1 SW1 LED RED [Configuration] Name Configuration Function SW1 ON OFF Bus connecti on ON/OFF LED …
RS-232C BOARD
SDF-10107-01
RS-232C BOARD
SHEET
1/1
RS-232C BOARD
[Layout]
RSW1
LED GREEN
[Configuration]
Name Configuration Function
RSW1
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
Board ID setting
MEMORY LINK BOARD (SLAVE)
SDF-10108-01
MEMORY LINK BOARD (SLAVE)
SHEET
1/1
MEMORY LINK BOARD (SLAVE)
[Layout]
RSW2
RSW1
SW1
LED RED
[Configuration]
Name Configuration Function
SW1
ON
OFF
Bus connection
ON/OFF
LED Light-up
Bus connection monitor LED
Bus connection: Light-up
Bus shut-off: Light-off
RSW1
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
Slave station No.
RSW2
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
Board ID setting

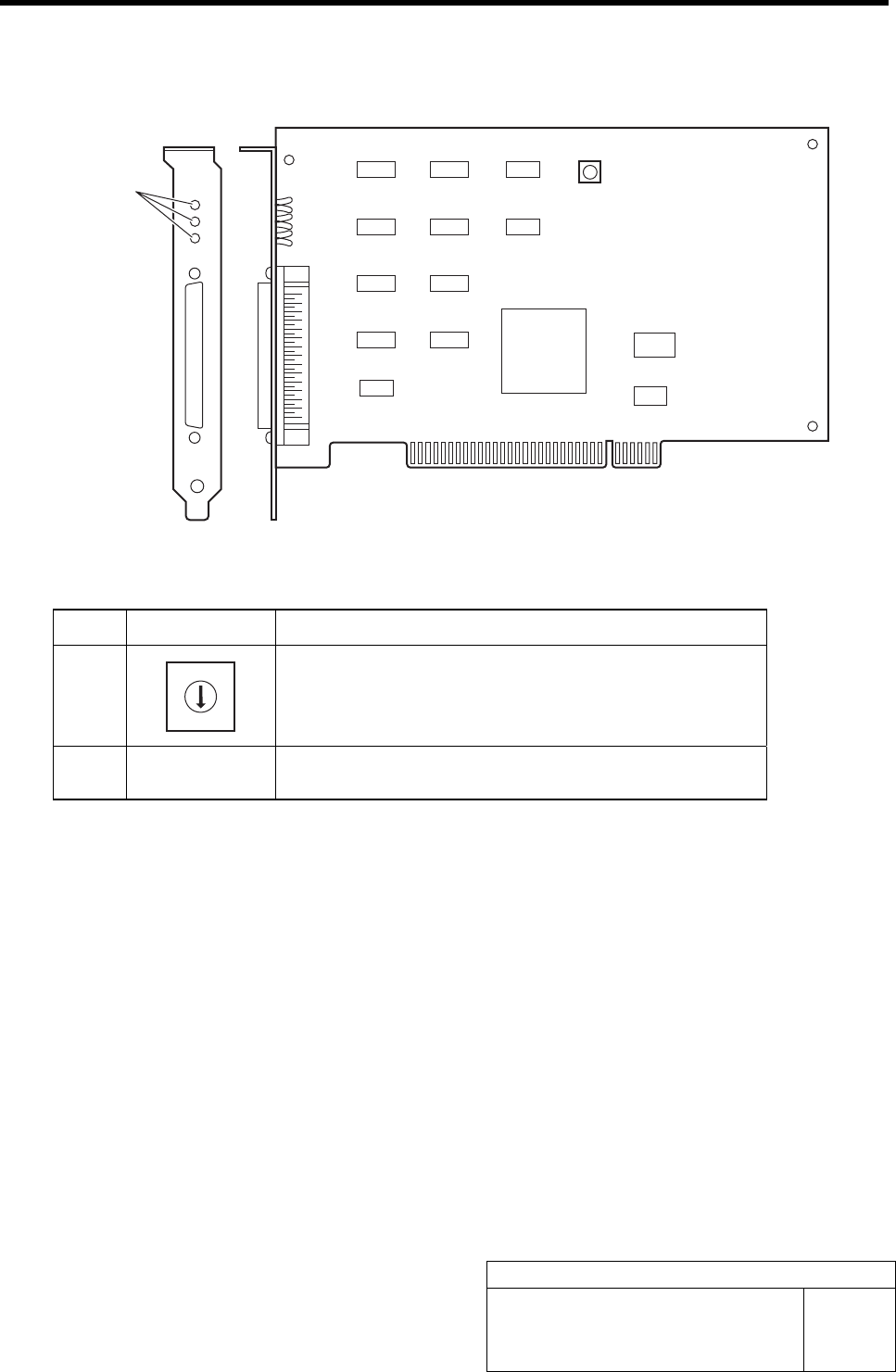

MEMORY LINK BOARD (MASTER)
SDF-10109-01
MEMORY LINK BOARD (MASTER)
SHEET
1/1
MEMORY LINK BOARD (MASTER)
[Layout]
RSW1
LED RED
[Configuration]
Name Configuration Function
RSW1
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
Board ID setting
LED Light-off
Slave station state monitor LED
(If slave station is one sheet, all of three do not light up)
