Adjustment of Plunger Upper/Lower Backward Detect Sensor
HLF-10416-01
Adjustment of Plunger Upper/Lower
Backward Detect Sensor
SHEET
2/2
4 Check the LED lighting-on state of the plunger return sensor (Upper/Lower).
1. Press in the mechanical valve.
2. Pull out the plunger by hand, and pinch a thickness gauge of t=1.2 mm between the plunger
and the mechanical valve.
3. Check that the LED for the plunger return sensor lights up in this state.
<Thickness of thickness gauge and state of sensor LED>
Thickness of thickness gauge State of LED for plunger return
sensor
1.0 mm Extinguish
1.2 mm Lights-up
Non (Origin position) Lights-up

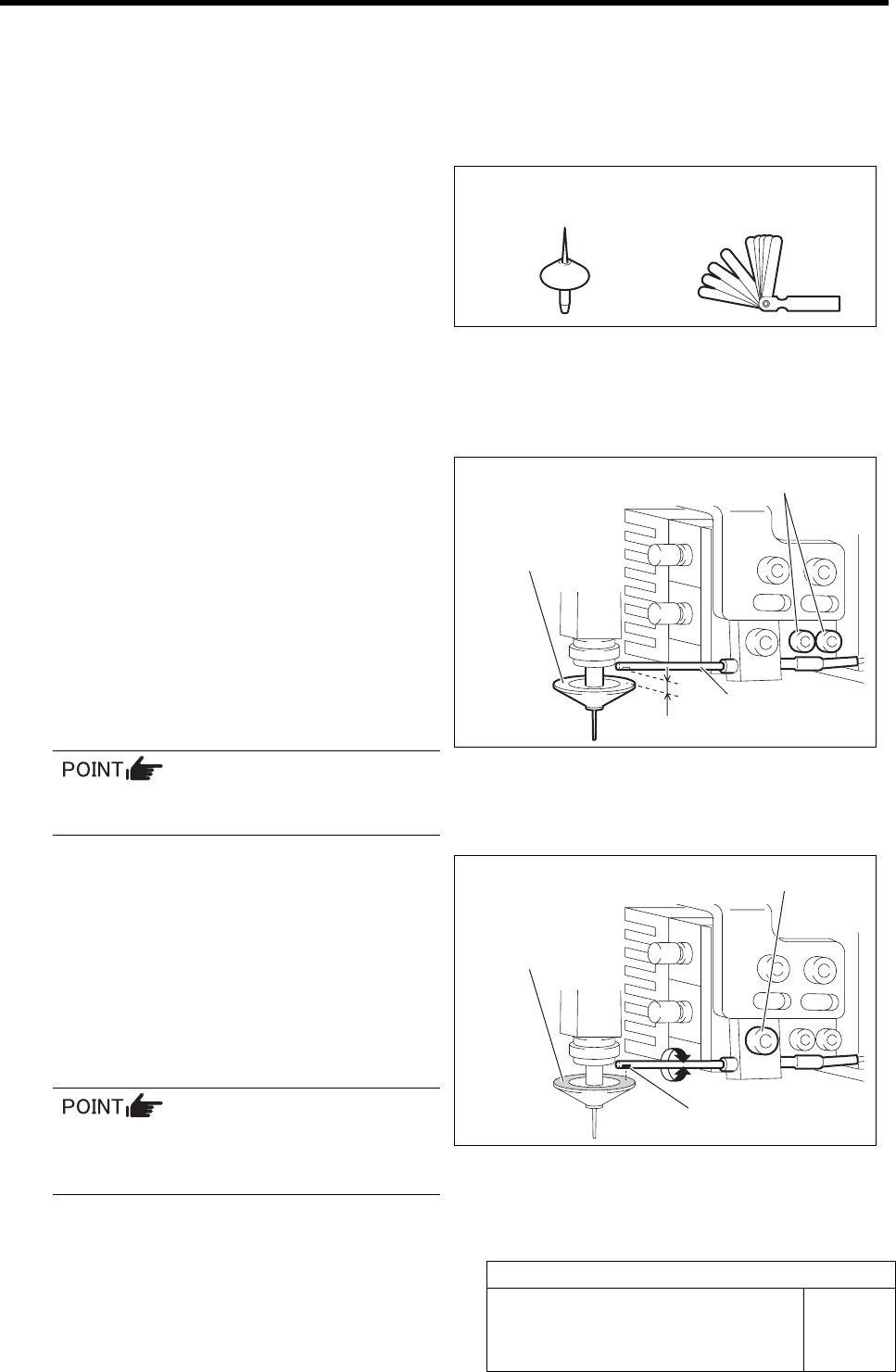

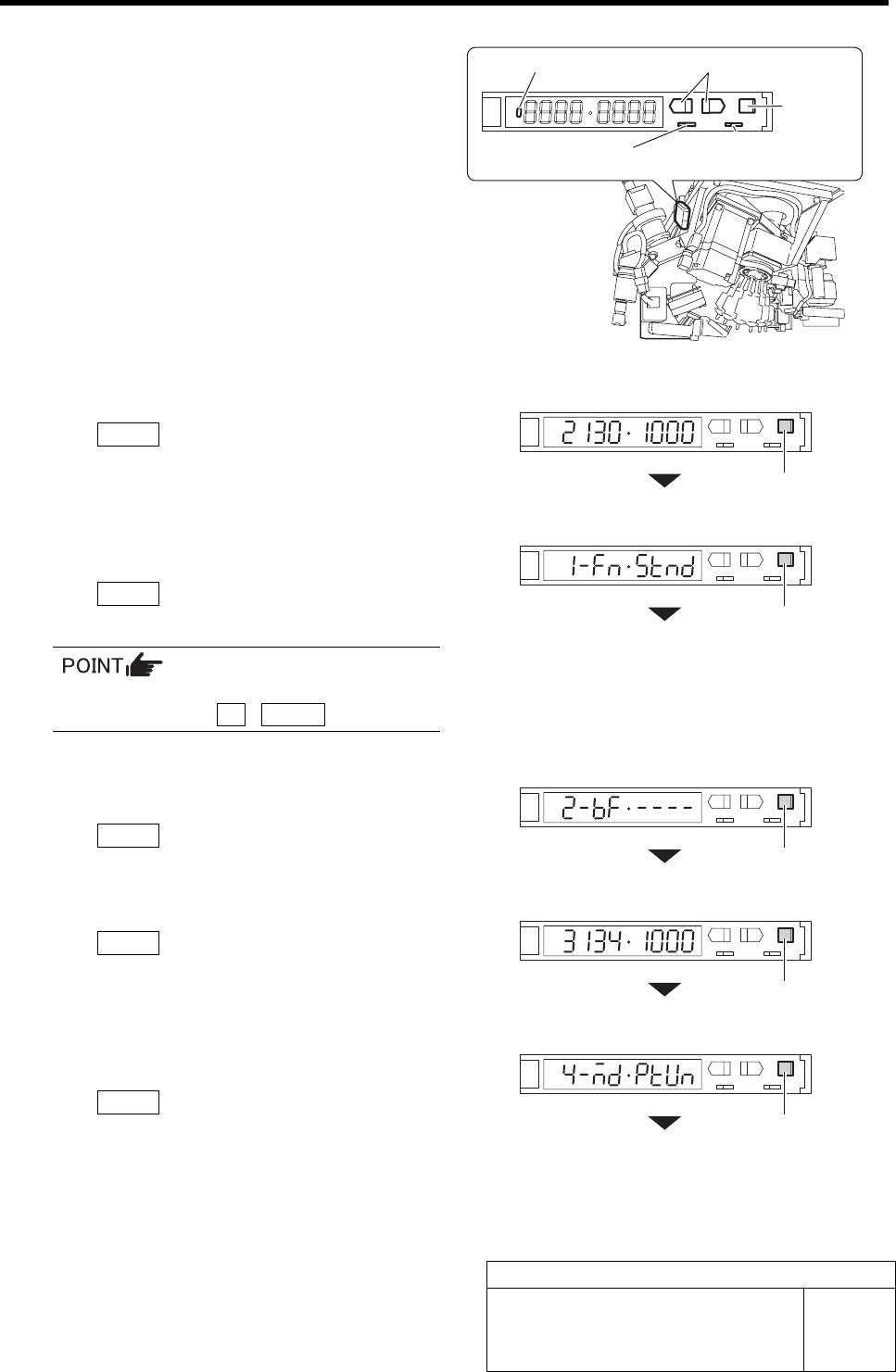

Nozzle Omission Detection Sensor Position Adjustment
HLF-10417-01
Nozzle Omission Detection Sensor
Position Adjustment
SHEET
1/4
Nozzle Omission Detection Sensor Position Adjustment
[Necessary jigs]
• Nozzle jig (AF06040)
• Thickness gauge (t=1.0 mm)
[Procedure]
1 Install the nozzle jig (AF06040) to the turret
No.1.
2 Adjust the clearance between the nozzle
omission detection sensor and the upper
face of the nozzle reflector to 1.0 mm.
1. Loosen the cap screw for the nozzle
omission detection sensor.
2. Adjust with thickness gauge so that
clearance between the end of the noz-
zle omission detection sensor and the
upper face of the reflector is 1.0 mm.
3. Tighten the cap screw.
Fiber sensor is used in the nozzle omission
detection sensor.
3 Adjust the optical axis of the nozzle omission
detection sensor.
1. Loosen the split fastening screw fixing
the nozzle omission detection sensor.
2. Turn the nozzle omission detection
sensor to adjust so that the sensor lu-
minescence part is directed to reflector
plane of the nozzle jig (AF06040).
Optical axis can be easily adjusted by
slightly widening the split fastening part
of the bracket using flat end screwdriver.
3. Tighten the split fastening screw.
Nozzle jig (AF06040)
Thickness gauge
Cap screw
Nozzle omission
detection sensor
1.0 mm
Nozzle jig
(AF06040)
Reflector plane part
Split fastening screw
Sensor luminescence part
Nozzle Omission Detection Sensor Position Adjustment
HLF-10417-01
Nozzle Omission Detection Sensor
Position Adjustment
SHEET
2/4
4 Set the nozzle omission detection sensor
amplifier mounted on the side of the head.
1. Turn the SET/RUN selector switch to
the “SET” side.
“Teaching” window appears, and present light
receiving value/threshold value are displayed.
2. On “Teaching” display, press the
MODE button to change the display
without doing anything.
Changes to the “1. Detecting function”.
3. Set the “1. Detecting function” to the
“Std (standard setting)” and press the
MODE button.
Changes to the “2. Timer function”.
To change the selecting items on each set
display, press the UP / DOWN button.
4. Set the “2. Timer function” to “------
(timer ineffective)” and press the
MODE button.
Changes to the “3. Display change” display.
5. On the “3. Display change”, press the
MODE button without doing anything.
Changes to the “4. MODE setting”.
6. Set the “4. MODE setting” to “(Power
tuning execution)” and press the
MODE button.
Changes to the “5. Power tuning target value”
display.
ON/OFF dis
p
la
y
p
art
MODE
button
SET/RUN selector switch
Operation mode
se
l
ecto
r
s
wi
tc
h
MODE button
MODE button
MODE button
MODE button
MODE button
UP/DOWN button
