Jig List
JGF-10101-01
Jig List
SHEET
1/9
Jig List
No. Jig name / Parts No. Outside appearance Qty Uses Remarks
1 Calibration plate jig (1 set)
(Calib.ini data provided)
2-592-330-01
1 Calibration
Fixed camera retaining plate (1)
4-721-276-01
Fixed camera retaining plate (2)
4-721-277-01
Retaining plate positioning pin
4-721-288-01
2 Locating pin positioning jig
A-8417-278-A
1 Positioning of locating pin
3 Jig positioning pin
A-8417-273-A
2 Positioning of calibration plate
locating pin
4 Part camera positioning pin
2
Adjustment of part camera mounting
position
Parallel pin (Misumi, MSTH5-30)
2-C3 x 40
5 RT jig block and jig shaft
1 Adjustment of RT-axis origin position Block : 4-721-268-01
Shaft : 4-721-269-01
6 Bearing draw-out jig
A-1087-544-A
1 Drawing out bearing for turret head. Collect: 2-515-560-01
Collect pin: 2-515-561-01
Jig List
JGF-10101-01
Jig List
SHEET
2/9
No. Jig name / Parts No. Outside appearance Qty Uses Remarks
7 Nozzle jig (AF06040)
X-4700-419-2
2 RT-axis origin position setup
PWB camera setup
Adjustment of blow flow rate, others
8 H axis sensor adjusting jig
15.5
15
1
Adjustment of H axis lower limit sensor
position
15.5 mm : 4-721-284-01
15.0 mm : 4-721-284-11
9 Feed adjusting jig
A-8417-280-A
1
Adjustment of FF/FR axis feed roller
Y-direction position
Adjustment of FF/FR axis feed roller
X-direction position
Adjustment of FF/FR axis feed roller
height
Position adjustment for FF/FR axis feeder
backward detect sensor
Adjustment of FF/FR axis feed roller
origin sensor dog
Adjustment of cassette float sensor
height
10 Part feed height jig
4-721-291-01
1
Adjustment of FF/FR axis feed roller
height
Position adjustment for FF/FR axis feeder
backward detect sensor
Adjustment of FF/FR axis feed roller
origin sensor dog
Jig List
JGF-10101-01
Jig List
SHEET
3/9
No. Jig name / Parts No. Outside appearance Qty Uses Remarks
11 F axis return block
2-587-736-01
20.6
20.1
1
Position adjustment for FF/FR axis feeder
backward detect sensor
12 Cassette float sensor adjusting jig
5
6
1
Adjustment of cassette float sensor
position
13 Bulk cassette jig
1 Adjustment of bulk cassette mechanism
14 Tension block jig
4-721-285-01
1 Adjustment of F axis belt tension 2-C3 x 14,
C4 x 15
15 Reference jig nozzle
4-721-271-01
1 Acquiring mounting stroke setup
Pickup camera calibration
Fixed camera Rcg height calibration
Pickup position setup
16 Pickup inspection camera calibration
jig
4-721-279-01
1 Pickup camera calibration

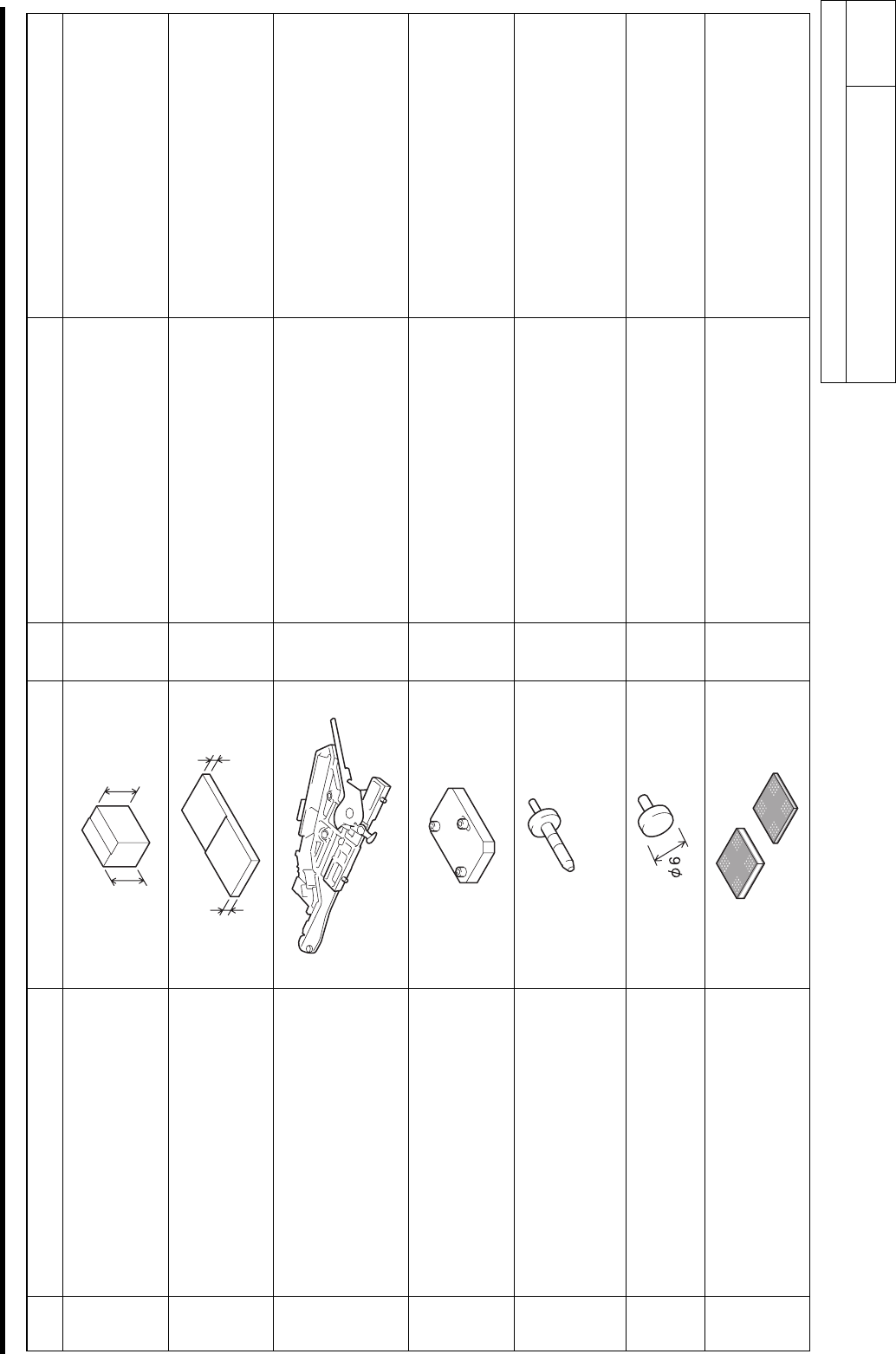

17 Jig chip (t=3.4, 1.4)
1 Parts camera calibration Jig chip (1) Ass’y (t=3.4 mm):
X-2055-168-1
Jig chip (2) Ass’y (t=1.4 mm):
X-2055-169-1
