Jig List JGF-10101-01 Jig List SHEET 1/9 Jig List No. Jig name / Part s No. Outside appe arance Qty Uses Remarks 1 Calibration plate jig (1 set) (Calib.ini data provided) 2-592-330-01 1 Calibration Fixed camera retaining…
CLF-10101-01
SI-F130 Service Manual
“Jig List Contents”
SHEET
1/1
Contents
6 Jig List
Jig List ......................................................................................JGF-10101-01
Jig List
JGF-10101-01
Jig List
SHEET
1/9

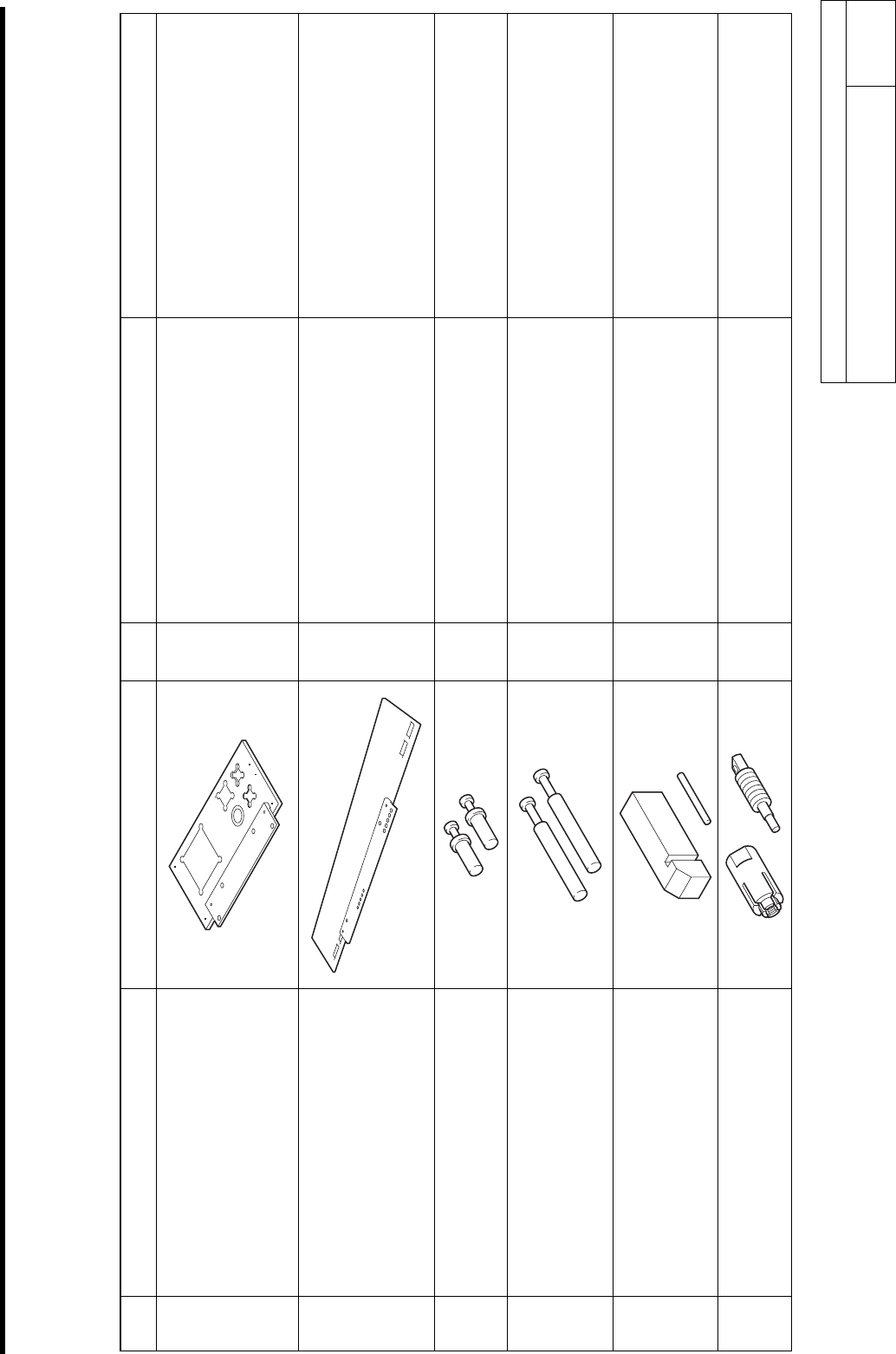

Jig List
No. Jig name / Parts No. Outside appearance Qty Uses Remarks
1 Calibration plate jig (1 set)
(Calib.ini data provided)
2-592-330-01
1 Calibration
Fixed camera retaining plate (1)
4-721-276-01
Fixed camera retaining plate (2)
4-721-277-01
Retaining plate positioning pin
4-721-288-01
2 Locating pin positioning jig
A-8417-278-A
1 Positioning of locating pin
3 Jig positioning pin
A-8417-273-A
2 Positioning of calibration plate
locating pin
4 Part camera positioning pin
2
Adjustment of part camera mounting
position
Parallel pin (Misumi, MSTH5-30)
2-C3 x 40
5 RT jig block and jig shaft
1 Adjustment of RT-axis origin position Block : 4-721-268-01
Shaft : 4-721-269-01
6 Bearing draw-out jig
A-1087-544-A
1 Drawing out bearing for turret head. Collect: 2-515-560-01
Collect pin: 2-515-561-01
Jig List
JGF-10101-01
Jig List
SHEET
2/9

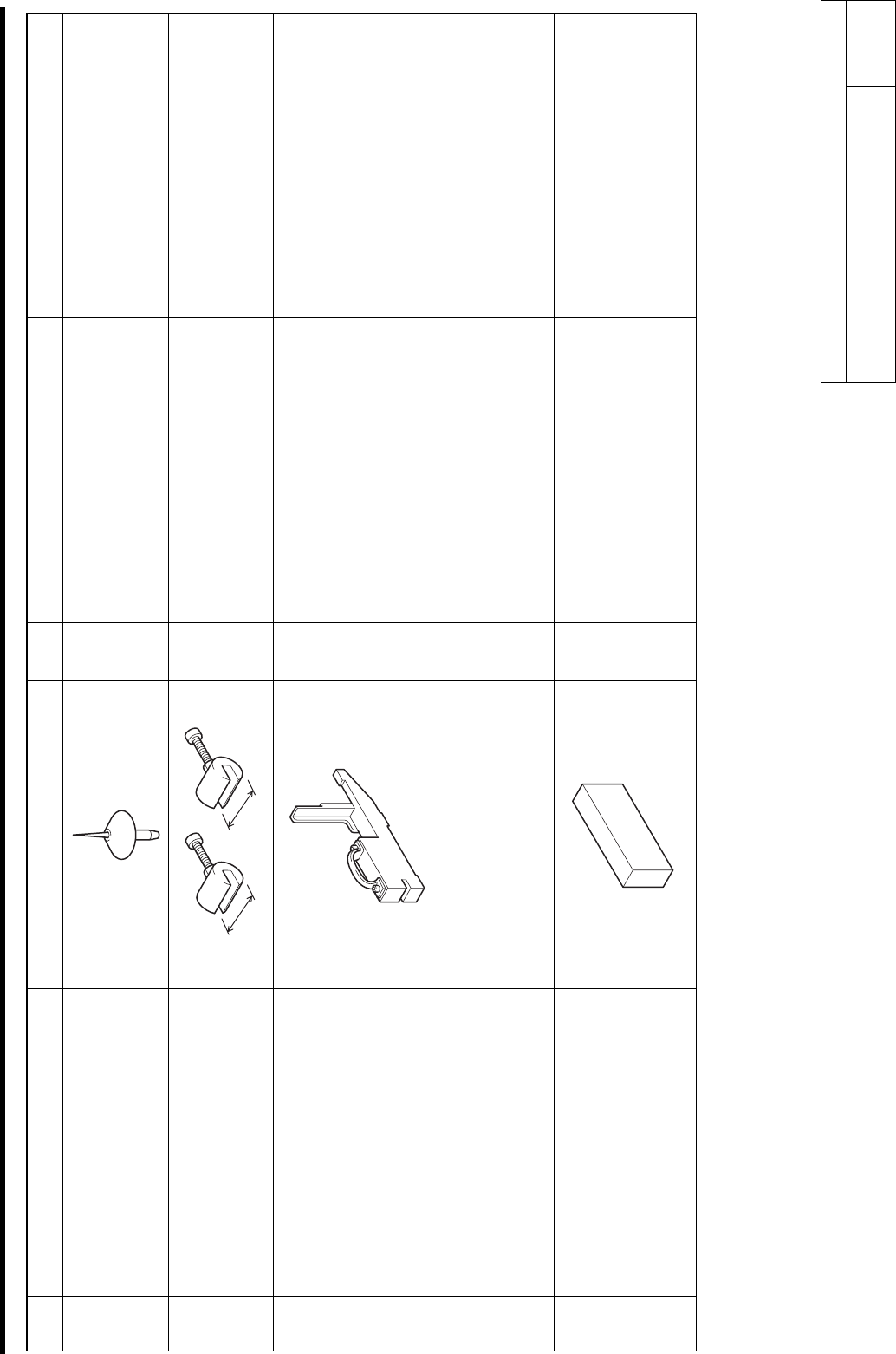

No. Jig name / Parts No. Outside appearance Qty Uses Remarks
7 Nozzle jig (AF06040)
X-4700-419-2
2 RT-axis origin position setup
PWB camera setup
Adjustment of blow flow rate, others
8 H axis sensor adjusting jig
15.5
15
1
Adjustment of H axis lower limit sensor
position
15.5 mm : 4-721-284-01
15.0 mm : 4-721-284-11
9 Feed adjusting jig
A-8417-280-A
1
Adjustment of FF/FR axis feed roller
Y-direction position
Adjustment of FF/FR axis feed roller
X-direction position
Adjustment of FF/FR axis feed roller
height
Position adjustment for FF/FR axis feeder
backward detect sensor
Adjustment of FF/FR axis feed roller
origin sensor dog
Adjustment of cassette float sensor
height
10 Part feed height jig
4-721-291-01
1
Adjustment of FF/FR axis feed roller
height
Position adjustment for FF/FR axis feeder
backward detect sensor
Adjustment of FF/FR axis feed roller
origin sensor dog
