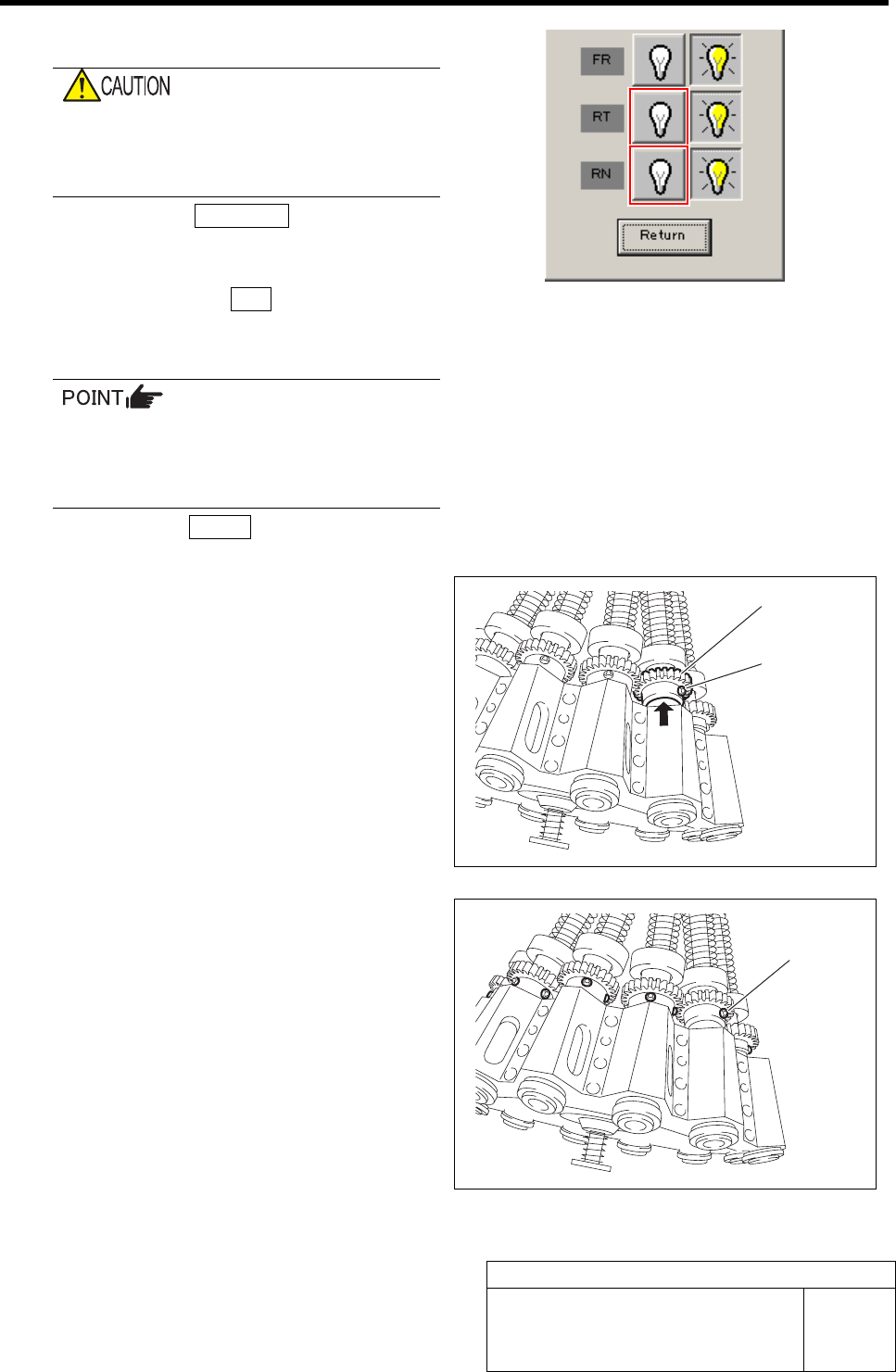

Phase Adjustment for Nozzle
HLF-10418-01
Phase Adjustment for Nozzle
SHEET
3/8
5 Move the turret No.1 to the front.
1. Click the RT button on the Axis
MOTION screen.
Turret RT Axis screen is displayed.
2. Click the Jog Move button.
3. Press the left and right cursor key to
move the turret No.1 to the front.
Click the Return button to close the Turret RT
Axis screen.
6 Turn off the RN, RT servos.
If working is carried out without turning off
the servo, hand or fingers may be caught in
the small gear. Be sure to turn OFF the
servo before working.
1. Click in an order of M/C SETUP
menuÎORG OFFSET tabÎIndv. Axis
button.
Indv. Axis servo screen is displayed.
2. Click the servo OFF button for RT and
RN.
Servo for RT, RN is turned off.
When servo is turned off, the button may
respond slowly. Securely click the button
to check that the indication changes to
indication of button being pressed.
3. Click the Return button to close the
Indv. Axis servo screen.
Phase Adjustment for Nozzle
HLF-10418-01
Phase Adjustment for Nozzle
SHEET
4/8
7 Loosen 2 screws for the small gear on the
turret No.1.
8 Perform origin position return of the RT axis.
1. Click the Indv. Axis button on the
ORG OFFSET screen to open the Indv.
Axis Servo screen.
2. Click the servo ON button for RT and
RN to turn on the servo.
3. Click the Return button to close the
Indv. Axis servo screen.
4. Click the RT button on the ORG
OFFSET screen.
RT Axis screen is displayed.
5. Press the ORG button on the operation panel with the RT Axis screen being displayed.
Origin position return of the RT axis is performed.
9 Move the turret No.1 to the front.
1. Click the Jog Move button for RT Axis
screen.
2. Click the check box for index.
3. Press the left and right cursor key to
move the turret No.1 to the front.
4. Click the Return button to close the
RT Axis screen.
Screw
Phase Adjustment for Nozzle
HLF-10418-01
Phase Adjustment for Nozzle
SHEET
5/8
10 Turn off the RN, RT servos.
If working is carried out without turning off
the servo, hand or fingers may be caught in
the small gear. Be sure to turn OFF the
servo before working.
1. Click the Indv. Axis button on the
ORG OFFSET screen to display the
Indv. Axis Servo screen.
2. Click the servo OFF button for RT and
RN.
Servo for RT, RN is turned off.
When servo is turned off, the button may
respond slowly. Securely click the button
to check that the indication changes to
indication of button being pressed.
3. Click the Return button to close the
Indiv. Axis servo screen.
11 Temporarily tighten the left side screw for the
small gear.
1. Direct the left side screw among the
two screws for the small gear to the
outside of the head.
2. Temporarily tighten the left side screw
while pushing the small gear upward.
12 Loosen the screws for all of the small gear
on the turrets No.2 to 12.
Screw
Left side
screw
Small gear
