RT Axis Origin Position Setup

HLF-10201-01

RT Axis Origin Position Setup

SHEET

5/5

If the discrepancy of the nozzle jig (AF06040) is excessive in the PARTS DISPLAY, check

whether the pin can enter the camera bracket.

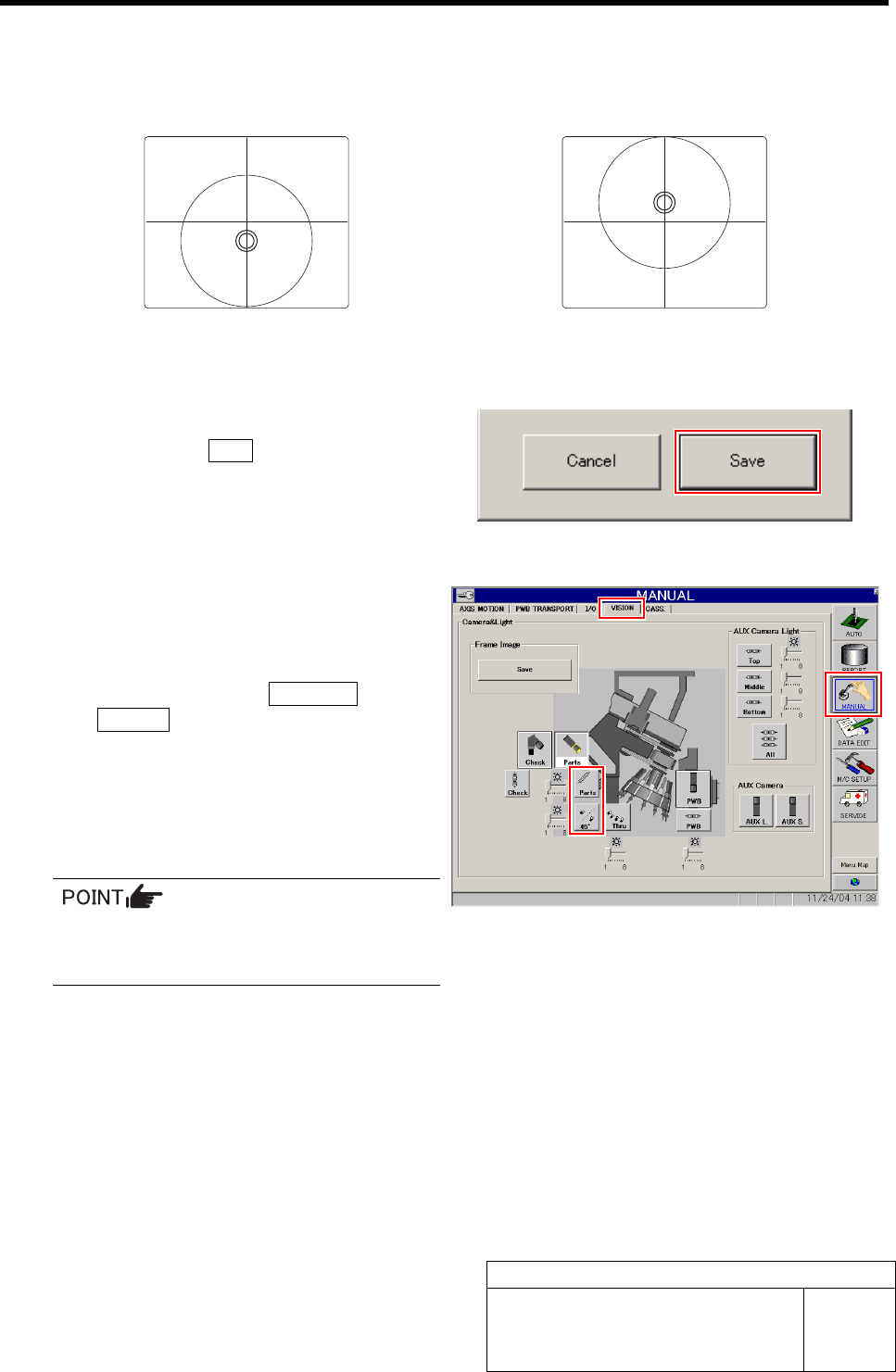

If the pin enters for camera bracket but the cross hairs fail to enter the outside diameter of the

nozzle, adjust with a spacer as shown in figures below.

If the nozzle deviates below the cross hairs,

insert a spacer.

If the nozzle deviates above the cross hairs, re-

move a spacer.

10 When position of the RT jig shaft is deter-

mined, click the Save button while holding

the RT axis by hand so that it does not

move.

The present position is saved and the RT Axis Home

screen closes.

11 Check that the cross hairs enter the outside

diameter of the nozzle jig (AF06040) in the

PARTS DISPLAY of the VISION screen.

1. Click in an order of MANUAL menuÎ

VISION tab.

2. Click the LED button for parts camera

to light the LED.

3. Check that the cross hairs are within

the outside diameter of the nozzle jig

(AF06040).

If image on PARTS DISPLAY can be

hardly seen, adjust brightness with

brightness slider of the LED.

12 Remove the jig and install spring, steel balls and O-ring to the inner shaft.

H Axis Origin Position Setup

HLF-10202-01

H Axis Origin Position Setup

SHEET

1/2

H Axis Origin Position Setup

[Necessary jigs]

• Do not use jig.

[Procedure]

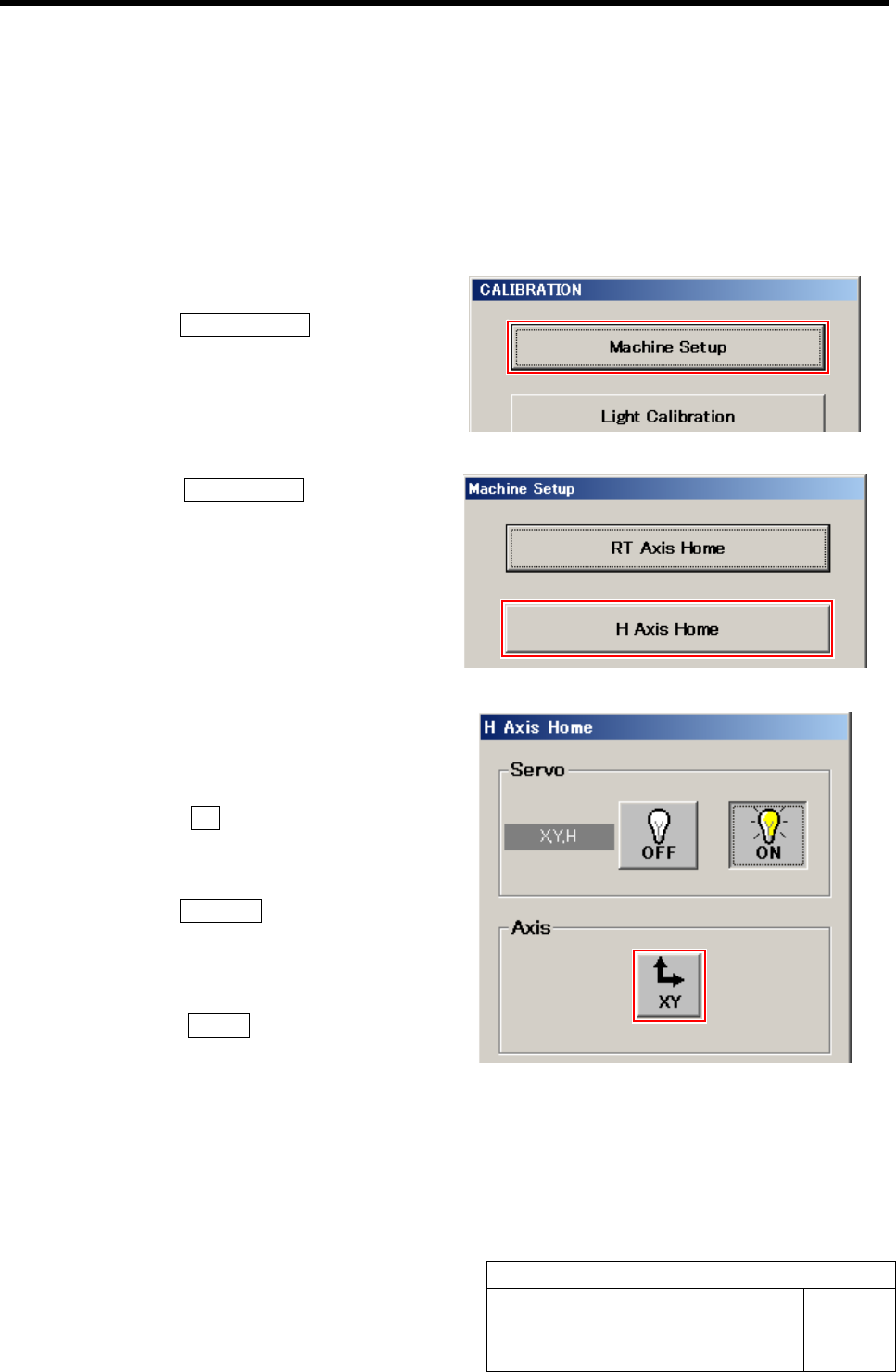

1 Display H Axis Home screen.

1. Click the Machine Setup button on the

CALIBRATION screen.

Machine Setup screen is displayed.

2. Click the H Axis Home button on the

Machine Setup screen.

H Axis Home screen is displayed.

2 Move the head unit to a position where

working is easily performed (center toward

you).

1. Click the XY button on the H Axis

Home screen.

XY Axis screen is displayed.

2. Click the Jog Move button.

3. Press the cursor key to jog move the

head unit to a position of center to-

ward you.

4. Click the Return button to return to

the H Axis Home screen.

H Axis Origin Position Setup

HLF-10202-01

H Axis Origin Position Setup

SHEET

2/2

3 Click the Setup Start button.

“Press [START] to move to index 1” is displayed on

the message screen.

4 Press the START button on the operation

panel.

The inner shaft of the turret No.1 moves to directly

under the H axis pusher.

5 Set up H Axis Origin Position.

1. Support the inner shaft lower side by

hand.

2. Check that pushing lever is placed on

upper side of H axis.

3. Press the START button on the opera-

tion panel.

4. Release hand supporting the inner

shaft.

H axis origin position is automatically set up, RT axis

rotates and inner shaft for the next turret No. moves to

directly under the H axis pusher.

When the RT axis automatically rotates, fin-

ger or hand may be caught.

After pressing the START button, release

hand supporting the inner shaft lower side.

6 Repeat working of the procedure 5 up to No.12.

7 Click the Save button.

The H axis origin position is saved and H Axis Home

screen closes.

Lower inner shaft

Pushing lever
