Pickup Camera Calibration
HLF-10311-01
Pickup Camera Calibration
SHEET
3/5
7 Press the START button on the operation
panel.
Length reference nozzle jig picks up the pickup in-
spection camera calibration jig, and measurement is
performed.
The measurement result is displayed on the HEIGHT
DISPLAY as an image.
”Press [START] to move to nozzle installing position”
is displayed on the message screen.
8 Press the START button on the operation
panel.
The turret No.1 moves to the nozzle installing position
and “Remove the jig” is displayed on the message
screen.
9 Remove the pickup inspection camera cali-
bration jig from the nozzle and press the
ORG button on the operation panel.
Origin position return is performed and “Install jig
onto plate” is displayed on the message screen.
10 Again set the pickup inspection camera calibra-
tion jig onto the calibration plate jig and press
the START button on the operation panel.
Length reference nozzle jig moves to the measuring
position and “Press [START] to start nozzle meas-
urement” is displayed on the message screen.
Pickup Camera Calibration
HLF-10311-01
Pickup Camera Calibration
SHEET
4/5

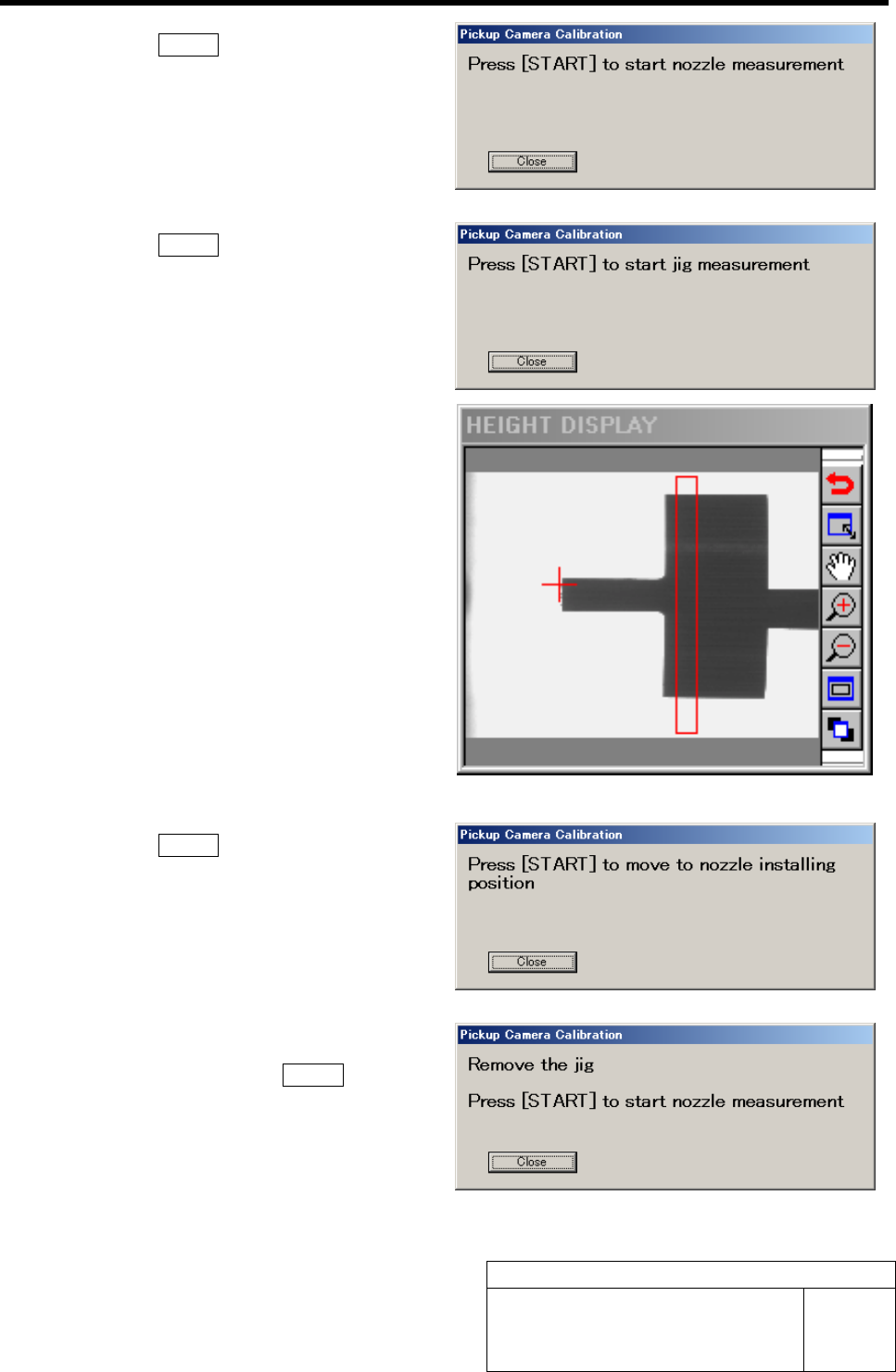

11 Press the START button on the operation
panel.
Length reference nozzle jig measurement is per-
formed and “Press [START] to start jig measurement”
is displayed on the message screen.
12 Press the START button on the operation
panel.
Length reference nozzle jig picks up the pickup in-
spection camera calibration jig, and measurement is
performed.
The measurement result is displayed on the HEIGHT
DISPLAY as an image.
”Press [START] to move to nozzle installing position”
is displayed on the message screen.
13 Press the START button on the operation
panel.
The turret No.1 moves to the nozzle installing position
and “Remove the jig” is displayed on the message
screen.
14 Remove the pickup inspection camera cali-
bration jig and press the START button on
the operation panel.
Length reference nozzle jig measurement is per-
formed and ”Press [START] to move to nozzle in-
stalling position” is displayed on the message screen.
Pickup Camera Calibration
HLF-10311-01
Pickup Camera Calibration
SHEET
5/5

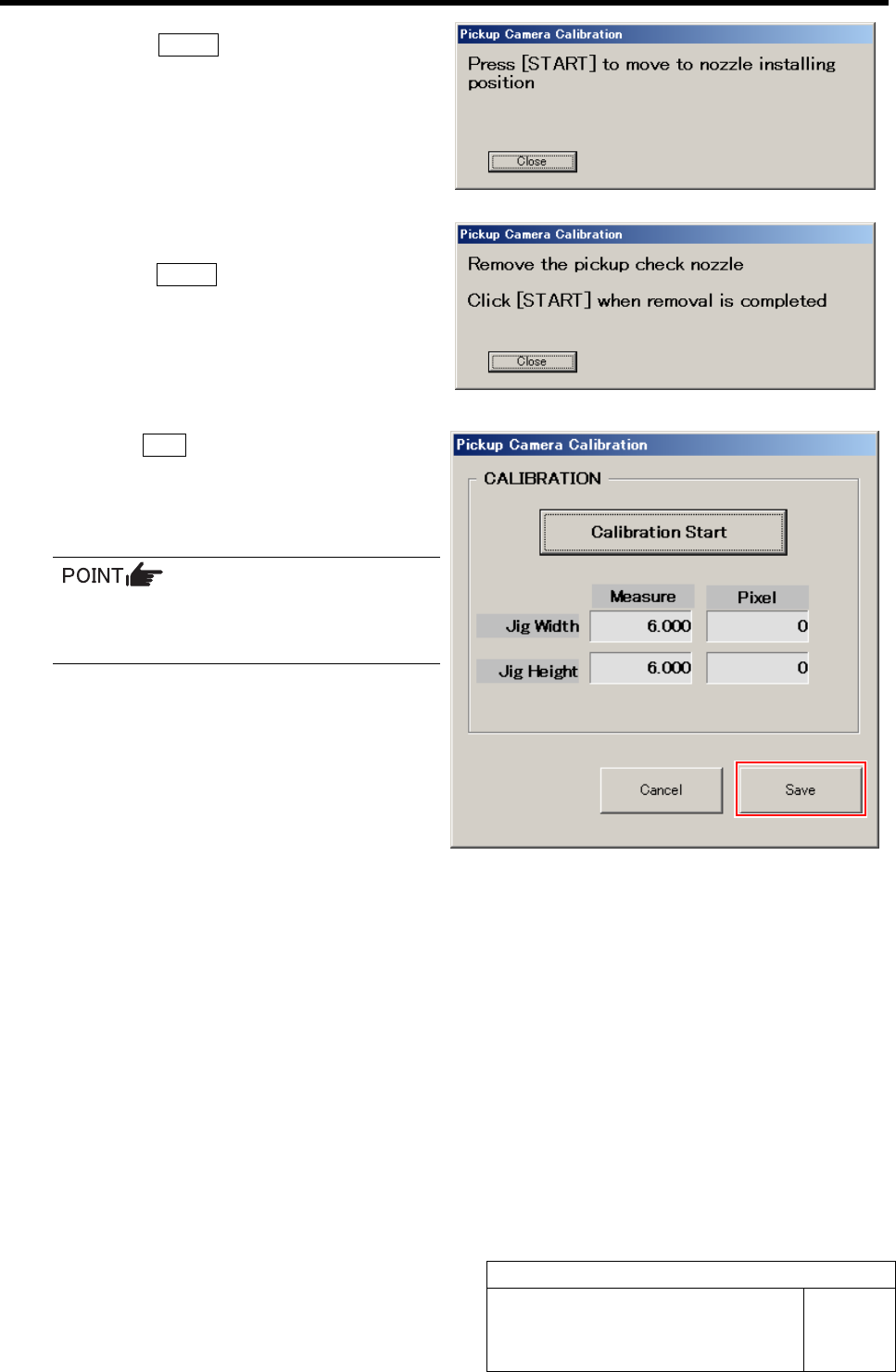

15 Press the START button on the operation
panel.
Turret No.1 moves to the nozzle installing position
and “Remove the pickup check nozzle” is displayed
on the message screen.
16 Remove the length reference nozzle jig and
press the START button on the operation
panel.
The message screen closes and returns to the Pickup
Camera Calibration screen.
17 Click the Save button on the Pickup Camera
Calibration screen.
Calibration information is saved and the Pickup Cam-
era Calibration screen closes.
In order to store the calibration result in
the unit, be sure to re-start the unit before
operating the unit.
