Machine T op Circumference LAF-101 12-01 Machine T op Circumfe rence SHEET 1/2 Machine T op Circumference < Front side > SIGNAL TOWER SV1 140 REAR DOOR LOCK SV1 136 FRONT DOOR LOC K DRV -X SGDS-15A12A DRV - Y SGDS-…
Operation Panel Circumference
LAF-10111-01
Operation Panel Circumference
SHEET
1/1
Operation Panel Circumference
PB77, D1117
ON LINE SW/LAMP
LCD TOUCH PANEL
PB73, D1113
FRONT ACTIVE SW/LAMP
PB72, D1112
FRONT RESET SW/LAMP
MOUSE
KEYBOARD
PB71, D1111
FRONT STOP SW/LAMP
PB70, D1110
FRONT START SW/LAMP
PB76, D1116
FRONT ORIGIN SW/LAMP
SW10
EMERGENCY SWITCH
TOUCH PANEL I/F BOARD
LCD I/F BOARD
BACK LIGHT INVERTER

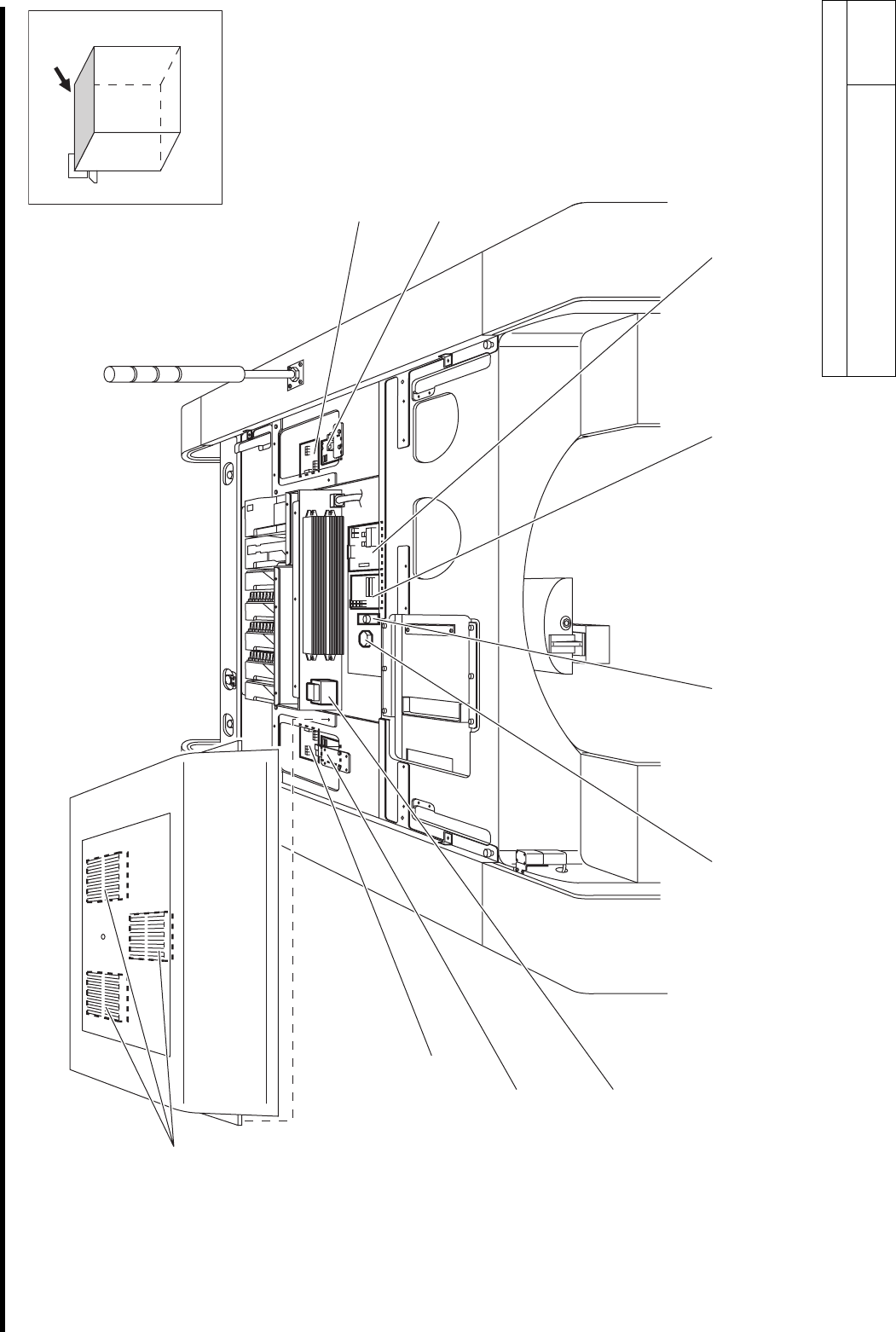

Machine Top Circumference
LAF-10112-01
Machine Top Circumference
SHEET
1/2
Machine Top Circumference
< Front side >
SIGNAL TOWER
SV1140
REAR DOOR LOCK
SV1136
FRONT DOOR LOCK
DRV-X
SGDS-15A12A
DRV-Y
SGDS-08A12A
DRV-H
SGDS-02A12A
MIST SEPARATOR
for BULK
REGULATOR for BULK
(OPTION)
REGULATOR for BLOW
SV1138
BLOW ON
DRV-RN
SGDS-02A12A
DRV-RT
SGDS-04A12A
DRV-FR
SGDS-04A12A
DRV-FF
SGDS-04A12A
Machine Top Circumference
LAF-10112-01
Machine Top Circumference
SHEET
2/2
< Rear side >
HANDY CONSOLE
CONTROL BOARD
IF II-LS
IF II-LS BOARD
HANDY CONSOLE
BUZZER
BUZZER
DIRECT ENCODER AMP
DW2
SDIOC-OUT16
DR2
SDIOC-IN16-CHAT
DW1
SDIOC-OUT16
DR1
SDIOC-IN16-CHAT
FAN-
A
C
