4-26 TM-401 User’s Guide Configure HMI Settings D292104.7a.fm 15. Save Job Settings a. Browse through the Job Library using the Up/Down Arrow keys to move up or down through the list. T o select a Job Name from the list,…

D292104.7a.fm Configure HMI Settings

Chapter 4: Setup 4- 25

13. Verify Job Settings

Test the job settings, using the Pick Part and Place Part buttons to pick and

place parts. If adjustments are required, use the left Arrow key to return to the

desired step and adjust settings. Press the right Arrow Key to move to the next

Job Wizard screen.

Note: Manually placed parts will be counted in the current job.

14. Vision Settings

a. Set Camera State to ON ( I ) or OFF (O).

b. If camera is enabled, enter number of Parts Until Inspection (do not include

part at Pick point.). Press the right Arrow Key to move to the final Job Wizard

screen

Downloaded from www.Manualslib.com manuals search engine

4-26 TM-401 User’s Guide

Configure HMI Settings D292104.7a.fm

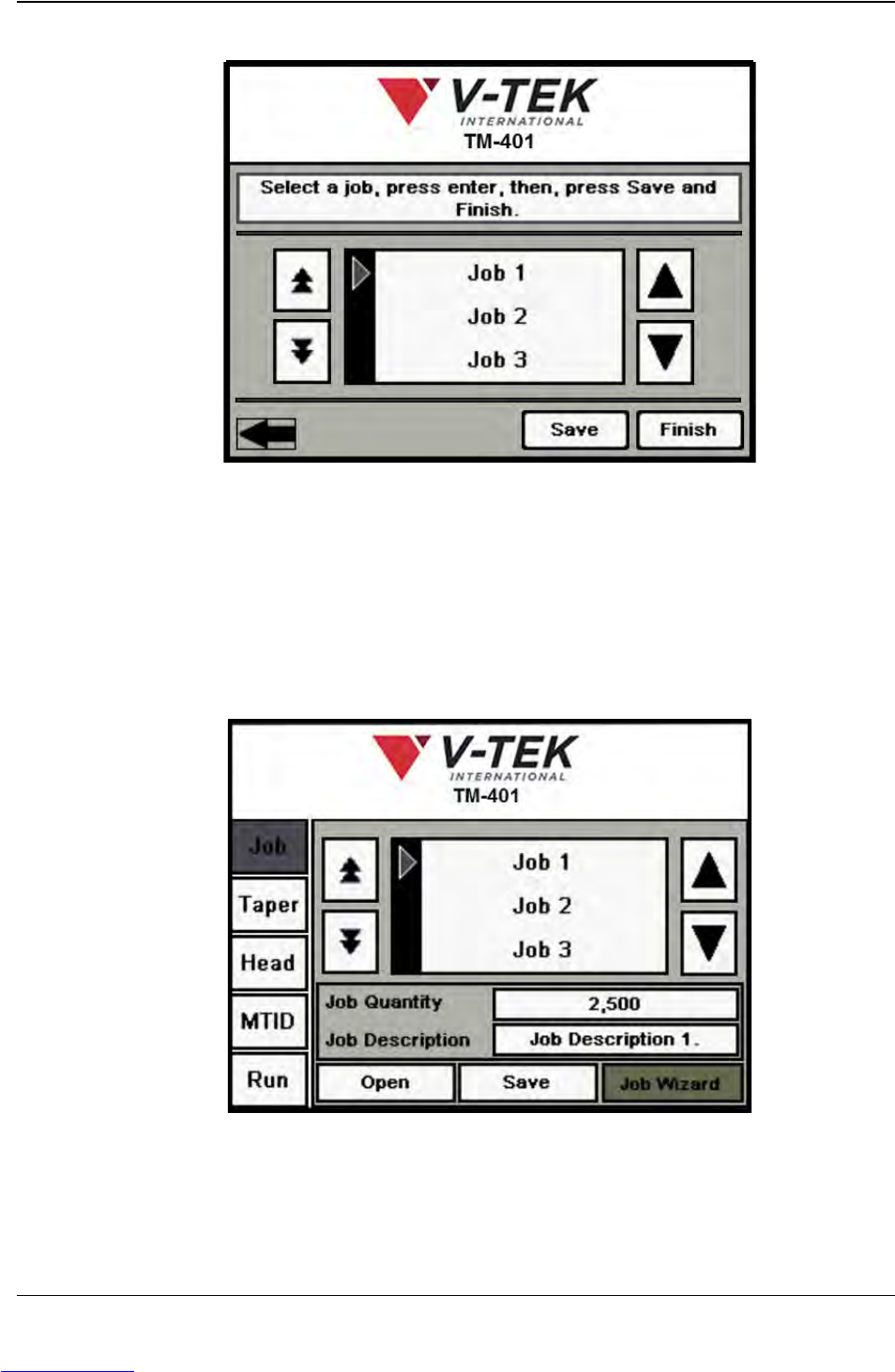

15. Save Job Settings

a. Browse through the Job Library using the Up/Down Arrow keys to move up or

down through the list. To select a Job Name from the list, press the Enter key.

Note: The Save function will overwrite the information stored for the currently

selected job. Therefore, it is important to select the desired job prior to pressing

the Save button.

b. Press the Save button to save job settings to the selected job name, then

press Finish to close the Job Wizard and return to the main Job Tab..

Step 6:

Setup HMI

SAVE

SETTINGS

Downloaded from www.Manualslib.com manuals search engine

D292104.7a.fm Test Seal

Chapter 4: Setup 4- 27

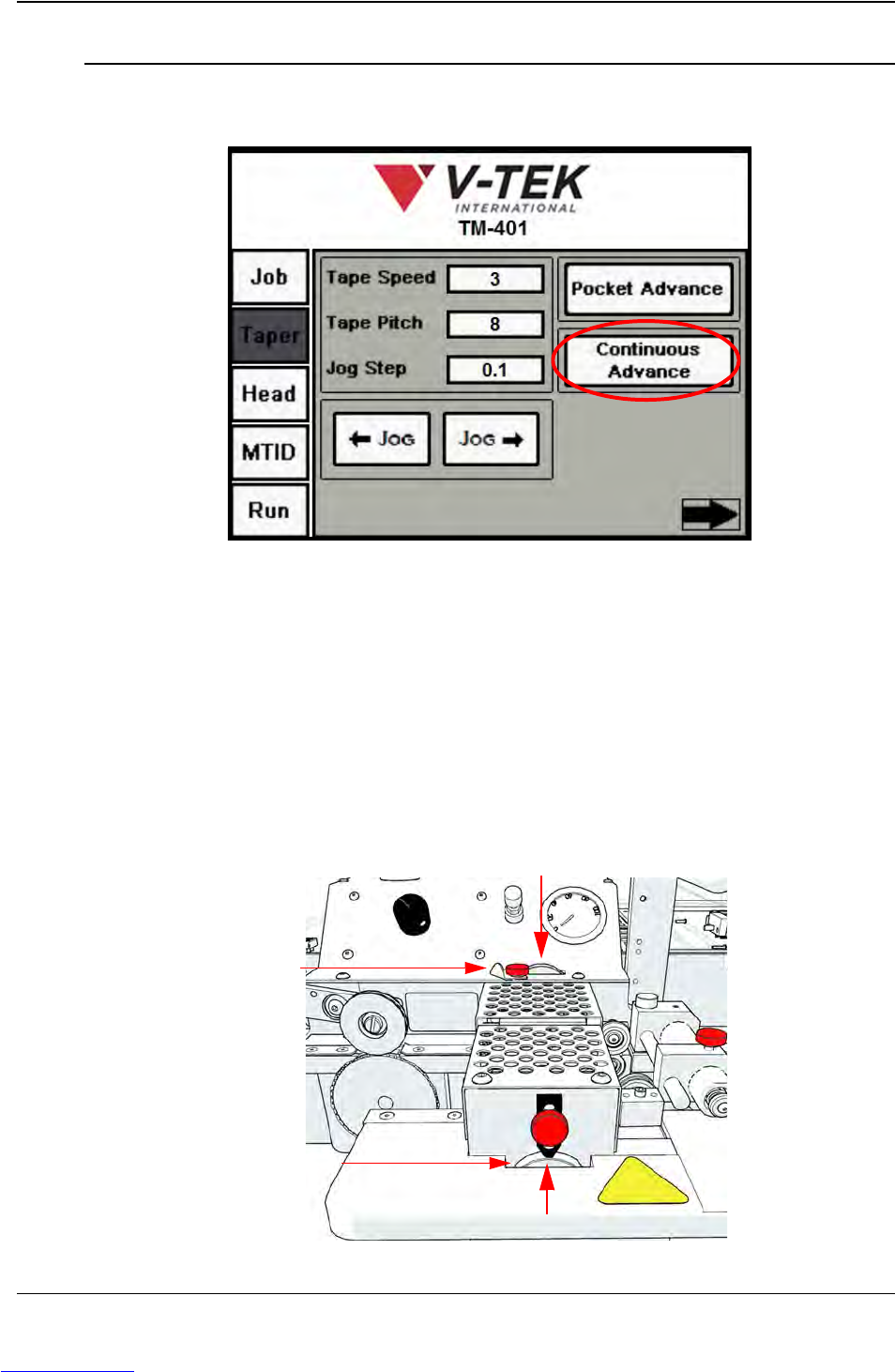

Te s t S e a l

Perform a Seal Test to ensure a good seal. Adjust Sealer settings in the HMI Taper tab as

necessary.

1. Run the tape through the taping module by pressing the Continuous Advance

button in the HMI Taper Tab.

2. As the seal is occurring, watch the alignment of the cover tape with the carrier

tape. The cover tape should run exactly in the groove of the cover tape guide and

the seal should appear as a solid, consistent line. If the seal width is incorrect, stop

the Taper by pressing the Continuous Advance button again.

3. Adjust the seal positions as necessary. The sealer’s inside and outside seals are

independently adjustable. If one of the seals needs to be moved, loosen the

corresponding position lock and turn the adjusters.

Step 7:

Seal Test

Inner Seal Adjust

Outer Seal Adjust

Position Lock
