D292104.6.fm Job Tab Chapter 3: Human Machine Interface 3-5 As the homing sequence is complet ed, the bar gradually turns from black to green . A Homing Succeeded! message appears at the en d of the sequence. If a proble…

3-4 TM-401 User’s Guide

Job Tab D292104.6.fm

Job Tab

When the TM-401 is initially powered up, the HMI will open to the Job Tab with a red Home

Required button at the top of the Tab Menu and the other tab buttons grayed out.

Homing motors should be done following every system power up or emergency stop. Press

Home Required to open the Homing Status window.

Press the Home All Motors button to begin the homing sequence. Homing progress is displayed

in the Pick Axis Motor Status Bar at the top of the screen.

Downloaded from www.Manualslib.com manuals search engine

D292104.6.fm Job Tab

Chapter 3: Human Machine Interface 3-5

As the homing sequence is completed, the bar gradually turns from black to green. A Homing

Succeeded! message appears at the end of the sequence.

If a problem arises during homing, the status bar will turn red and a Homing Failed message will

appear.

Pressing the Left Arrow button will open the Run Tab.

Select the Job Tab from the Tab Menu to navigate back to the Job Tab.

Downloaded from www.Manualslib.com manuals search engine

3-6 TM-401 User’s Guide

Job Tab D292104.6.fm

Job Tab Overview

The Job Tab allows the user to select a pre-programmed job, change job information and move

to the other tab screens. It also features an easy-to-use Job Wizard which leads the user through

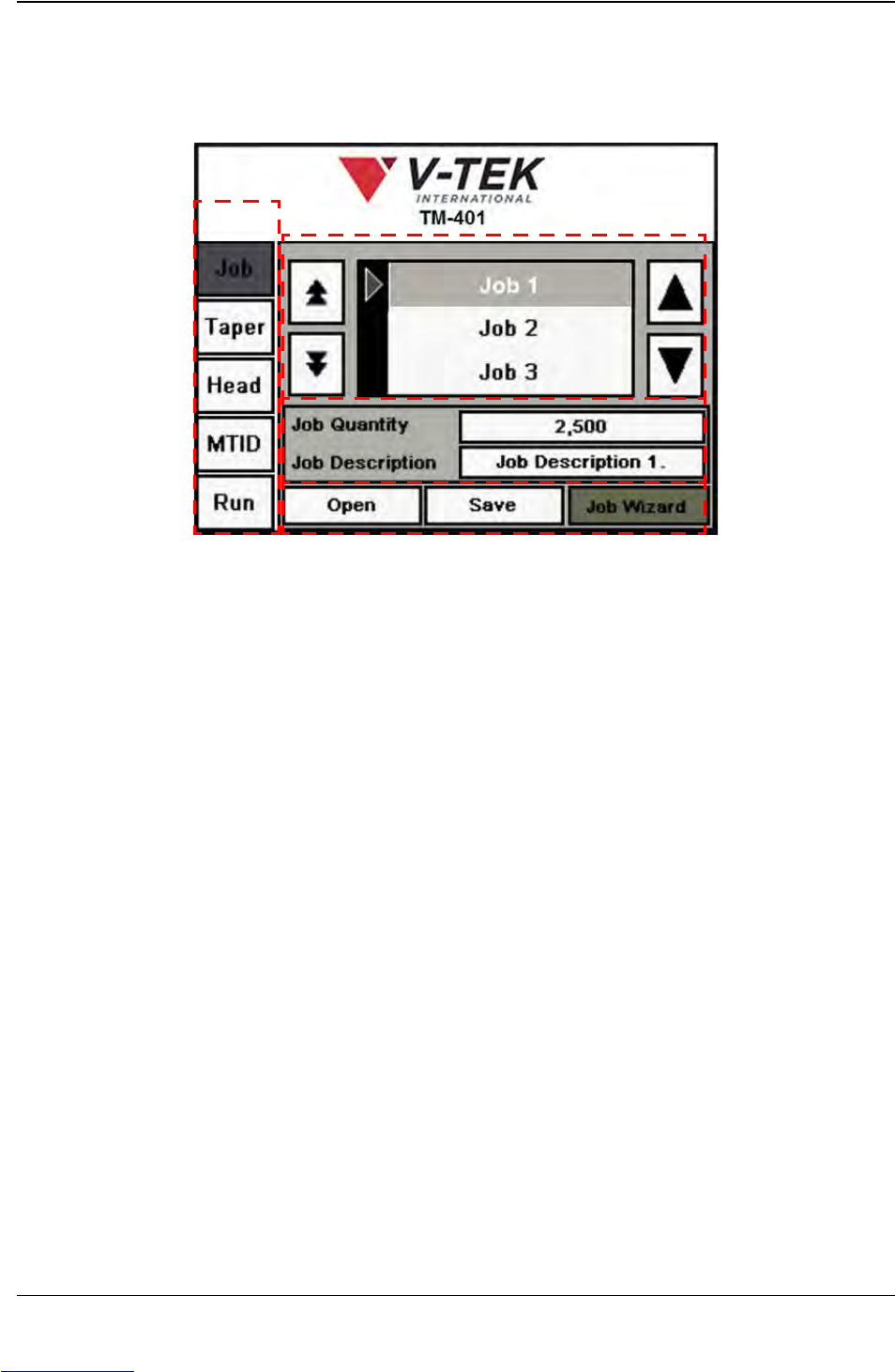

the job set-up process. The Job Tab is pictured below.

A. Tab Menu

B. Job Library

C. Job Information

D. Control Buttons

A. Press any tab in the Tab Menu to open that tab window.

B. The Job Library holds up to fifty saved jobs (Job 1 through Job 50). The Up and

Down Arrows buttons to the right of the Job Library are used to move through the

job list one job at a time. The Page Up and Page Down Arrows buttons to the left

of the Job Library are used to move through the job list five jobs at a time. The

Enter button selects and highlights a job from the Job Library list so it can be

opened or saved.

C. The Job Information section has two open fields for entering job information: Job

Quantity and Job Description. Press the field to open a keypad for data entry. The

maximum number of characters for any field is 20.

D. At the bottom of the Job Tab there are three control buttons:

• The Open button opens the currently selected job.

• The Save button is used to save current job settings for future use.

• The Job Wizard button opens the Job Wizard, allowing the user to configure job

settings.
