Vision Timeout System Alarm
If the 2D Inspection System fails to inspect a part within a preset time period, the Vision System
Timeout System Alarm will be activated. Tape advance stops, a beep sounds and a warning
appears on the HMI.
To clear the Vision System Timeout system alarm, ensure the 2D Inspection Camera is con-
nected to power and setup correctly. Press CONTINUE to clear the alarm and resume operation.
Downloaded from www.Manualslib.com manuals search engine
D292104.9a.fm System Alarm Messages
Chapter 7: Troubleshooting 7-13
Temperature Out of Range System Alarm
When Heat Seal is enabled and the Heat Shoe temperatures are either too hot or too cold, a
Heat Seal Temperature Out of Range system alarm will activate.
When this occurs, tape advance stops, a beep sounds and a warning appears on the HMI.
To clear the Heat Seal Temperature Out of Range System Alarm, wait for the heat shoes to reach
their set point and then press CONTINUE to clear the alarm and resume operation.
Downloaded from www.Manualslib.com manuals search engine
7-14 TM-401 User’s Guide
System Alarm Messages D292104.9a.fm

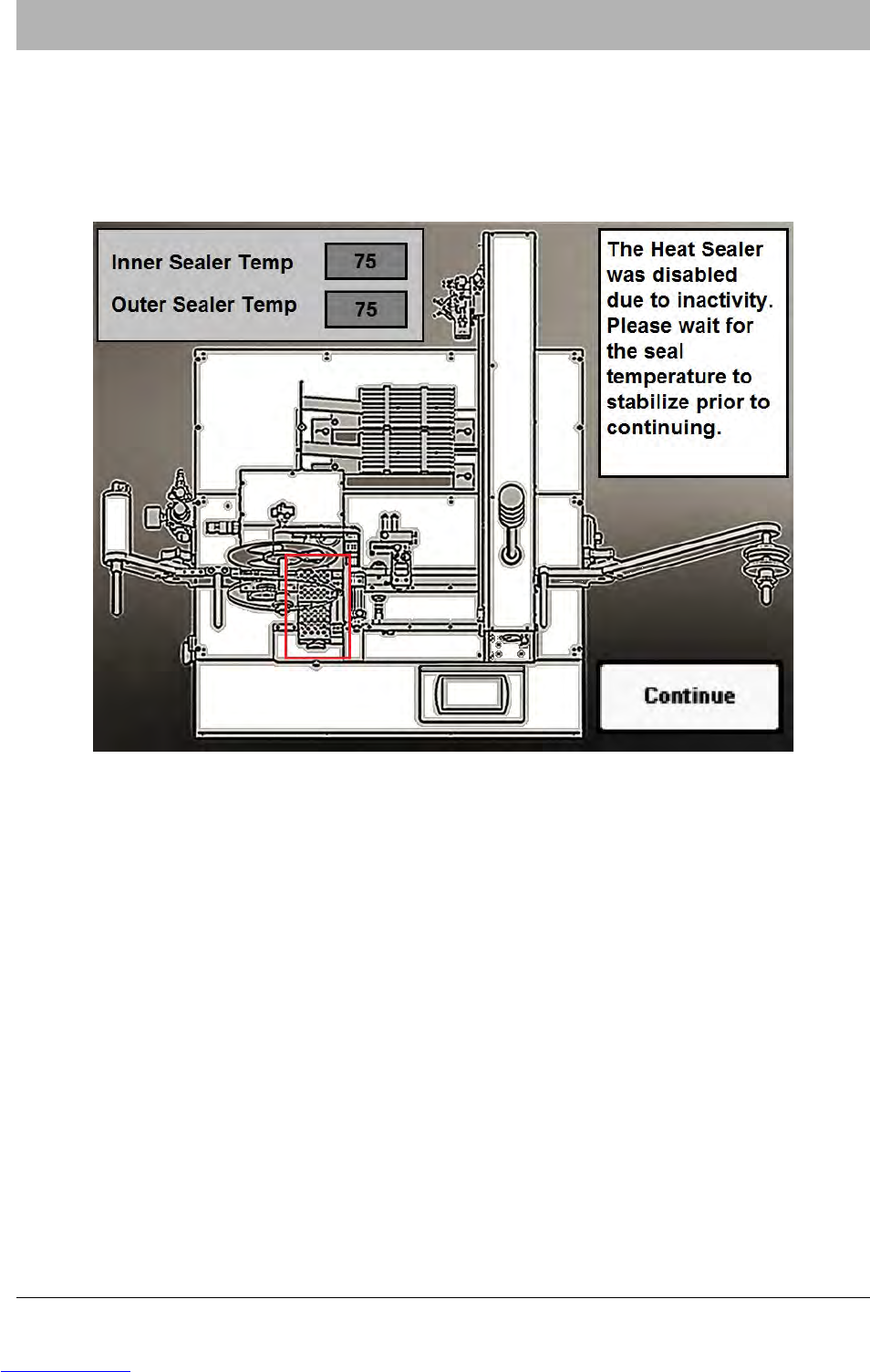

Heat Sealer Inactivity System Alarm
If the Taper is inactive for 40 minutes or longer, the Heat Sealer is automatically disabled. Once
that occurs, if a user attempts to run a job, or use Continuous Advance, Pocket Advance or Man-
ual Seal a Heat Sealer Inactivity system alarm will activate.
When this occurs, tape advance stops, a beep sounds and a warning appears on the HMI.
To clear the Heat Seal Inactivity System Alarm, wait for the heat shoes to reach their set point
and then press CONTINUE to clear the alarm and resume operation. The current temperature is
displayed on the system alarm message.
Note: If the user presses Continue and then attempts to move tape through the sealer
before the temperature has reached the set point, the Temperature Out Of Range system
alarm will appear, prompting the user to wait until the sealer temperature is correct.
