D292104.9a.fm System Alarm Messages
Chapter 7: Troubleshooting 7-7
Note: There are a variety of error conditions which could cause the machine to stop. See
the Error Message Table at the end of this section for an explanation of the various error
messages and their suggested solutions.
An illustration and description of each System Alarm Message follows.

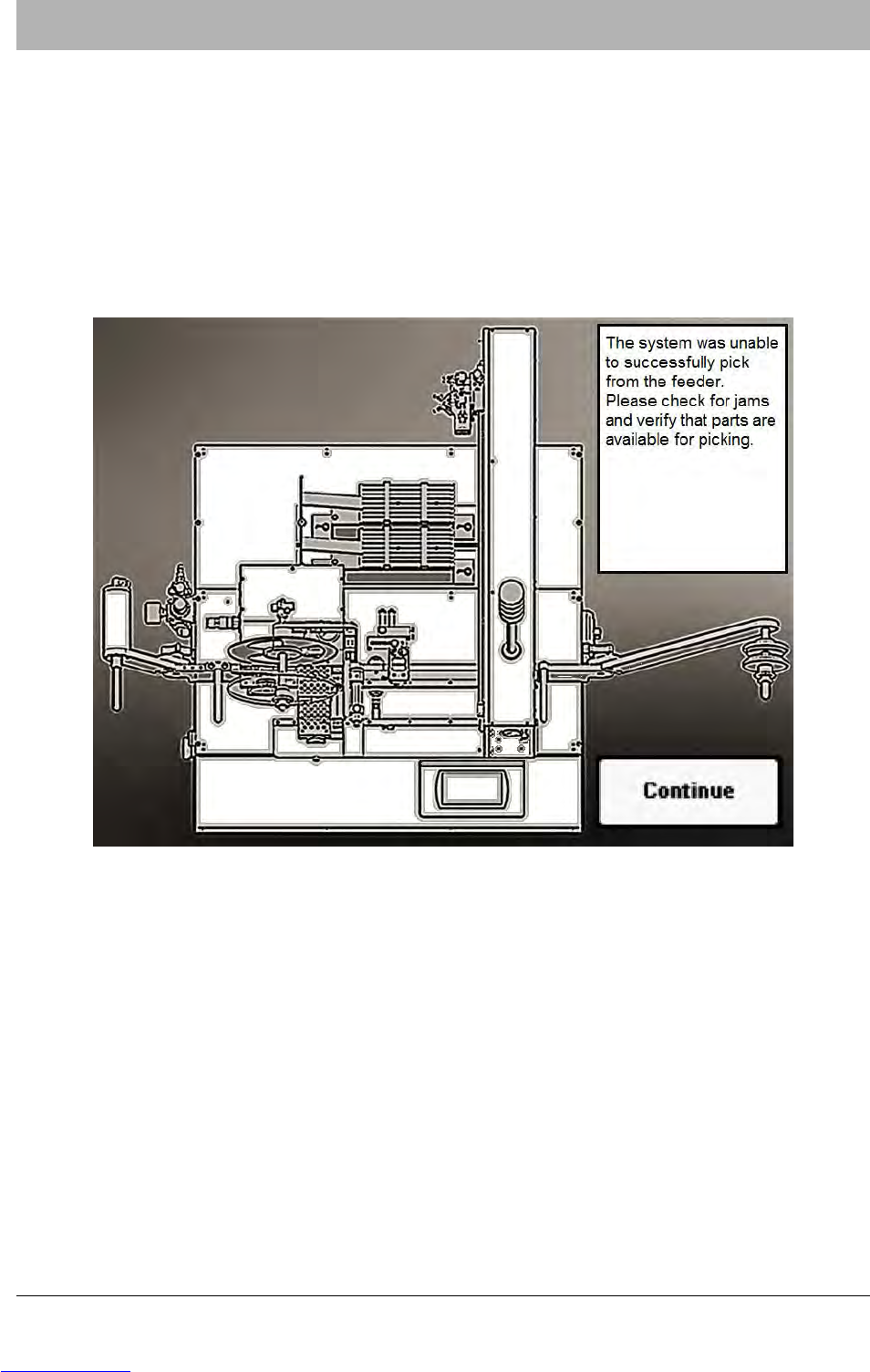

Unable to Pick System Alarm
If the nozzle is unable to pick a part from the Tube Feeder, the Unable to Pick system alarm will
be activated. When this happens, operation stops, a beep sounds, and a warning appears on the
HMI.
To clear the Unable to Pick Alarm, ensure there are parts in the feeder and it is feeding properly
with no jams in the feeding track. If that does not resolve the problem, ensure the Pick Height is
not set too high. Finally, verify the Vibratory is ON.
When the Tube Feeder is ready for operation, press CONTINUE to clear the alarm and resume
operation.
Downloaded from www.Manualslib.com manuals search engine
7-8 TM-401 User’s Guide
System Alarm Messages D292104.9a.fm

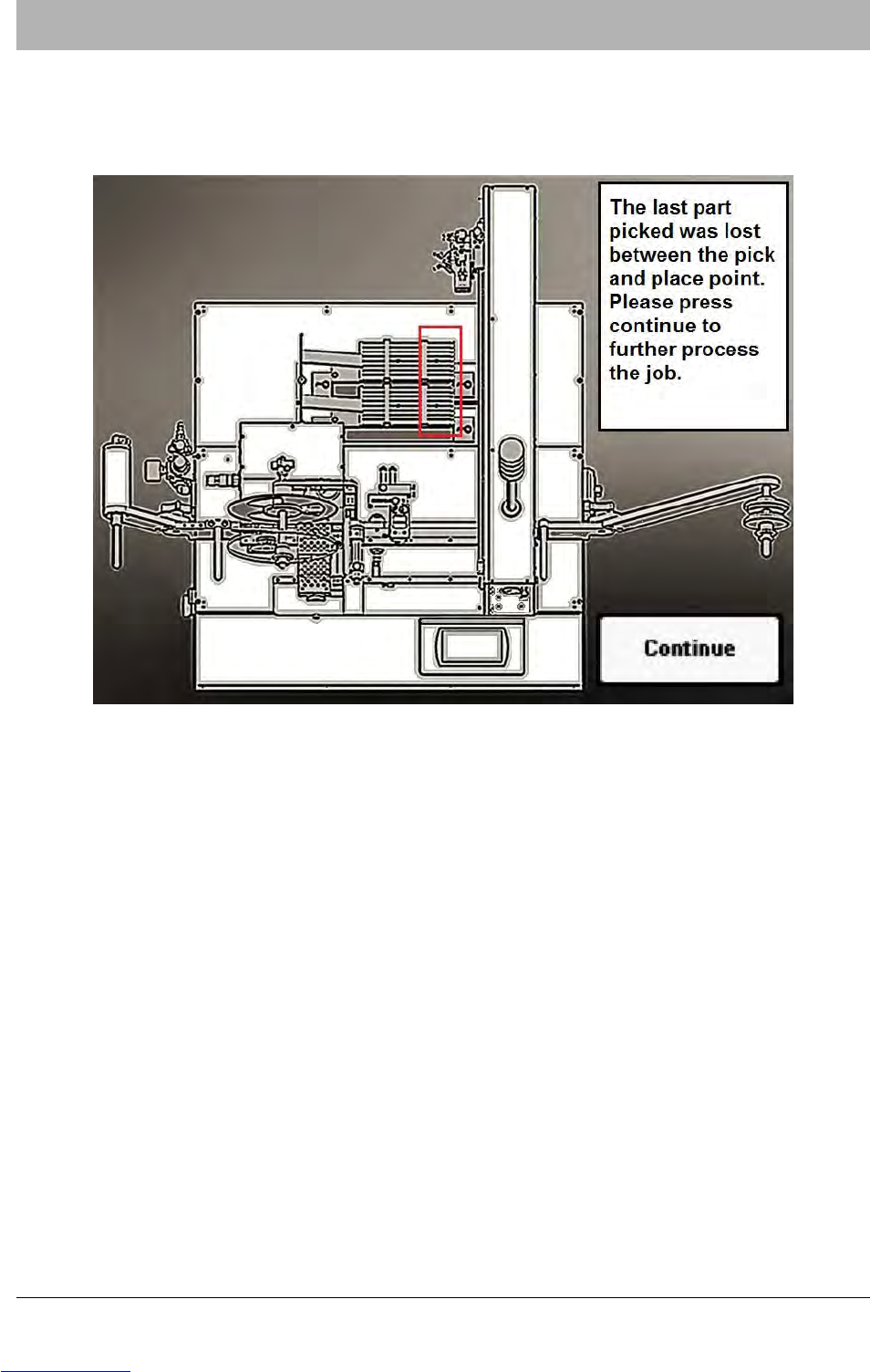

Part Lost System Alarm
If a part falls off the nozzle and is lost during the Pick process, the Part Lost system alarm will be
activated. When this happens, operation stops, a beep sounds, and a warning appears on the
HMI.
To clear the Part Lost System Alarm, check the Vacuum Sensor to ensure it is set correctly. Next,
ensure the correct Nozzle Tip for the part that is being picked is installed. Finally, check the Pick
Position to ensure it is centered correctly. Adjust as necessary.
When the Tube Feeder is ready for operation, press CONTINUE to clear the alarm and resume
operation.
Downloaded from www.Manualslib.com manuals search engine
D292104.9a.fm System Alarm Messages
Chapter 7: Troubleshooting 7-9

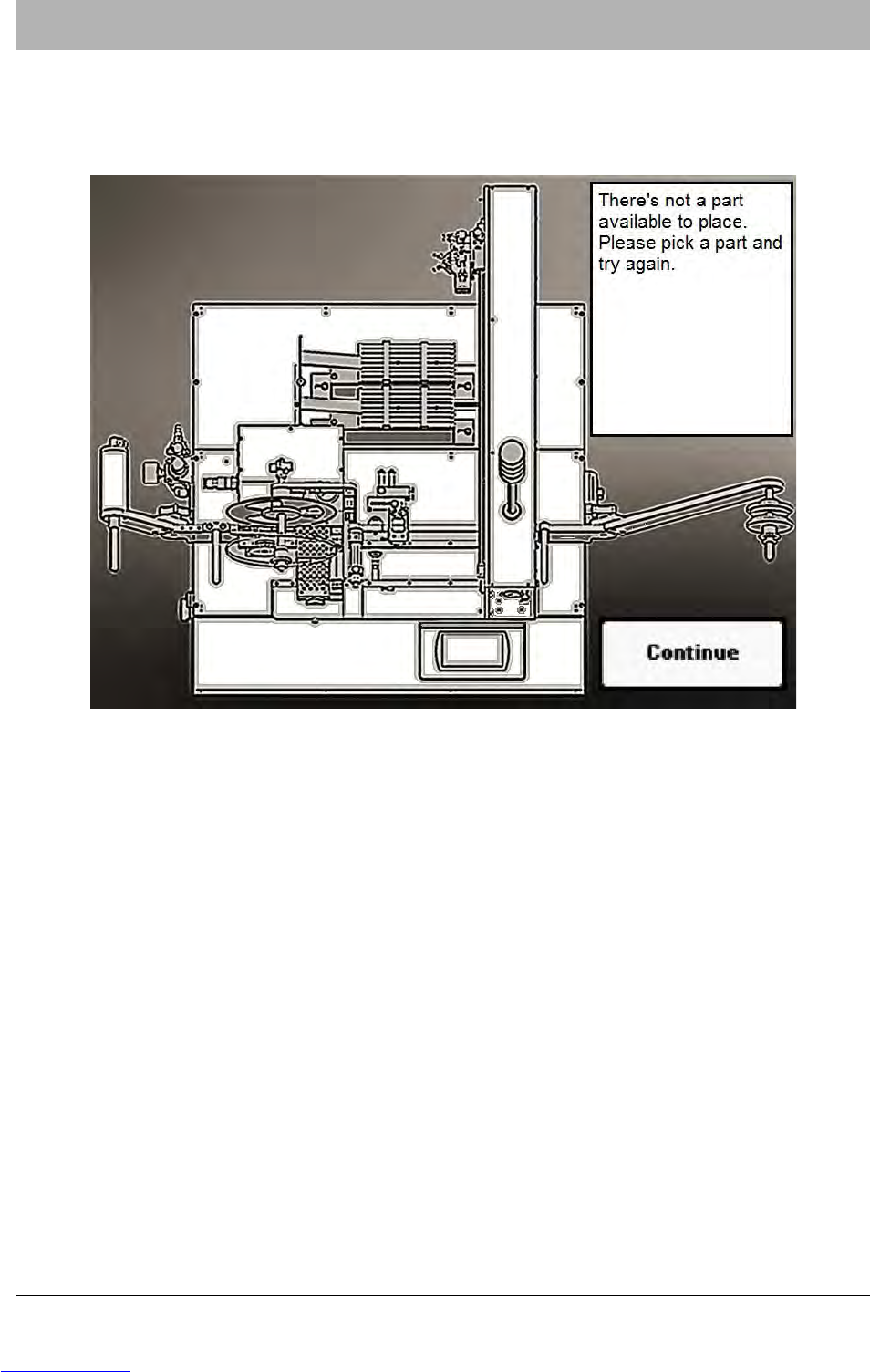

No Part To Place System Alarm
If the user attempts to place a part in tape when there is no part on the Nozzle, the No Part To
Place System Alarm will be activated. When this happens, operation stops, a beep sounds, and
a warning appears on the HMI.
To clear the No Part To Place System Alarm, pick a part then press CONTINUE to clear the
alarm and resume part placement.
