Chapter 4: Machine Setup
Contents
Quick Start: Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Power Up the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Home Motors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
Load the Manual Tube Input Device (MTID). . . . . . . . . . . . . . . . . . . . . . .4-5
Nozzle Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
Selecting the Correct Nozzle & Nozzle Tip . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Installing Nozzle & Nozzle Tip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Taper Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9
Load Carrier Tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Load Cover Tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Load Take-up Reel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Configure HMI Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-13
Test Seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-27
Downloaded from www.Manualslib.com manuals search engine
4-2 TM-401 User’s Guide
Quick Start: Setup D292104.7a.fm
Quick Start: Setup
The following is an outline of the basic steps required to setup the TM-401 for operation.
More detailed instructions follow in the next section of this chapter.
Caution: Users should always wear protective eye wear when operat-
ing or maintaining the TM-401.
1. Power up
• Power up the machine. Press Reset. Close all doors.
2. Home the motors
• Press Home Required and Home All Motors.
3. Load the Manual Tube Input Device (MTID)
• Ensure the correct Tooling for the part size to be processed is installed.
• Load components into the Tube Feeder.
4. Install Nozzle
• Ensure correct nozzle size and tip are installed.
5. Load Taper
• Load carrier tape.
• Load cover tape.
• Place an empty reel on the Take-up Arm.
6. Configure HMI settings
• Go to the Job Tab and run the Job Wizard to configure job settings.
7. Test Sealer
• Perform a Seal Test to ensure a good seal, adjust Sealer settings as necessary.
8. Setup 2D Vision
• Connect Vision Computer
• Setup 2D Vision Inspection.
Downloaded from www.Manualslib.com manuals search engine
D292104.7a.fm Power Up the System
Chapter 4: Setup 4- 3

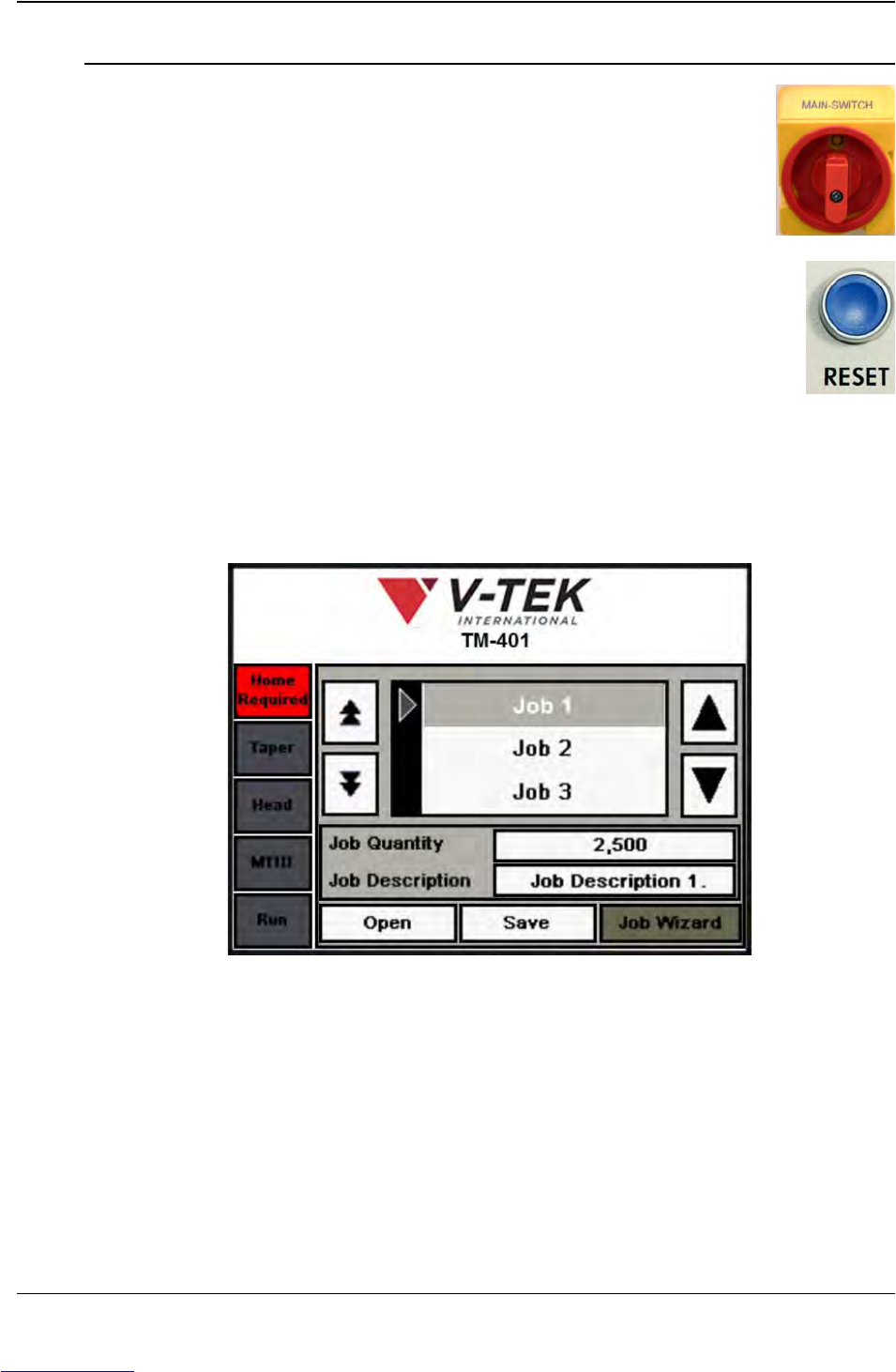

Power Up the System
1. Power up the machine by turning the Main Power control on the
lower right side of the cabinet to the ON position.
2. Press the blue Reset Button on the left side of the machine.
There will be a brief popping sound as the Air Dump Valve
releases air to the machine. As the TM-401 powers up the PLC,
Servo Drivers and HMI Monitor will boot up. On top of the
machine, the Tower Light will flash red indicating the machine is
on but not running.
Note: The boot up process takes approximately 90 seconds.
The monitor will display the HMI Job Tab with a red Home Required message at
the top of the Tab Menu..
Step 1:
Power
Up
