7-4 TM-401 User’s Guide Emergency Stop D292104.9a.fm 6. The Homing S tatus window will open. Press Home All Motors 7. When the homing sequence is completed, the bar will turn from black t o green and a Hom- ing Succeeded…

D292104.9a.fm Emergency Stop

Chapter 7: Troubleshooting 7-3

3. Press the blue Reset button.

4. The Boot Screen will appear on the HMI Monitor and display a loading progress message.

This process typically takes about 90 seconds to complete.

5. Once the system has finished booting, the HMI will open to the Job Tab with the Home

Required button displayed. Press Home Required to begin the homing sequence.

Downloaded from www.Manualslib.com manuals search engine

7-4 TM-401 User’s Guide

Emergency Stop D292104.9a.fm

6. The Homing Status window will open. Press Home All Motors

7. When the homing sequence is completed, the bar will turn from black to green and a Hom-

ing Succeeded! message will appear.

Downloaded from www.Manualslib.com manuals search engine

D292104.9a.fm Emergency Stop

Chapter 7: Troubleshooting 7-5

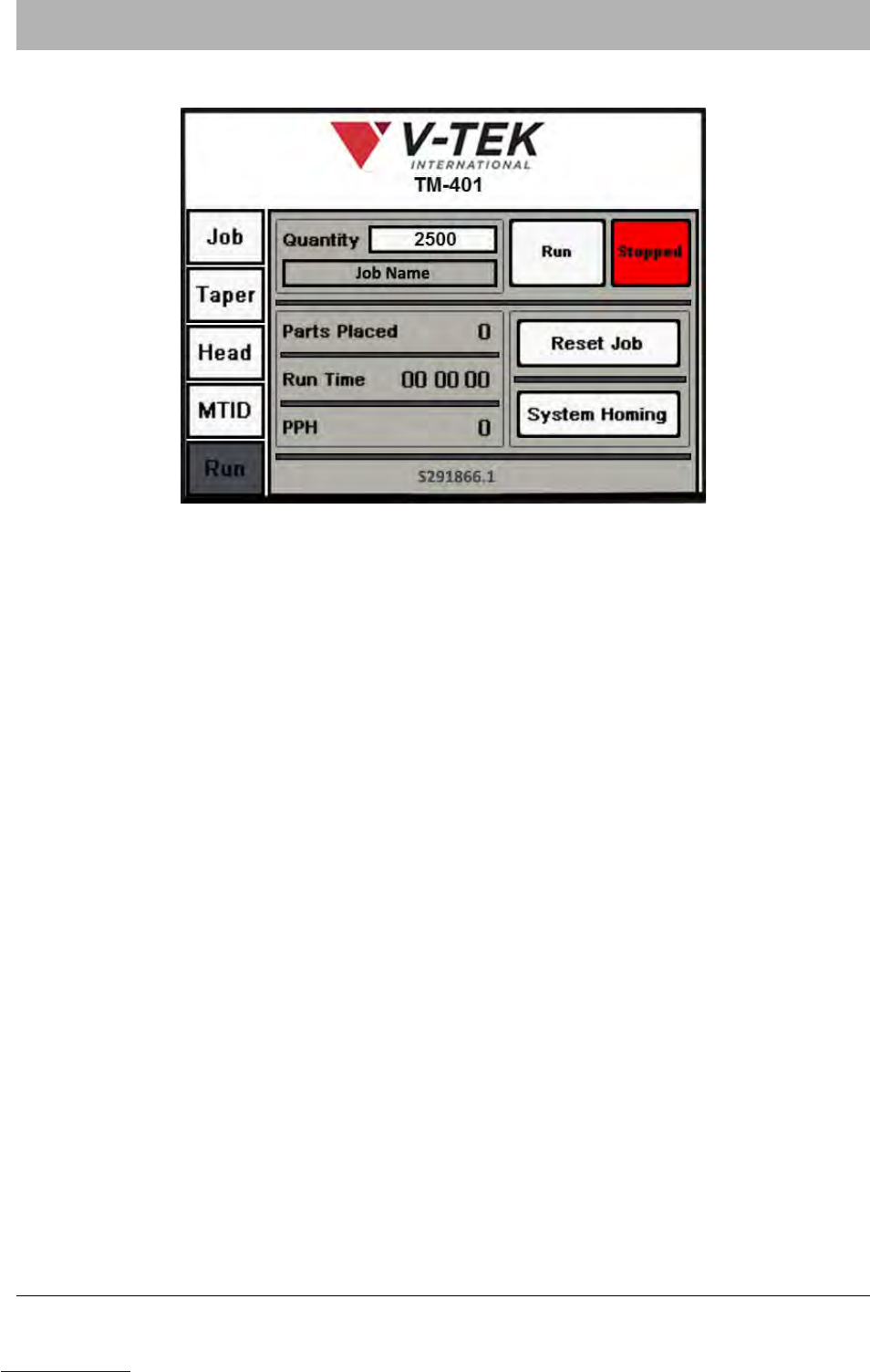

8. Once homing is complete, press the Left Arrow button will open the Run Tab.

9. Press the Run button on the HMI Run Tab to resume operation.
