D292104.16.fm Configure Inspection
Chapter 5: Setup 5- 35
4. Set the position, size, and the angle of the tool window. The detected outline will be
displayed in green. After the setting is completed, touch OK.
5. Touch the Limit Adjustment button.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
Downloaded from www.Manualslib.com manuals search engine
5-36 TM-403 User’s Guide
Configure Inspection D292104.16.fm

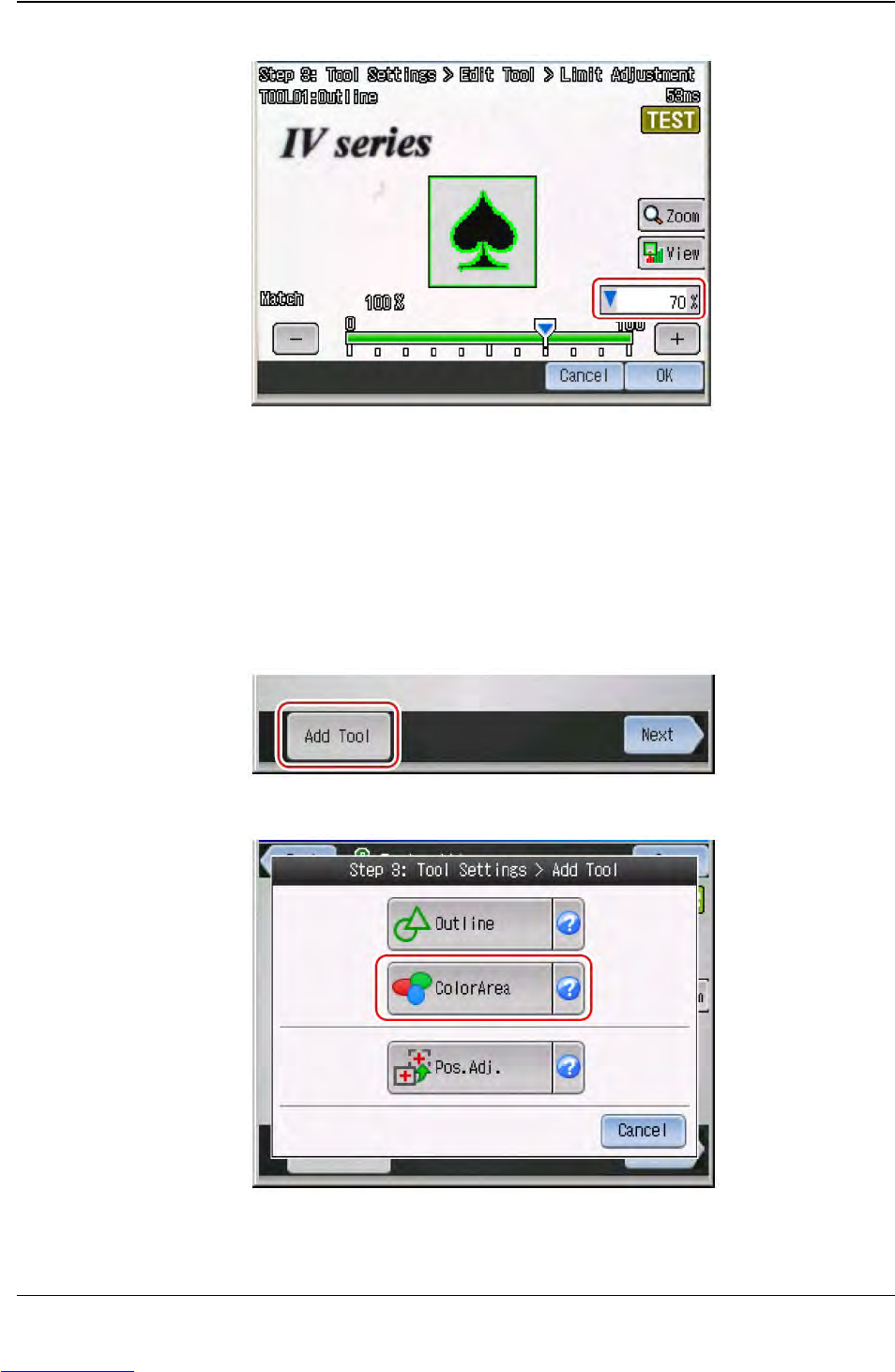

6. Set the threshold to judge OK and NG.
7. The display will return to the main screen for the Outline tool.
8. Touch OK, then touch Next to proceed to “STEP4”.
Setup Area Detection Tool
1. Touch the Add Tool button.
2. Select Area.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
