3-8 TM-401 User’s Guide Job Tab D292104.6.fm In the second Job Wizard screen the user enters the Quantity of part s that will be run and a brief Description of the job. When the job p arameters are set, press the right A…
D292104.6.fm Job Tab
Chapter 3: Human Machine Interface 3-7
Job Wizard
Pressing the Job Wizard button in the Job Tab opens the Job Wizard.
The Job Wizard has 15 screens that lead the user through the job set-up process. Instructions at
the top of each Job Wizard screen explain each step. The Arrow buttons on the bottom of the
window move the user forward and backwards through the process. Pressing the right Arrow
button opens the next Job Wizard screen. Pressing the left Arrow opens the previous screen.
In the first Job Wizard screen the user resets the job to initialize the system. Press Reset Job,
then press the right Arrow key to move to the next Job Wizard screen.
Arrow Buttons
Job Wizard Step 1
Downloaded from www.Manualslib.com manuals search engine
3-8 TM-401 User’s Guide
Job Tab D292104.6.fm

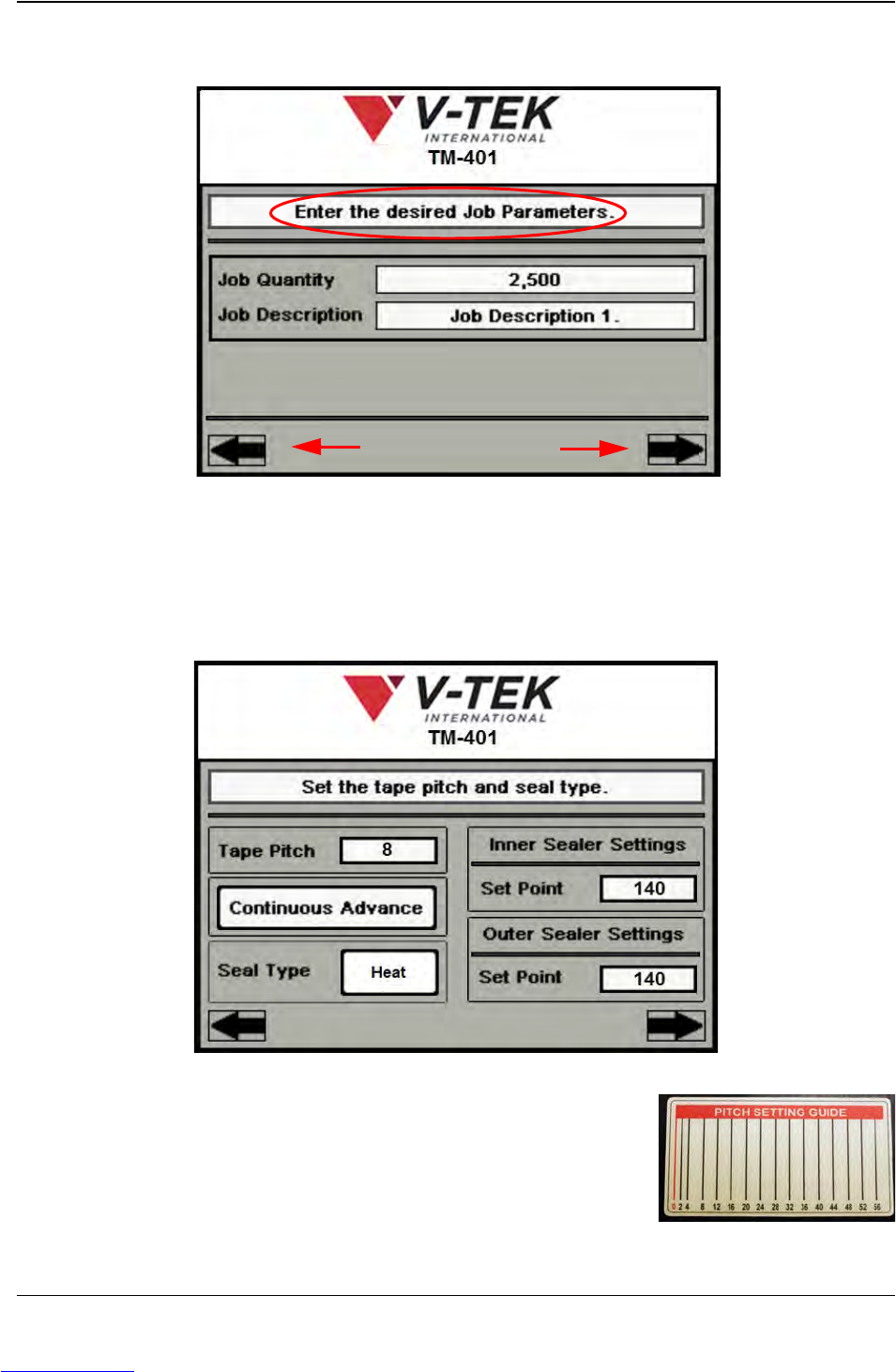

In the second Job Wizard screen the user enters the Quantity of parts that will be run and
a brief Description of the job. When the job parameters are set, press the right Arrow
key to move to the next Job Wizard screen.
The third Job Wizard step sets up Taper operation.
A. Tape Pitch is determined by the carrier tape
selected. Use the Pitch Setting Guide on the taper to
determine the correct pitch. Press the Tape Pitch
field to open a keypad and type in the desired value.
Arrow Buttons
Job Wizard Step 2
A
B
Job Wizard Step 3
C
C
Downloaded from www.Manualslib.com manuals search engine
D292104.6.fm Job Tab
Chapter 3: Human Machine Interface 3-9
B. Seal Type toggles between PSA and Heat seal, select correct seal type.
C. The Set Point fields for the Inner and Outer Sealer are used to set the desired
temperature for Heat Seal. Enter the correct value in both fields, then press the
right Arrow Key to move to the next Job Wizard screen.
Note: The TM-401 accommodates a wide range of carrier tapes and cover tapes. Set-
tings may vary from one tape product to another. The recommended starting point is 90°
C. The maximum recommended operating temperature is 160° C. The temperature for
each seal shoe should be increased or decreased as needed after running a peel force
test.

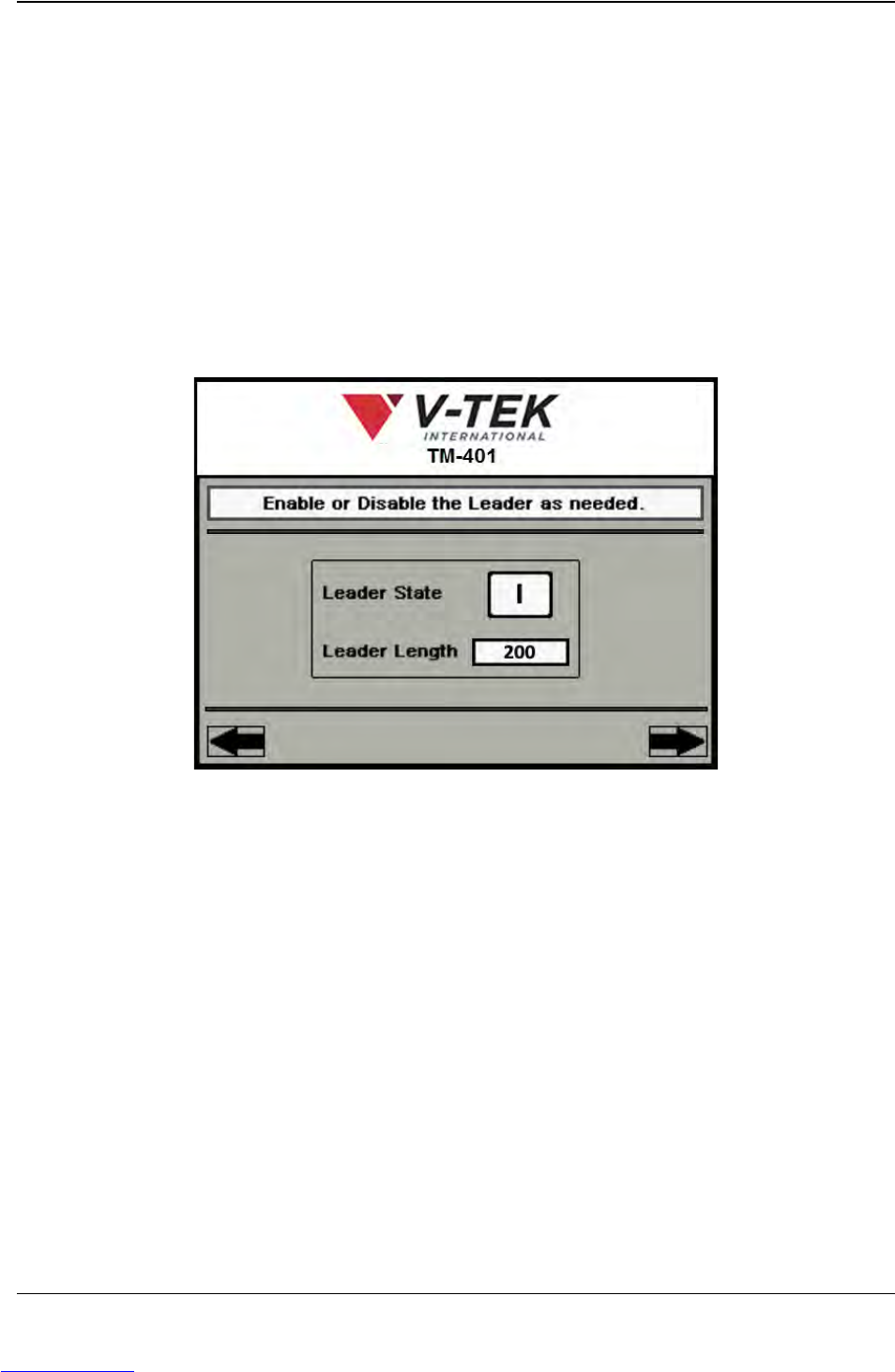

The fourth Job Wizard screen enables or disables the tape Leader.
A. Leader State toggles between ON ( I ) and OFF (O).
B. Pressing the Leader Length field will open a keypad. Type in the desired value,
then press the right Arrow Key to move to the next Job Wizard screen.
A
B
Job Wizard Step 4
