D292104.16.fm Configure Inspection
Chapter 5: Setup 5- 25

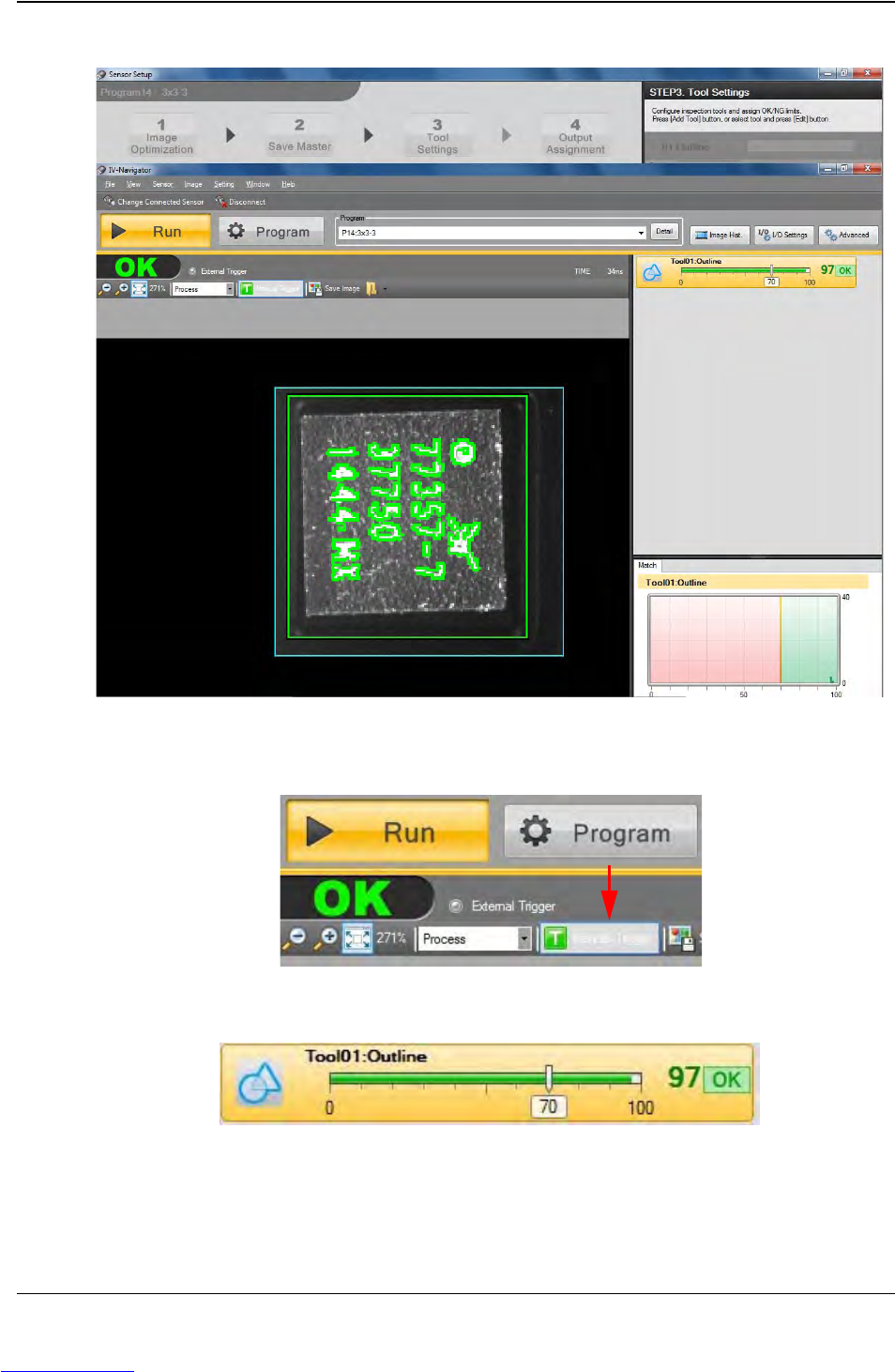

12. Click Complete to return to the Run/Program window. Select Run.
13. Click the Manual Trigger button which is located under the Program button to test
the inspection criteria.
The test results will appear on the right side of the window.
Step 2:
Vision
Setup
CONFIGURE
COMPUTER
Downloaded from www.Manualslib.com manuals search engine
5-26 TM-403 User’s Guide
Configure Inspection D292104.16.fm
A Statistics Graph of all test results will appear in the lower right corner.
14. On the TM-401 HMI, open the Taper Tab. Press the right Arrow button to advance
to the second Taper screen.
Press Trigger to manually trigger an inspection of the part under the camera. The
green PASS message should appear. Test several good parts to ensure TM-401
correctly and consistently passes good parts.
Step 2:
Vision
Setup
CONFIGURE
COMPUTER
Downloaded from www.Manualslib.com manuals search engine
D292104.16.fm Configure Inspection
Chapter 5: Setup 5- 27
15. Next trigger inspections with parts which are incorrectly oriented, badly marked or
with an empty pocket to ensure that they generate a red FAIL message.
The TM-401 is now ready for operation. Select the Run Tab to run the job.
Step 2:
Vision
Setup
CONFIGURE
COMPUTER
