3-26 TM-401 User’s Guide MTID Tab D292104.6.fm MTID T ab The Manual T ube Input Device ( MTID) Setu p T ab allows the user to set the number of tubes and utilize the Pitch Wizard to calculate pick p osition.. A. T ab Men…
D292104.6.fm Head Tab
Chapter 3: Human Machine Interface 3-25
• If rotation is set at 0, the part will be placed in the same orientation as it was
picked.
• If rotation is set at -90, the part will be rotated 90 degrees clockwise prior to
placement.
• If rotation is set at +90, the part will be rotated 90 degrees counter-clockwise
prior to placement.
Nozzle Blow Off Time is the amount of time in milliseconds that the nozzle will
activate the blow-off pressure to place a part in the Taper.
C. Press the left Arrow button to return to the second Head Setup screen or press a
button on the Tab Menu to move to a new tab.
Note: The TM-401 will use these settings for the current job. To save Head Settings for
future jobs, go to the Job Tab, select a job name and Save.
Downloaded from www.Manualslib.com manuals search engine
3-26 TM-401 User’s Guide
MTID Tab D292104.6.fm
MTID Tab
The Manual Tube Input Device (MTID) Setup Tab allows the user to set the number of tubes and
utilize the Pitch Wizard to calculate pick position..
A. Tab Menu
B. Number of Tubes Fields
C. Pitch Wizard button
A. Press any tab in the Tab Menu to open that tab window.
B. Number Of Tubes To Process is the number of tubes that have been loaded into
the tube feeder.
Number Of Tracks Per Feeder is the total number of tubes that can be pro-
cessed by a single tube feeder. For example, if the system has two Tube Feeders
that are equipped with eight track tooling, the Total Number Of Tubes would be
eight. However, the Number Of Tubes To Process could be as high as 16.
Note: The MTID does not need to be fully loaded to operate. However, if If only one tube
is loaded, enter a 2 for the number of tubes. If there are consecutive miss-picks, the TM-
401 will always attempt to pick a second tube and then return to the original tube allowing
Tube 1 to feed properly.
AB
C
Downloaded from www.Manualslib.com manuals search engine
D292104.6.fm MTID Tab
Chapter 3: Human Machine Interface 3-27

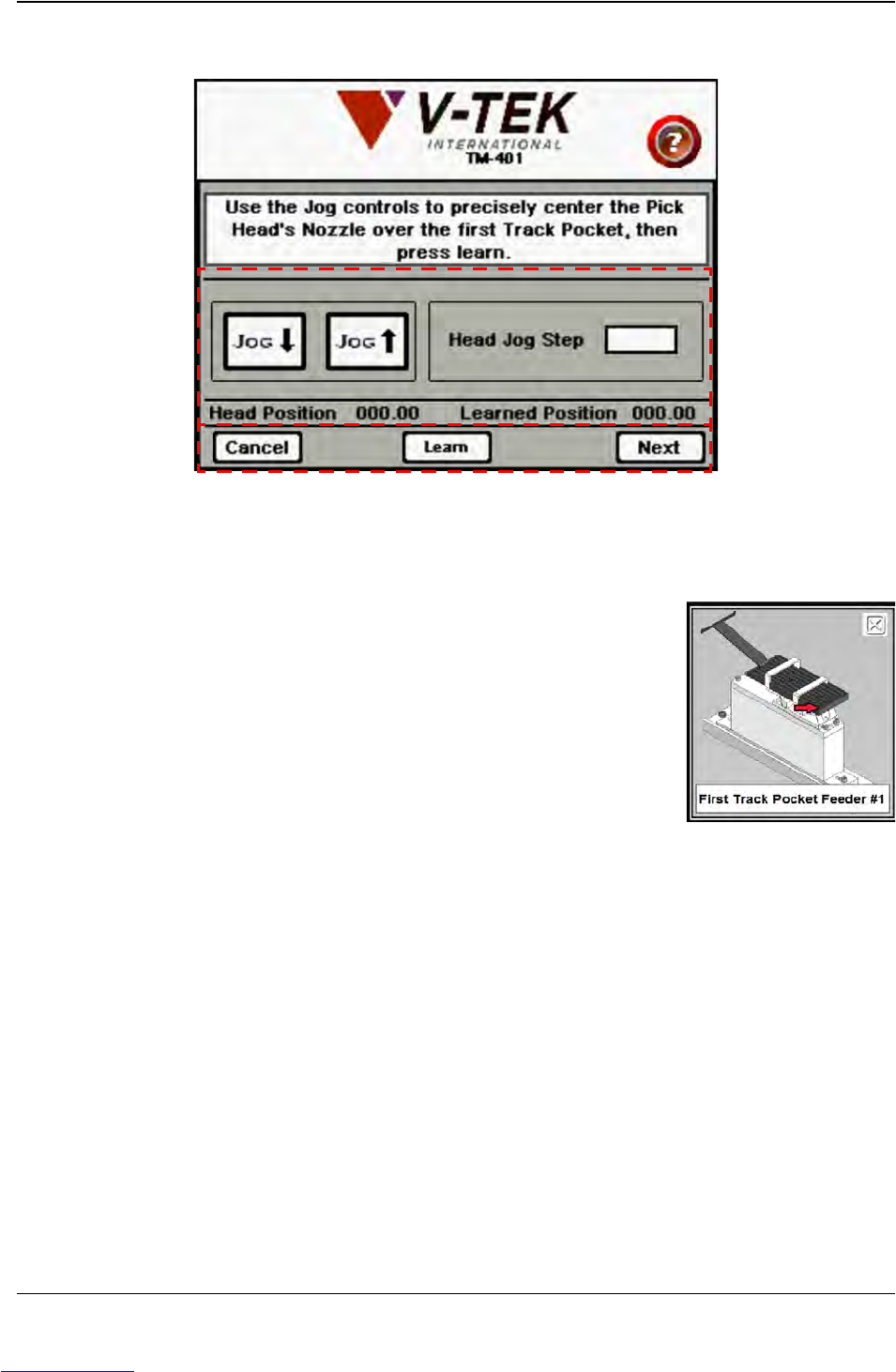

C. Press the Pitch Wizard button to open the Pitch Wizard..
A. Help Icon
B. Head Jog Controls
C. Pick Wizard Control buttons
A. To see an illustration of the correct head placement,
push the Help icon. An illustration of the Tube Feeder
with the first track identified will appear.
B. The Jog buttons in the Head Settings section are used
to jog the head forward or backward along the X Axis
(left/right) until the nozzle is centered over the first
Tube Pocket.
Head Jog Step is the distance in millimeters that the
head will move when Jog is pressed.
Note: Enter Jog Step field values in the following format: XXX.XX. (i.e. 100.00).
The Head Position indicates where the pick head is located in relation to the
Home position. The Learned Position indicates the current Pick position.
C. Press the Cancel button to return to the MTID Tab. Once the Learn button has
been pressed, the Cancel button disappears.
Pressing Learn saves the current head position as the programmed pick location.
This is the position the pick head will move to along the X Axis (left/right) when
picking a part from the Tube Feeder.
The Next button appears after Learn has been pressed. Press the Next button to
advance to the second Pitch Wizard screen.
B
C
A
