D292104.9a.fm System Alarm Messages
Chapter 7: Troubleshooting 7-11

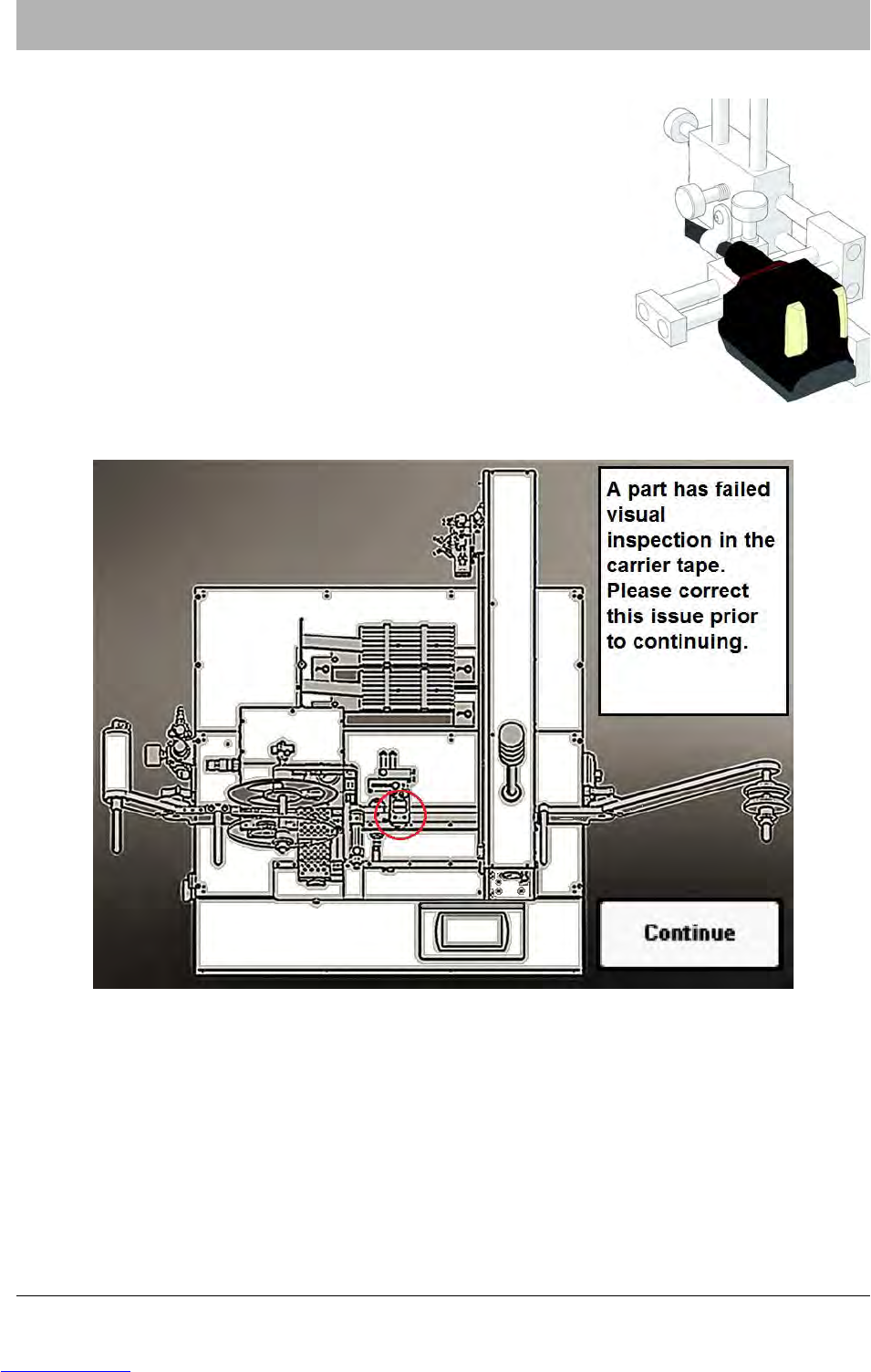

Vision Error System Alarm
The 2D Inspection System is mounted on the Taper between the
place point and the Sealer. It inspects parts for mark and orienta-
tion. It also detects empty pockets
If the 2D Inspection System detects an inspection error, the 2D
Inspection System Alarm will be activated. Tape advance stops,
a beep sounds and a warning appears on the HMI.
To clear the Vision Error system alarm, re-orient or replace the failed part under the 2D Inspec-
tion Camera. Press CONTINUE to clear the alarm and resume operation.
Downloaded from www.Manualslib.com manuals search engine
7-12 TM-401 User’s Guide
System Alarm Messages D292104.9a.fm

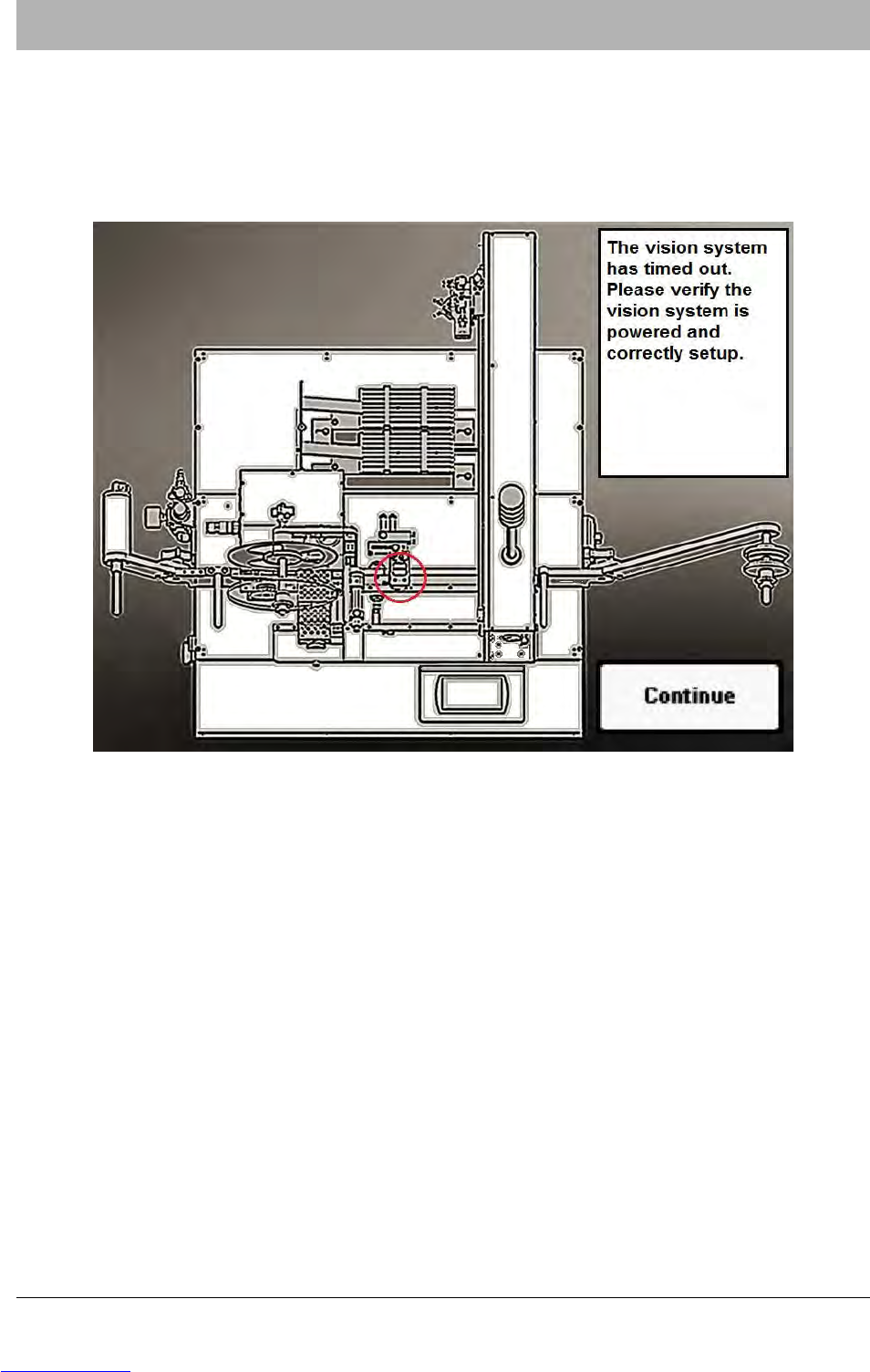

Vision Timeout System Alarm
If the 2D Inspection System fails to inspect a part within a preset time period, the Vision System
Timeout System Alarm will be activated. Tape advance stops, a beep sounds and a warning
appears on the HMI.
To clear the Vision System Timeout system alarm, ensure the 2D Inspection Camera is con-
nected to power and setup correctly. Press CONTINUE to clear the alarm and resume operation.
Downloaded from www.Manualslib.com manuals search engine
D292104.9a.fm System Alarm Messages
Chapter 7: Troubleshooting 7-13

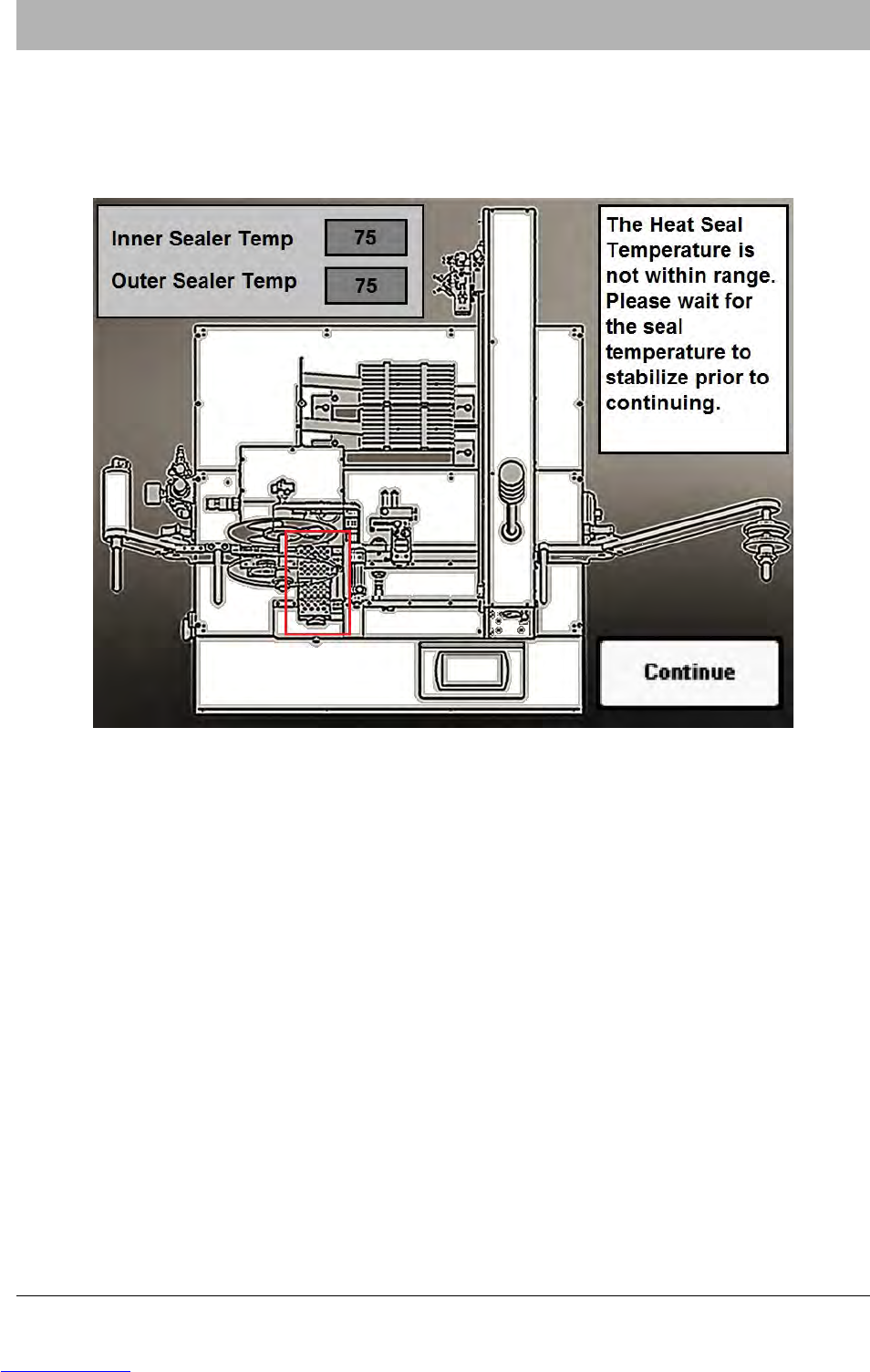

Temperature Out of Range System Alarm
When Heat Seal is enabled and the Heat Shoe temperatures are either too hot or too cold, a
Heat Seal Temperature Out of Range system alarm will activate.
When this occurs, tape advance stops, a beep sounds and a warning appears on the HMI.
To clear the Heat Seal Temperature Out of Range System Alarm, wait for the heat shoes to reach
their set point and then press CONTINUE to clear the alarm and resume operation.
