5-38 TM-403 User’s Guide

Configure Inspection D292104.16.fm

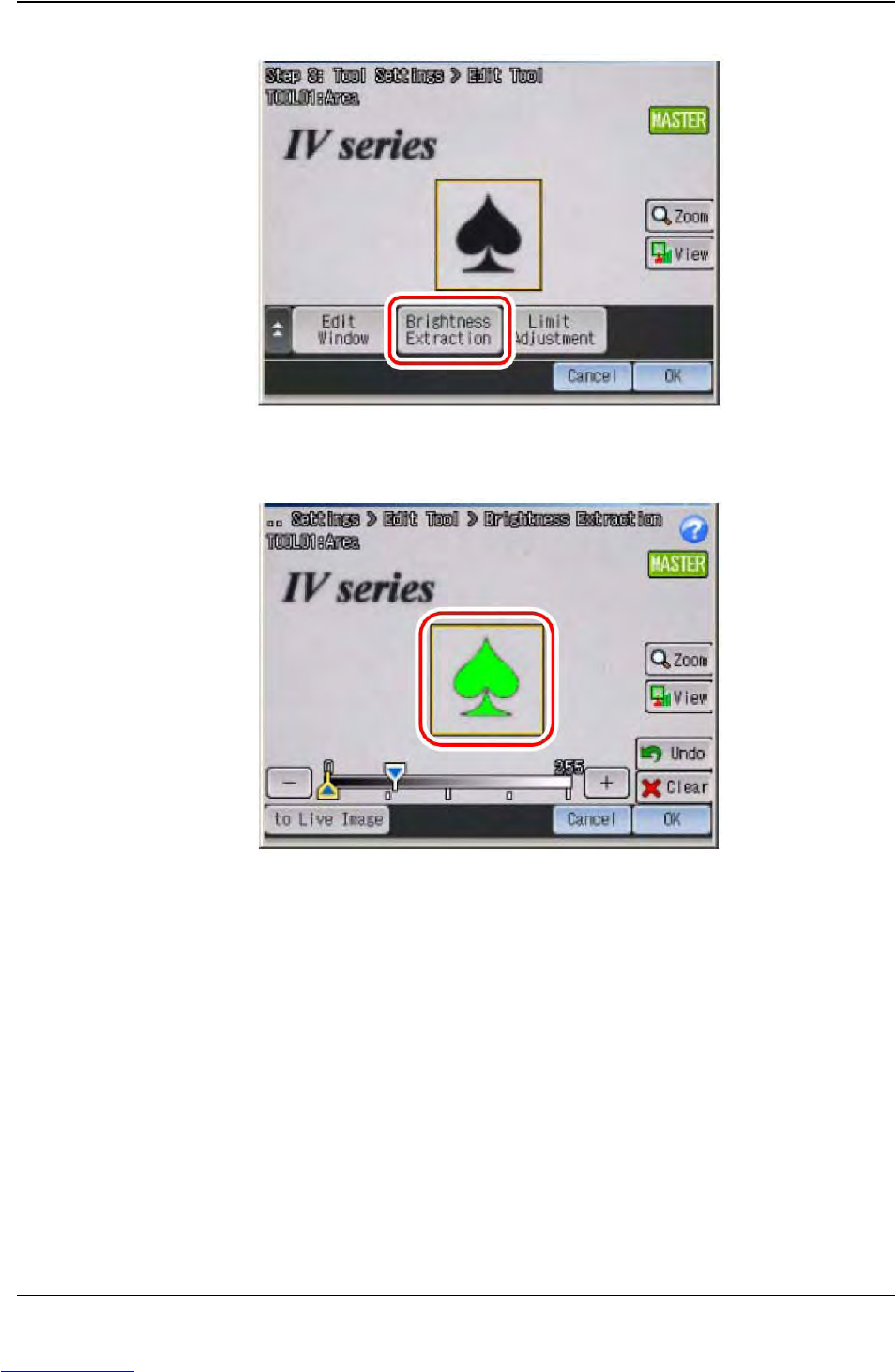

5. Touch the Brightness Extraction button.

6. Touch the brightness area to be the reference of judgment for the Area tool, then

touch OK.

Step 2:

Vision

Setup

CONFIGURE

MONITOR

Downloaded from www.Manualslib.com manuals search engine

D292104.16.fm Configure Inspection

Chapter 5: Setup 5- 39

7. Touch the Limit Adjustment button.

8. Set the threshold to judge OK and NG, then touch OK. The display will return to the

main screen for the Color Area/Area tool.

9. Touch OK, then touch Next to proceed to “STEP4”.

Step 2:

Vision

Setup

CONFIGURE

MONITOR

Downloaded from www.Manualslib.com manuals search engine

5-40 TM-403 User’s Guide

Configure Inspection D292104.16.fm

Setup Position Adjust Detection Tool

1. Touch the Add Tool button.

2. Touch the Pos.Adj. button.

3. Touch the Edit Window button.

Step 2:

Vision

Setup

CONFIGURE

MONITOR
