D292104.9a.fm System Alarm Messages

Chapter 7: Troubleshooting 7-15

Low Cover Tape System Alarm

The Low Cover Tape sensor is located on the Cover Tape Arm. It

detects when the cover tape supply on the Cover Tape Reel is

below a preset minimum.

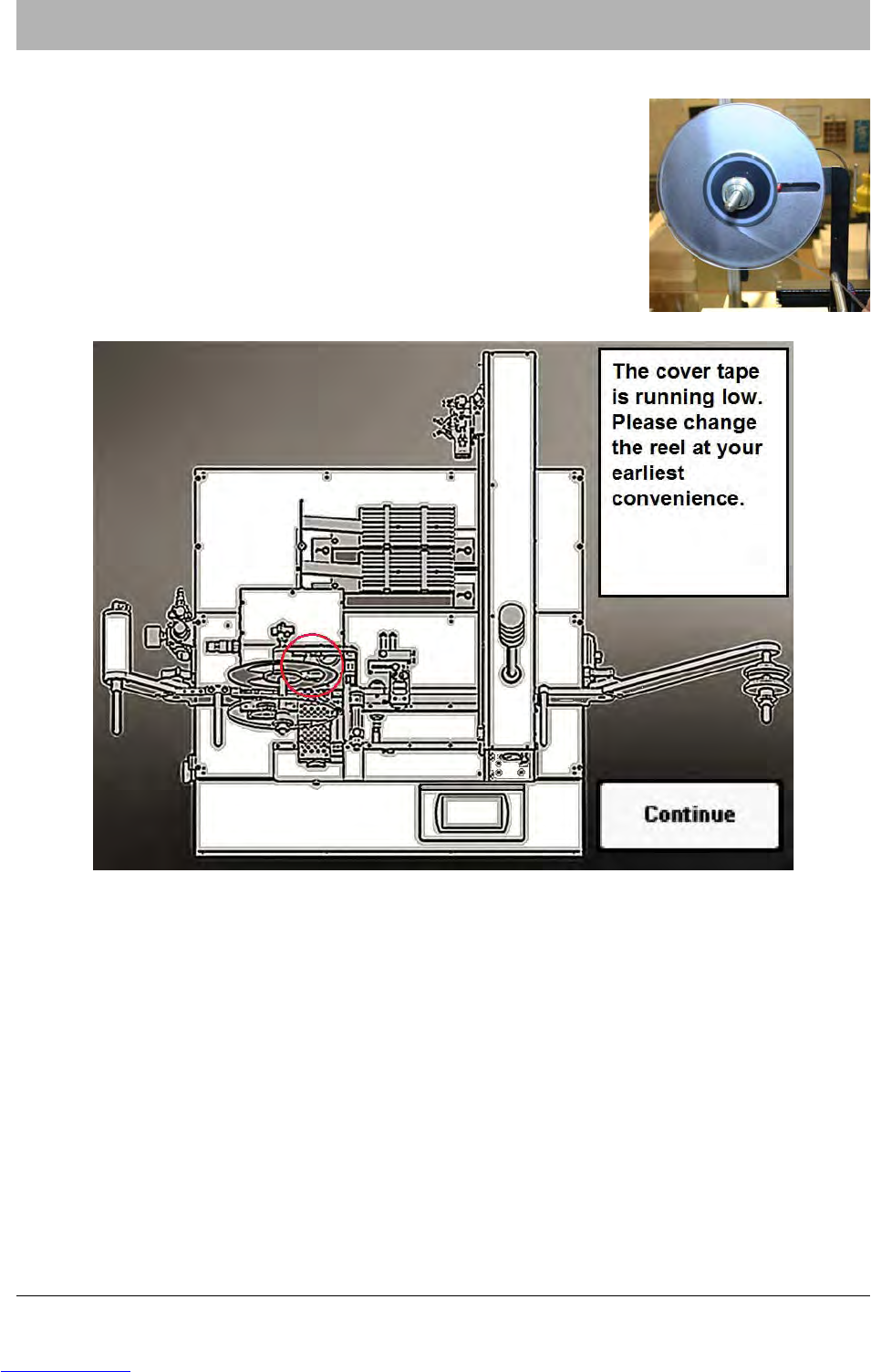

If an operator attempts to start a job when the cover tape level is

below the sensor, operation will not begin. Instead a beep will

sound and a Low Cover Warning message will appear on the

HMI.

The operator can either resolve the warning by loading a full reel of cover tape or ignore the

warning and push START again to continue with the current level of cover tape.

Note: The Low Cover Tape warning will only appear once during a job. If the user ignores

the message and continues operation, the TM-401 will continue taping until the job is fin-

ished or the cover tape is empty.

Downloaded from www.Manualslib.com manuals search engine

7-16 TM-401 User’s Guide

System Alarm Messages D292104.9a.fm

Job Quantity Inadequate System Alarm

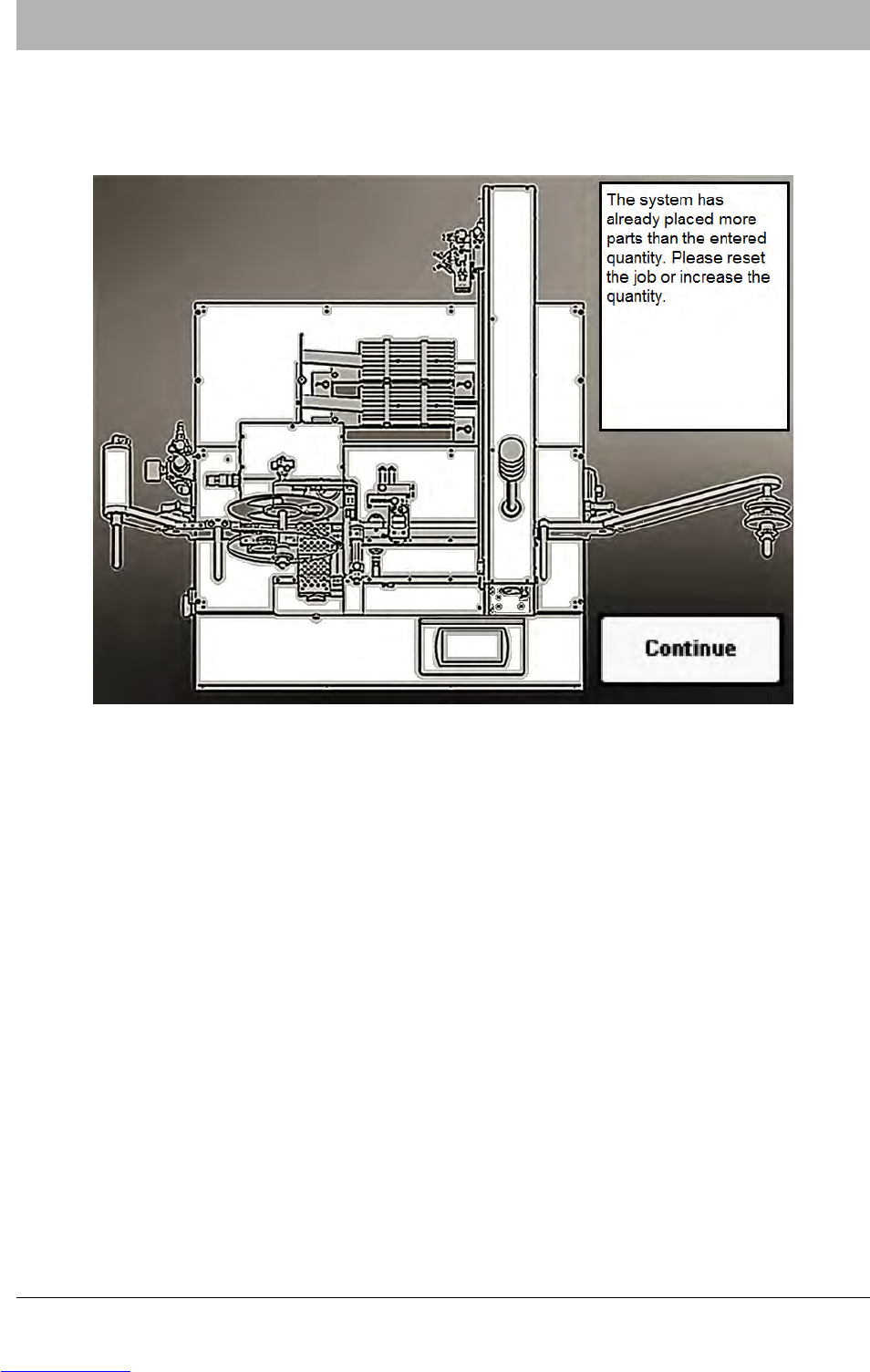

If during the course of a job, the operator changes the job quantity to less than the amount of

parts that have already been processed a Job Quanity Inadequate message will appear on the

HMI.

The operator can resolve the warning by either resetting the job or increasing the job quantity.

Push Continue to clear the alarm message and resume processing.

Downloaded from www.Manualslib.com manuals search engine

D292104.9a.fm System Alarm Messages

Chapter 7: Troubleshooting 7-17

Job Completed System Alarm

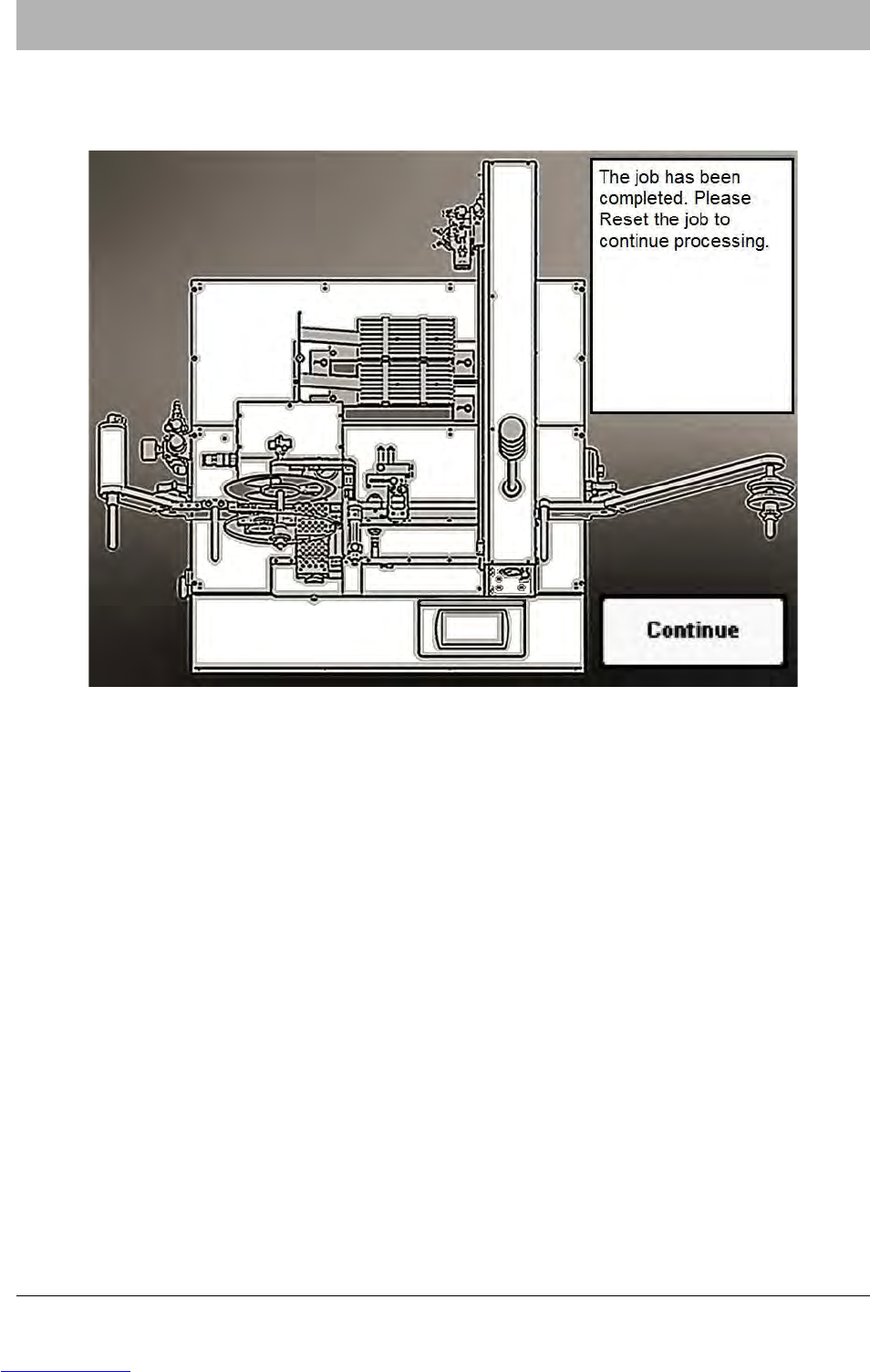

If the operator completes a job and then attempts to run the same job again without resetting the

job, a Job Completed System Alarm will appear on the HMI.

The operator can resolve the alarm by resetting the job. Push Continue to clear the alarm mes-

sage and resume processing.
