D292104.6.fm Job Tab
Chapter 3: Human Machine Interface 3-15
In the photo below, a part is shown at the pick position as viewed from the front of
the machine.
• If rotation is set at 0, the part will be placed in the same orientation as it was
picked.
• If rotation is set at -90, the part will be rotated 90 degrees clockwise prior to
placement.
• If rotation is set at +90, the part will be rotated 90 degrees counter-clockwise
prior to placement.
Press the right Arrow Key to move to the next Job Wizard screen.
A. Test the job settings, using the Pick Part and Place Part buttons to pick and place
parts.
B. If adjustment are required, use the left Arrow key to return to the desired step and
adjust settings until the TM-401 picks and places parts as desired,
-90
0
+90
Rotation Options
Job Wizard Step 13
Downloaded from www.Manualslib.com manuals search engine
3-16 TM-401 User’s Guide
Job Tab D292104.6.fm
Press the right Arrow Key to move to the next Job Wizard screen.

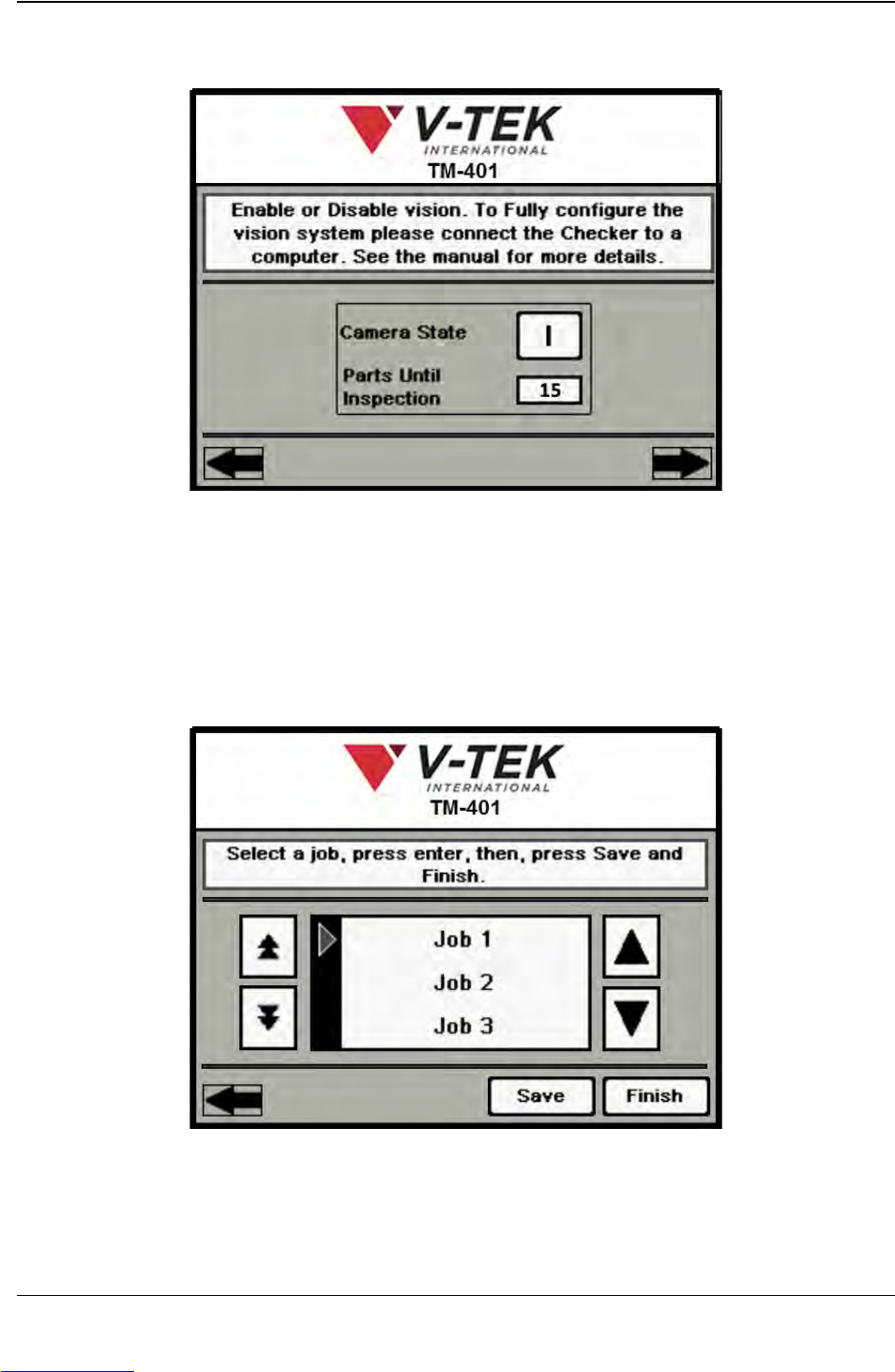

A. Select the Camera State to ON ( I ) or OFF (O) as desired.
B. If the camera is ON, enter the number of pockets between the Place point and the
Inspection point in the Parts Until Inspection field. Begin the count with the Place
position as 0 so the Place pocket is not included in the count.
Press the right Arrow Key to move to the final Job Wizard screen.

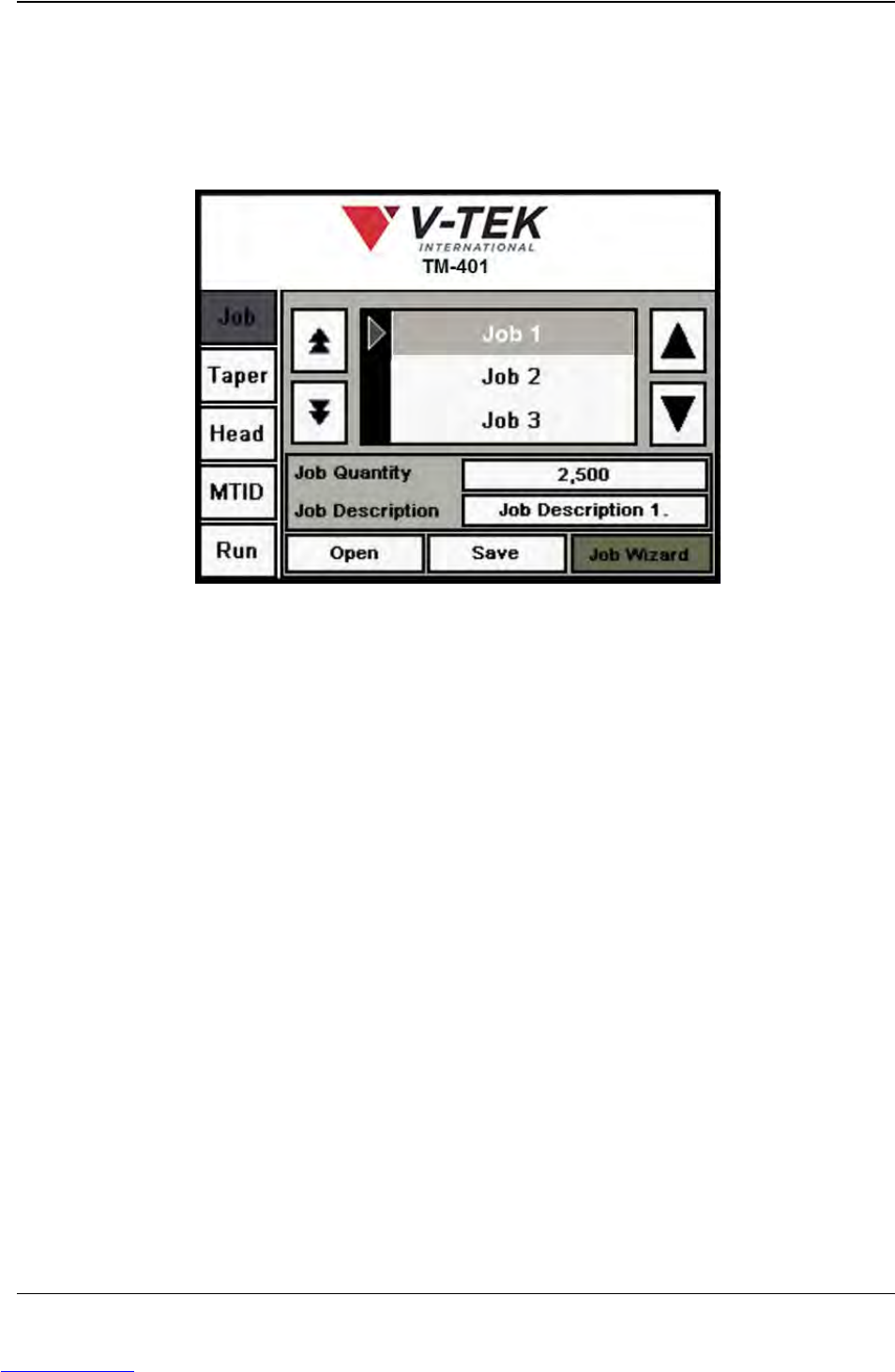

A. Browse through the Job Library using the Up/Down Arrow keys to move up or
down through the list. To select a Job Name from the list, press the Enter key.
A
B
Job Wizard Step 14
A
B
C
Job Wizard Step 15
Downloaded from www.Manualslib.com manuals search engine
D292104.6.fm Job Tab
Chapter 3: Human Machine Interface 3-17
Note: The Save function will overwrite the information stored for the currently selected
job. Therefore, it is important to select the desired job prior to pressing the Save button.
B. Press the Save button to save job settings to the selected job name.
C. Press Finish to close the Job Wizard and return to the Job Tab.
