5-6 TM-403 User’s Guide Connect Vision D292104.16.fm 3. Double click Internet Protocol ve rsion4 (TCP/IPv4) 4. Ensure Obtain an IP address automatically is selected. Click OK . Step 1: Vision Setup CONNECT LAPT OP Downlo…
D292104.16.fm Connect Vision
Chapter 5: Setup 5- 5
Connect Computer
Follow the steps below to connect the Keyence IV-G Camera to the vision computer.
(Proceed to the next section if using the Keyence Monitor instead of a computer.)

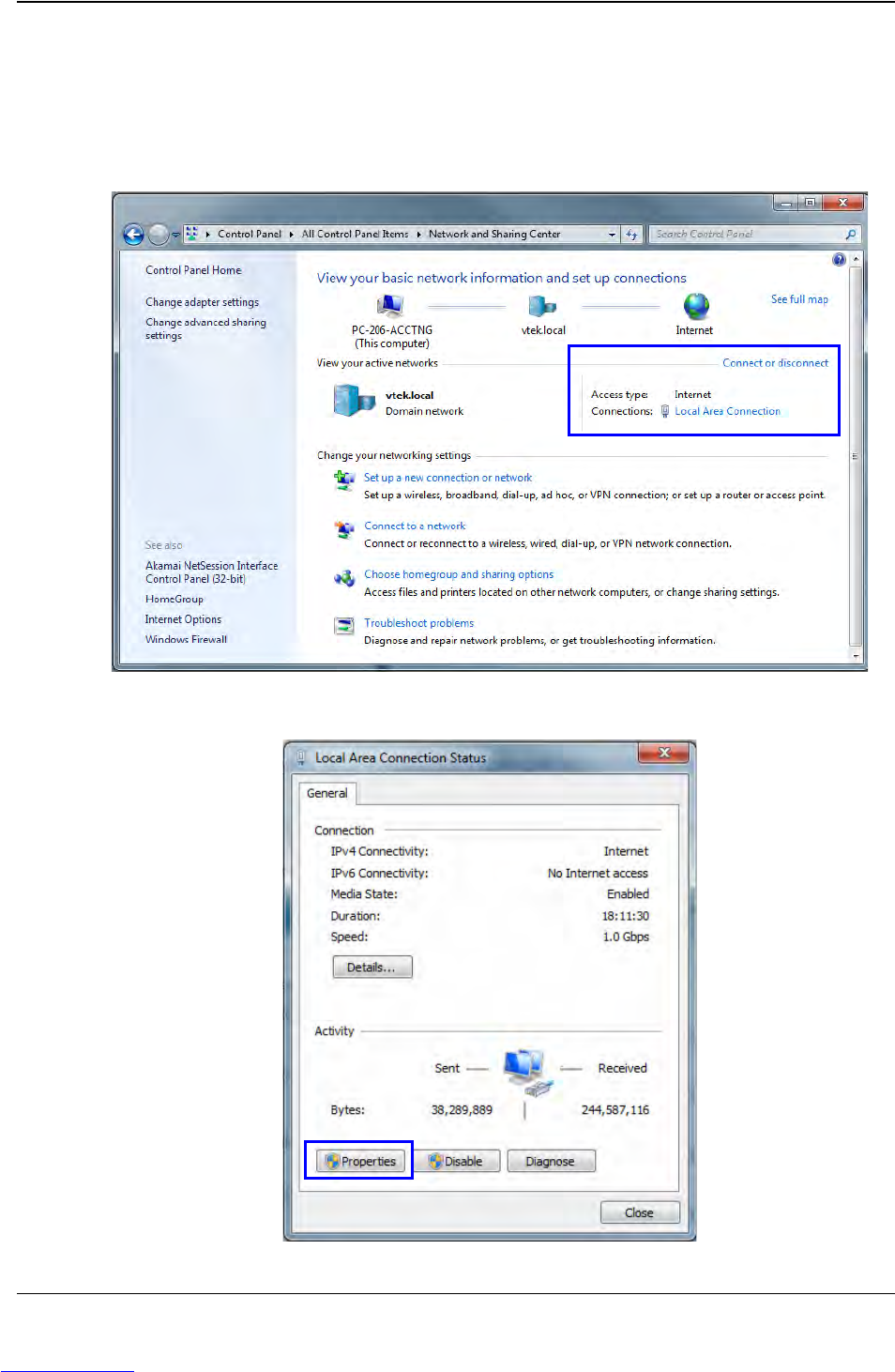

1. Open the Control Panel, then select Network and Sharing Center. In the Connect
or Disconnect section, click Local Area Connection.
2. The Local Area Connection Status window will open. Click Properties.
Step 1:
Vision
Setup
CONNECT
LAPTOP
Downloaded from www.Manualslib.com manuals search engine
D292104.16.fm Connect Vision
Chapter 5: Setup 5- 7
5. To select a stored inspection or configure a new inspection, open
the Keyence Inspection System software by double-clicking on
the IV Navigator icon on the desktop.
6. Select Direct Connection.
7. The following pop-up will appear. Press Connect.
Step 1:
Vision
Setup
CONNECT
LAPTOP
