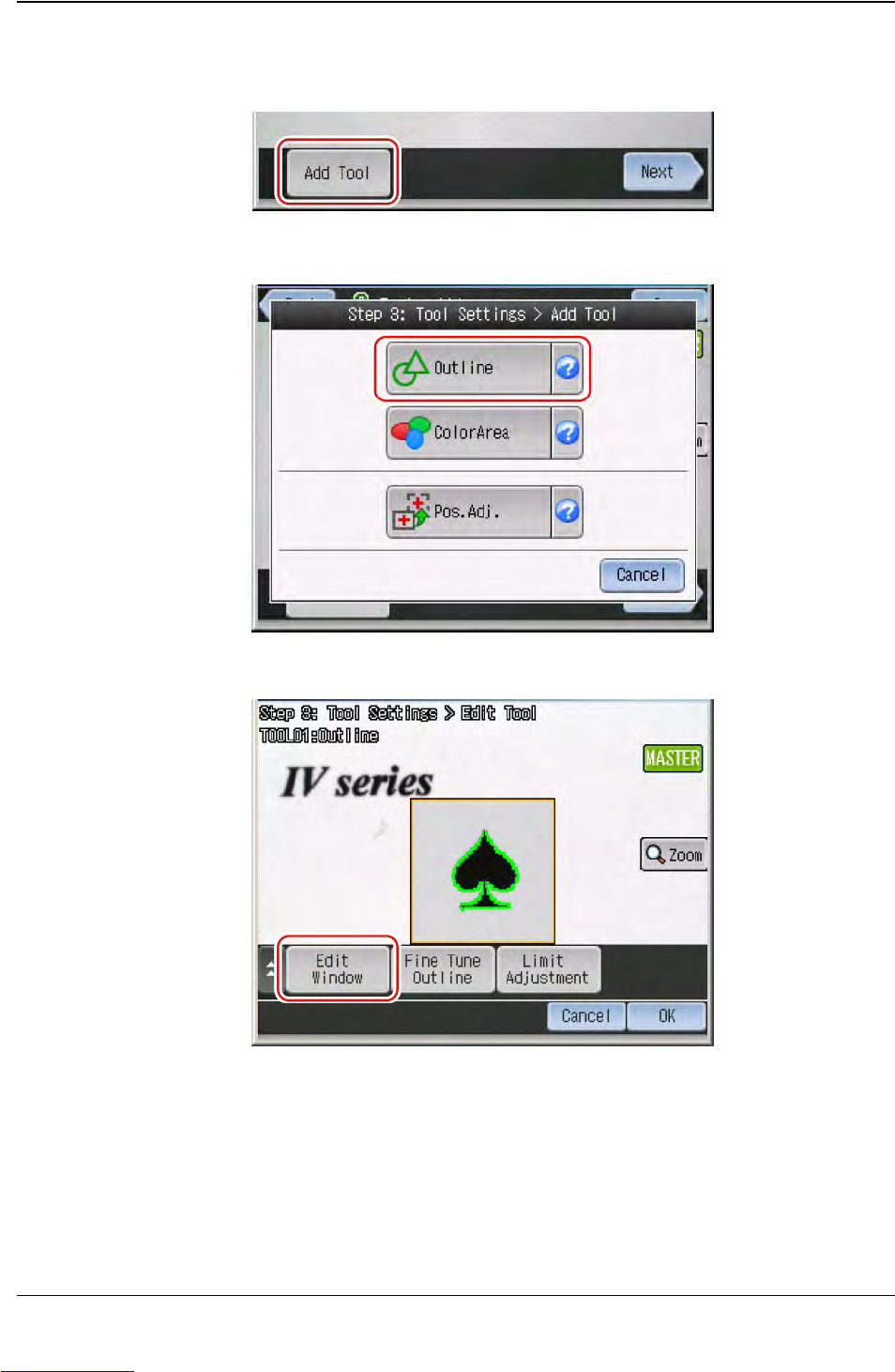

5-34 TM-403 User’s Guide Configure Inspection D292104.16.fm Setup Outline Detection T ool 1. T ouch the Add T ool button. 2. Select Outline . 3. T ouch Edit W indow . Step 2: Vision Setup CONFIGURE MONIT OR Downloaded fr…
D292104.16.fm Configure Inspection
Chapter 5: Setup 5- 33

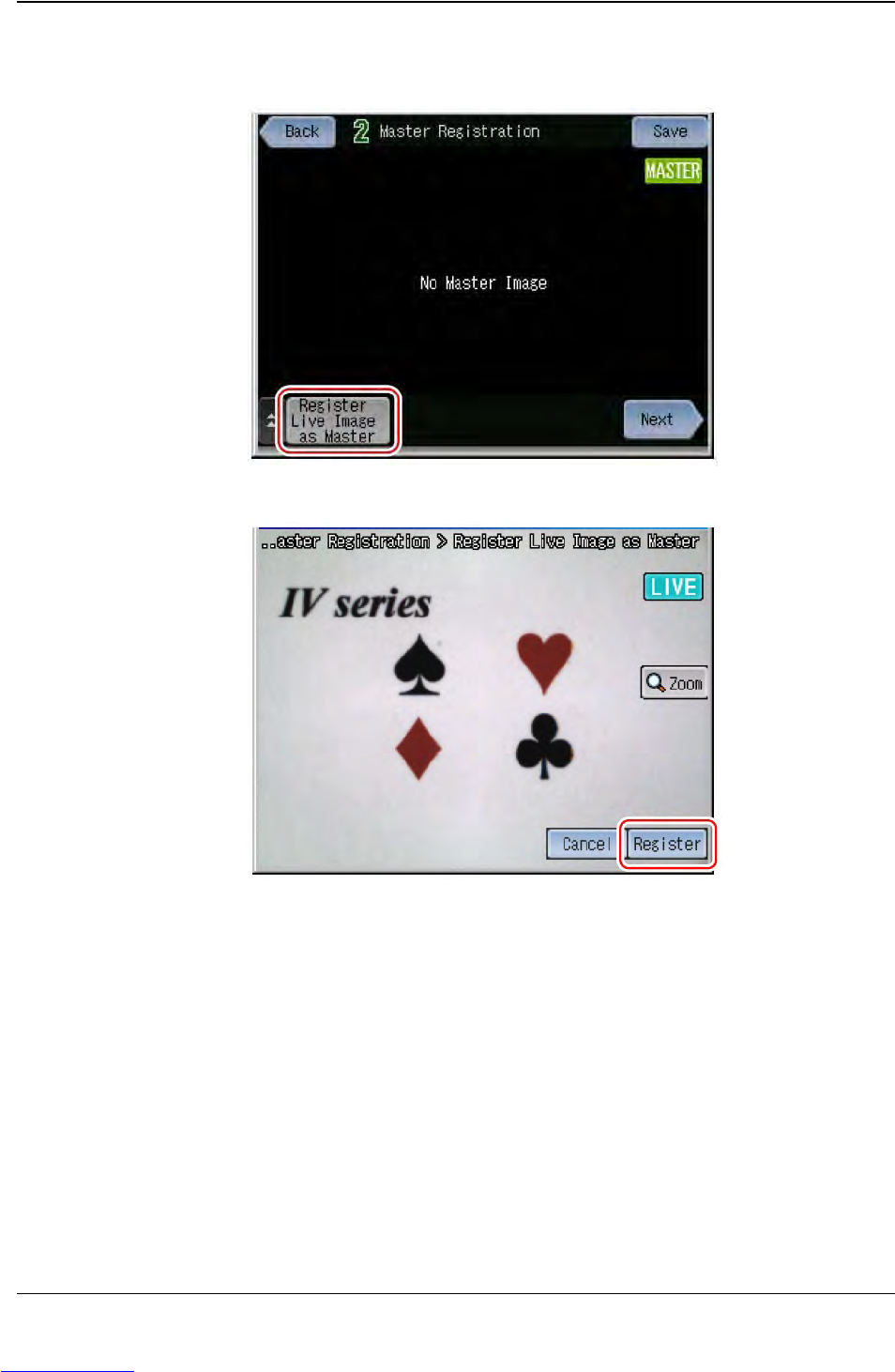

Register Master Image
1. After setting the image optimization, press Register Live Image as Master.
2. Image the target and touch the Trig button.
3. Check the image displayed on the monitor and touch the Register button. Touch
OK.
4. Touch Next to proceed to “STEP3”.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
Downloaded from www.Manualslib.com manuals search engine
D292104.16.fm Configure Inspection
Chapter 5: Setup 5- 35

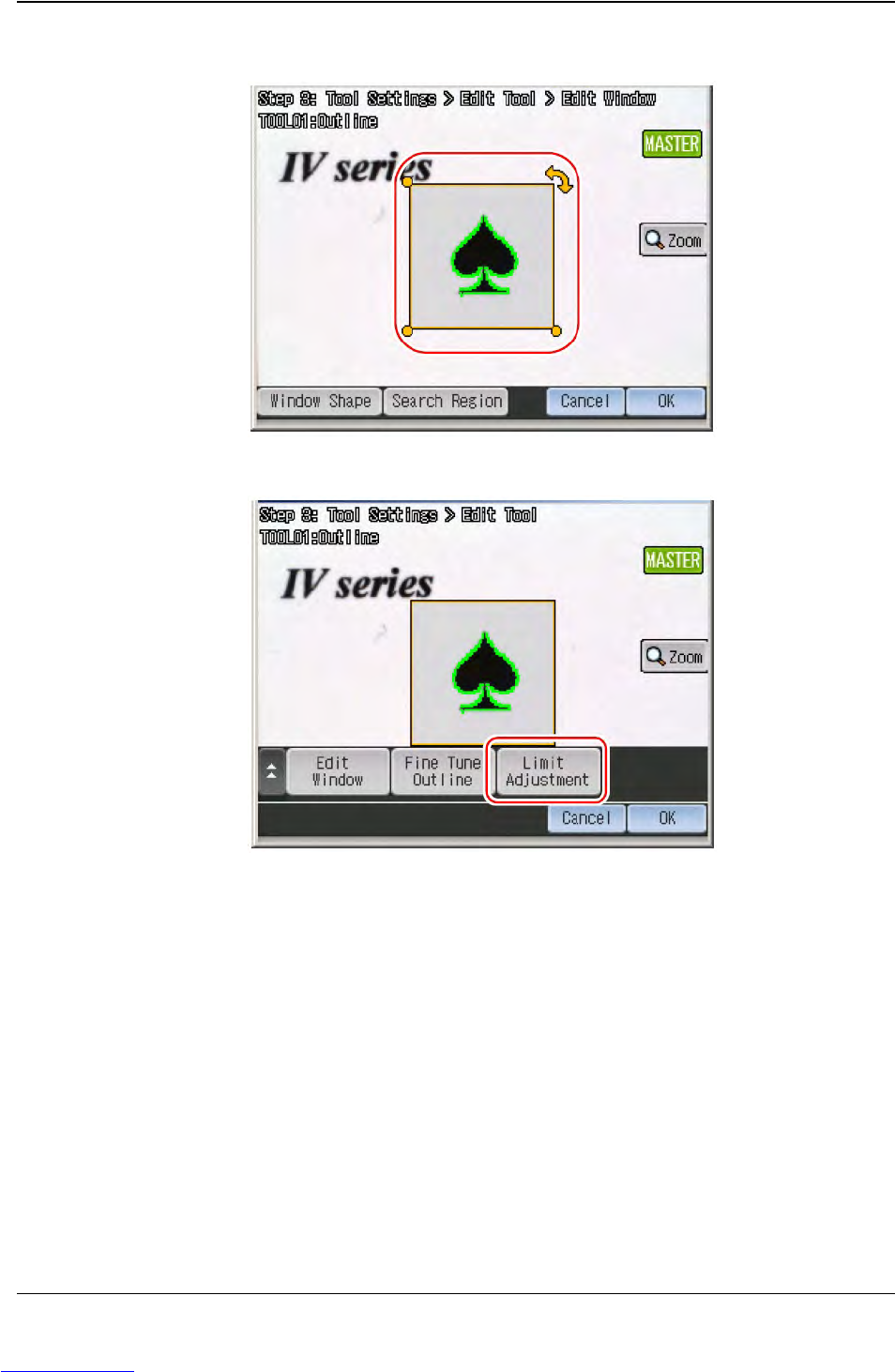

4. Set the position, size, and the angle of the tool window. The detected outline will be
displayed in green. After the setting is completed, touch OK.
5. Touch the Limit Adjustment button.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
