6-8 TM-401 User’s Guide

Preparing to Run a Pre-programmed Job D292104.8a.fm

Select Job

When a job is already set up and saved in the machine’s memory, the first step in running

the job is to call it up with the Job Select screen.

1. On the HMI, select the Job Tab

2. Browse through the Job Library to locate the desired job by using the up and down

Arrow buttons.

3. Press Open to open the selected job in the Run Tab.

Step 5:

Select

Job

Downloaded from www.Manualslib.com manuals search engine

D292104.8a.fm Preparing to Run a Pre-programmed Job

Chapter 6: Operation 6- 9

Setup the Pick Head

1. Ensure the correct Nozzle and Nozzle Tip are installed for the job that will be run.:

Note: See the Chapter 4: Setup for nozzle

change procedures.

2. Open the Head Tab on the HMI.

Step 6:

Setup

Pick Head

Downloaded from www.Manualslib.com manuals search engine

6-10 TM-401 User’s Guide

Preparing to Run a Pre-programmed Job D292104.8a.fm

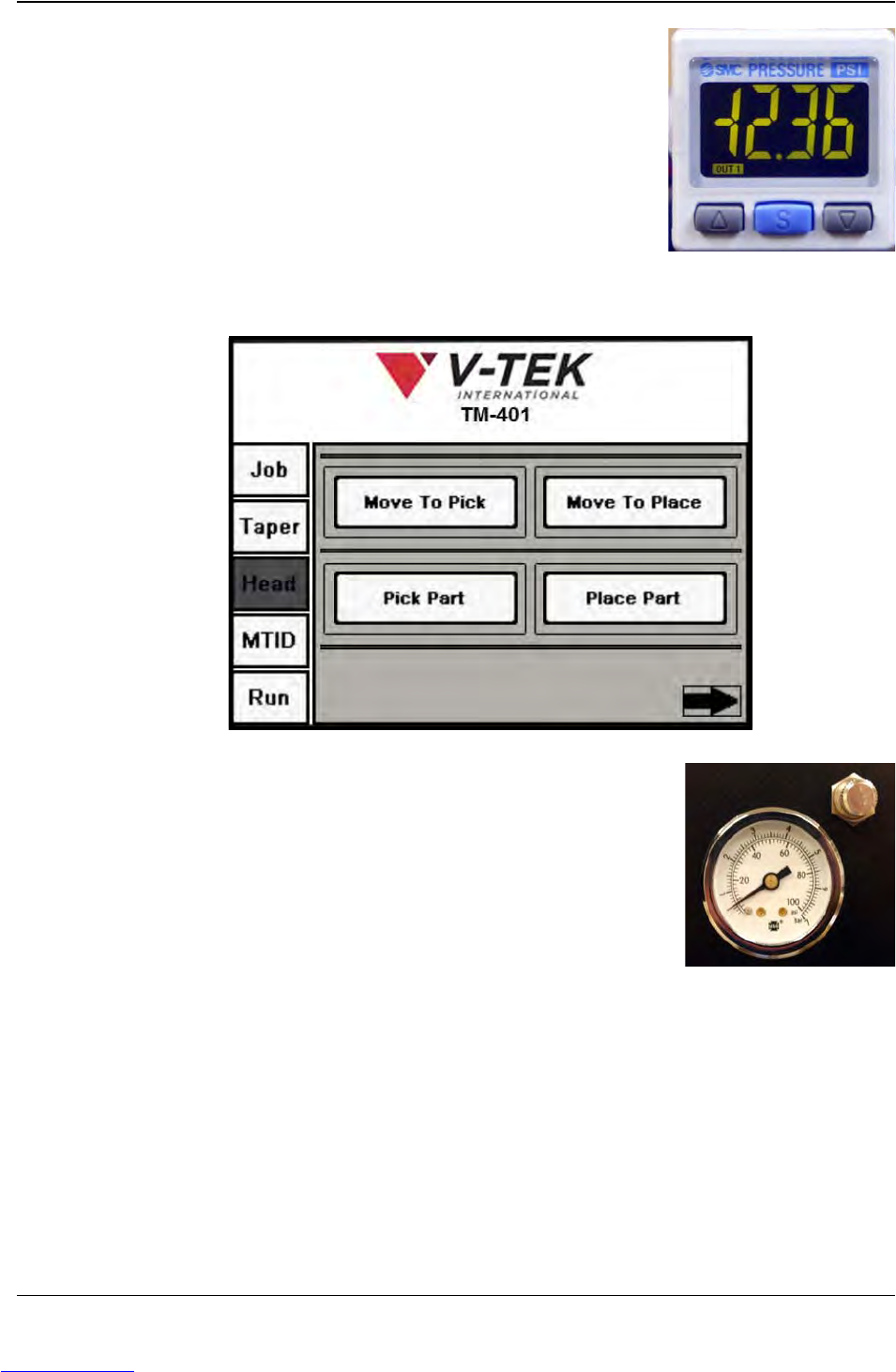

3. Press Move To Pick, then press Pick Part. Observe the

vacuum sensor which is located on top of the head to

see if it is set correctly for the current part. The numbers

should be lit in green with components on the nozzle

and red if components are not.

Note: See the Chapter 6: Troubleshooting for vacuum

sensor adjustment procedures.

4. Return to the Head Setup Tab. Press Move To Place, then press Place Part.

Check that the Blow Off Pressure is set correctly for the

current part. The Blow-off Pressure Gauge is located on

the front of the Pick Head Bridge. If components are not

dropping properly, loosen the locking nut and rotate to

adjust pressure levels. When the desired pressure level

is reached, tighten the locking nut.

Setup Vision

The TM-401 Vision System will automatically revert to the previous inspection. If the

same part is being run, there is no need to retrain the camera. Proceed to Step 8. If a dif-

ferent job/inspection is being run, follow the setup instructions in Chapter 4: Setup.

Step 7:

Setup

Vision
