4-24 TM-401 User’s Guide Configure HMI Settings D292104.7a.fm 12. Set Rot ation Angle a. Enter the placement ang le which was manually set in S tep 7. The options are 0, -90 and +90. • If rotation is set at 0 , the part …
D292104.7a.fm Configure HMI Settings
Chapter 4: Setup 4- 23
set at the Place position..
a. To manually set the Place Actuator to
the correct nozzle height, press Place
Extend
b. Use a 2.5mm hex wrench to hold the
Actuator Adjustment Screw in place
from the bottom, while loosening the
Jam Nut on top of the Actuator
Adjustment Screw with an 8mm open
ended wrench. Lower the Nozzle until
the part is barely touching the top of
the pocket in the Place Location.
c. Tighten the Jam Nut.
d. Press Place Retract to retract the Nozzle to a safe height.
e. Press the right Arrow Key to move to the next Job Wizard screen.
Downloaded from www.Manualslib.com manuals search engine
4-24 TM-401 User’s Guide
Configure HMI Settings D292104.7a.fm
12. Set Rotation Angle

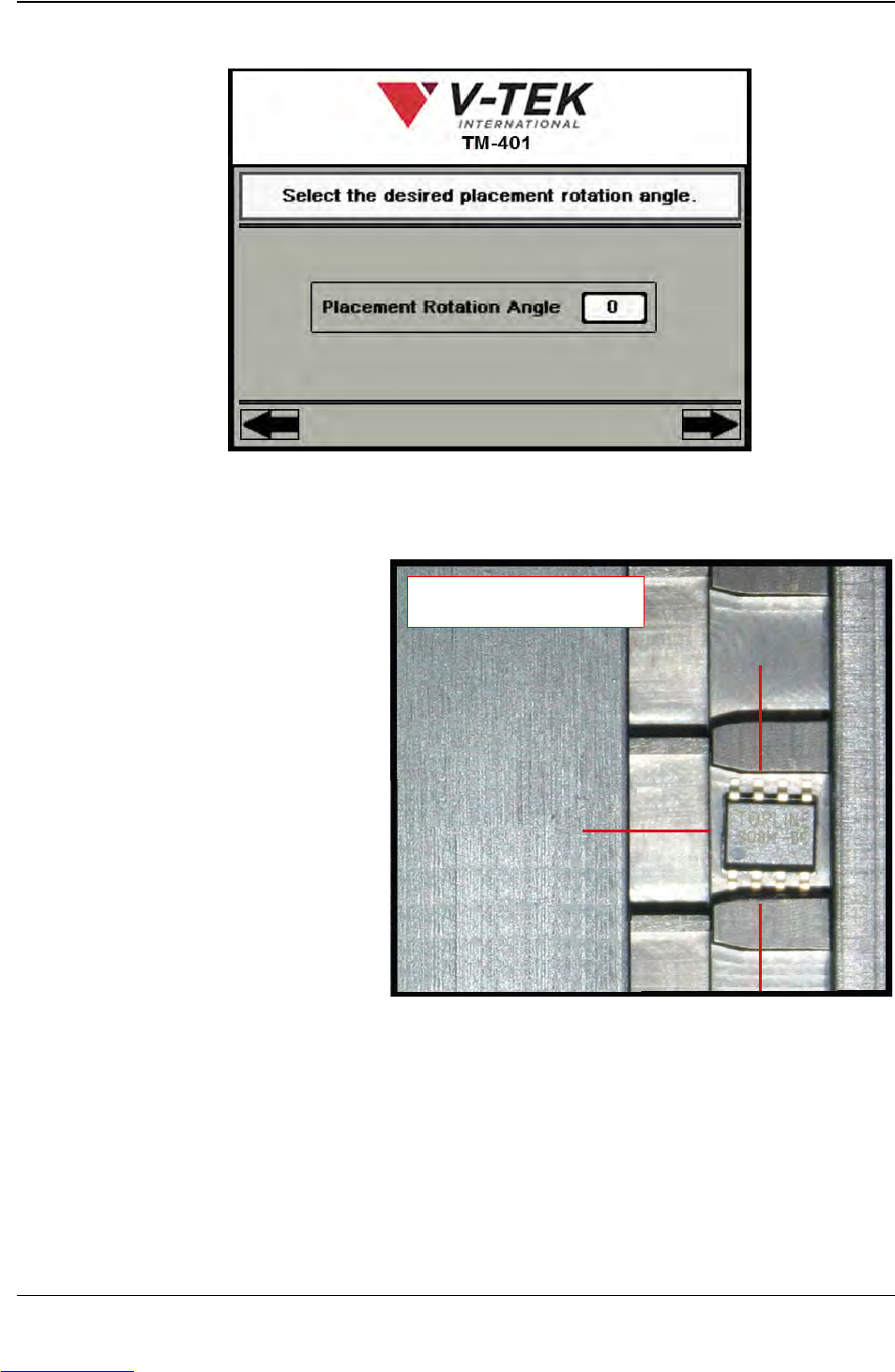

a. Enter the placement angle which was manually set in Step 7. The options are
0, -90 and +90.
• If rotation is set at 0,
the part will be placed
in the same orientation
as it was picked.
• If rotation is set at -90,
the part will be rotated
90 degrees clockwise
prior to placement.
• If rotation is set at +90,
the part will be rotated
90 degrees counter-
clockwise prior to
placement.
b. Press the right Arrow Key to move to the next Job Wizard screen.
Step 6:
Setup HMI
NOZZLE
-90
0
+90
Rotation Options
Downloaded from www.Manualslib.com manuals search engine
D292104.7a.fm Configure HMI Settings
Chapter 4: Setup 4- 25
13. Verify Job Settings

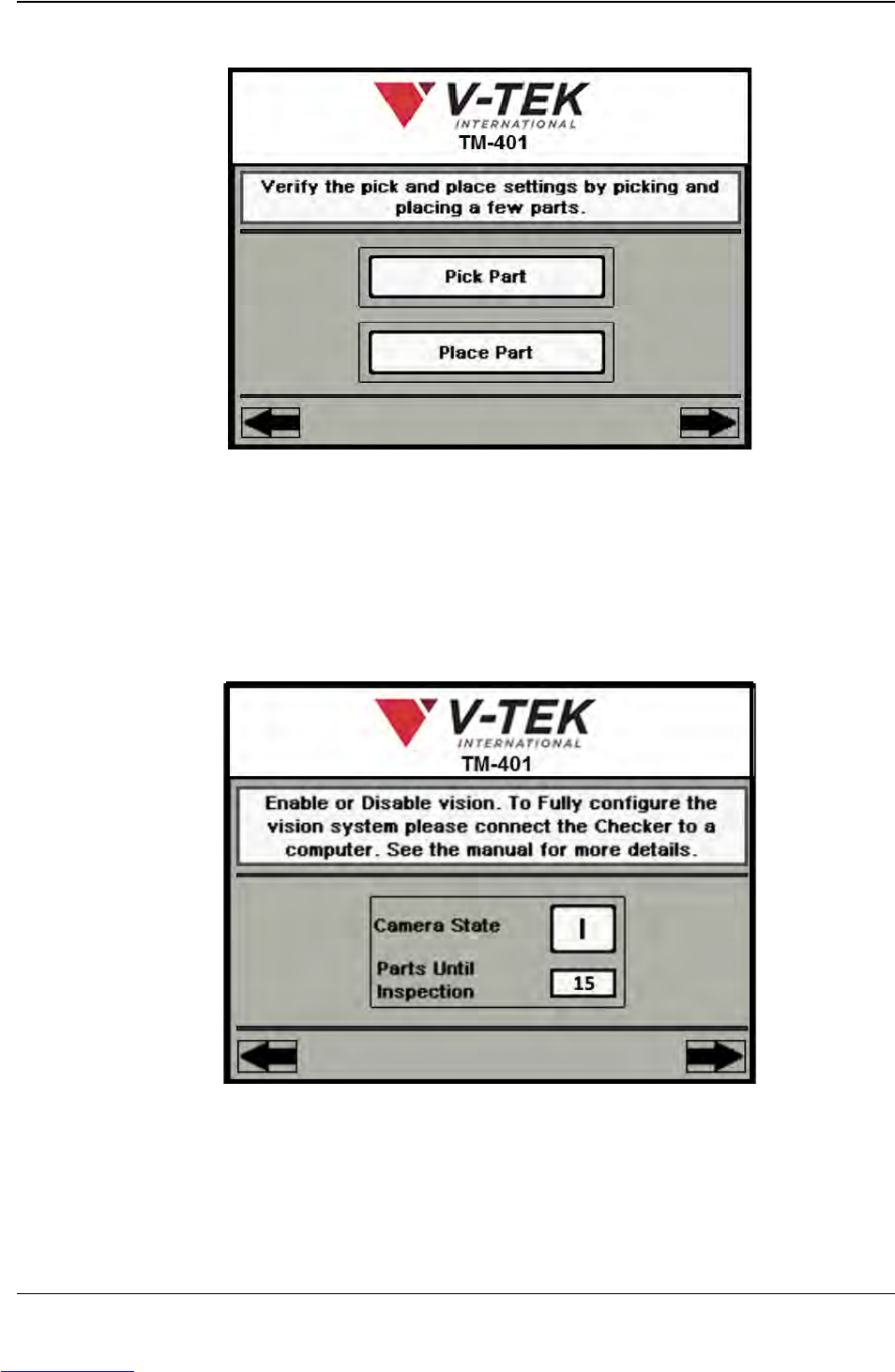

Test the job settings, using the Pick Part and Place Part buttons to pick and
place parts. If adjustments are required, use the left Arrow key to return to the
desired step and adjust settings. Press the right Arrow Key to move to the next
Job Wizard screen.
Note: Manually placed parts will be counted in the current job.
14. Vision Settings
a. Set Camera State to ON ( I ) or OFF (O).
b. If camera is enabled, enter number of Parts Until Inspection (do not include
part at Pick point.). Press the right Arrow Key to move to the final Job Wizard
screen
Downloaded from www.Manualslib.com manuals search engine
