3-18 TM-401 User’s Guide
Taper Tab D292104.6.fm
Ta p e r Ta b
The Taper Tab allows the user to adjust taper settings by leading them through four Taper Setup
screens. The first screen of the Taper Tab is shown below.
A. Tab Menu
B. Tape Settings
C. Taper Control Buttons
A. Press any tab in the Tab Menu to open that tab window.
B. Tape Speed is a percentage of the maximum velocity the carrier tape can be
advanced at. It can be set between 1-10.
Tape Pitch is determined by the carrier
tape selected. Use the Pitch Setting Guide
on the taper to determine the correct pitch.
Jog Step sets the distance in millimeters
the carrier tape will move forward or back-
ward each time a Jog button is pressed.
Note: The Jog Step field requires the value to be
entered in the following format: XX.XX. (i.e. 60.00).
C. The Jog buttons in the Index Settings section jog the tape forward or backward
along the Taper Track.
The Pocket Advance button advances the tape one pocket at a time. The speed
at which the tape advances is set in the Tape Speed field.
A
B
C
Taper Screen 1
Downloaded from www.Manualslib.com manuals search engine
D292104.6.fm Taper Tab
Chapter 3: Human Machine Interface 3-19
The Continuous Advance button advances the tape through the Taper and onto
the take-up reel. It will continue to advance until Continuous Advance is pressed
a second time.
Note: Continuous Advance is useful for creating a trailer or loading tape at the begin-
ning of a job.
Pressing the right Arrow button opens the next Taper Setup screen which focuses on Vision
Setup.

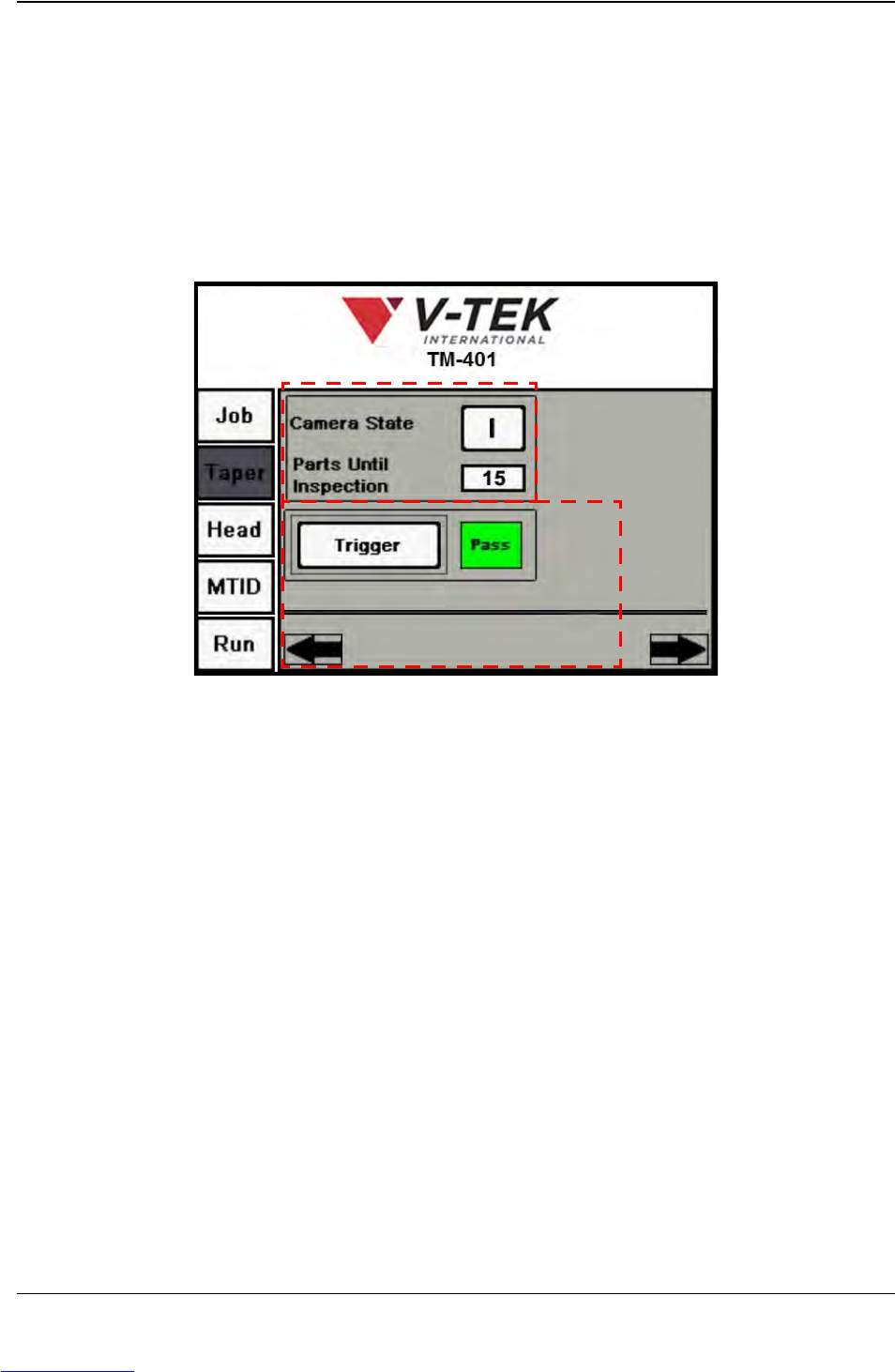

A. The Camera State button toggles between ON ( I ) and OFF (O).
The Parts Until Inspection value is the number of pockets between the Place
point and the Inspection point. Begin the count at the Place position at zero, so
the Place position is not included.
B. Pressing the Trigger button triggers the 2D Camera to inspect the part which is
currently at the Inspection point. The box to the right of the Trigger button will dis-
play a green PASS message or a red FAIL message.
Note: For more detailed inspection configuration and procedures, see the Cognex
Checker User’s Guide which was included with the TM-401.
Pressing the right Arrow button opens the next Taper Setup screen.
Taper Screen 2
A
B
Downloaded from www.Manualslib.com manuals search engine
