Introduction D292104.2.fm ii
Introduction
Thank you for purchasing the TM-401 Component Handling Machine. The TM-401 is a table-
top pick and place tape and reel machine with vision, designed for use in production environ-
ments for electronic devices. This machine accepts devices loaded in tubes, and a dual tube
input option is available. It features a 2D over tape vision system for component verification. A
touch screen interface simplifies the setup process, and minimizes set up time and operator
intervention for fast, easy functioning.
Standard Features:
• Touch screen operator interface for easy setup and operation
• Single or Dual Tube input options
• Ability to rotate components +/-90° or 180°
• Output to tape
• Innovative universal adjustable heat and PSA sealer
• Software controlled advance movement of carrier tape (2mm to 144mm pitch)
• Adjustable track assembly for tape widths 8mm to 72 mm
• 2D Vision over tape inspection for Mark, Orientation and Empty Pocket Detection.
• User-friendly safety enclosure with multiple access points provides easy access with
minimal downtime
• Table-top machine with optional 80-20 frame
• Jam in Track and Low Cover Tape Detection automatic sensors
Downloaded from www.Manualslib.com manuals search engine
Theory of Operation D292104.2.fm iii
Theory of Operation

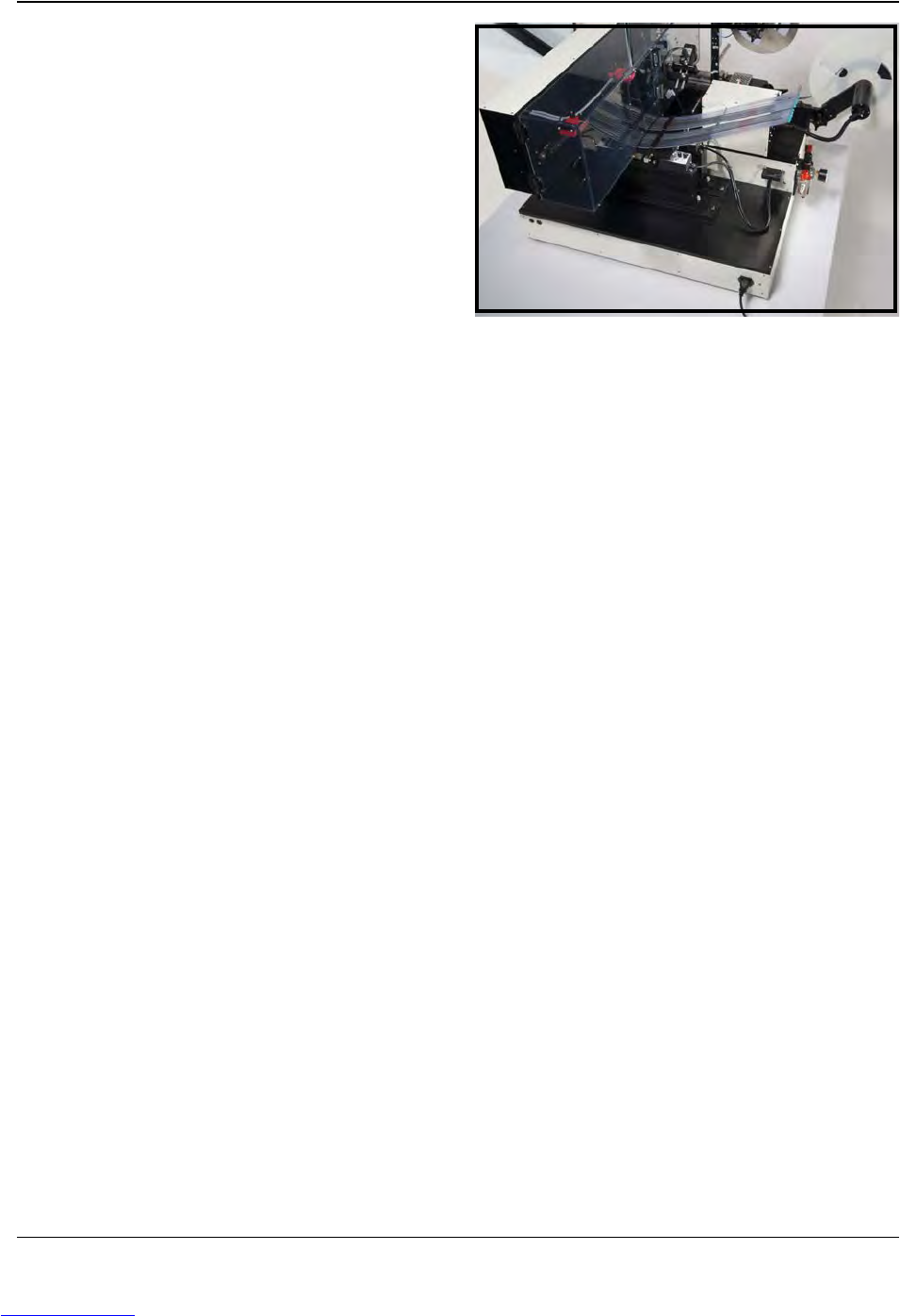

Operation of the TM-401 is simple. The opera-
tor loads the tube feeder and then configures
the job for the selected part using the TM-401’s
intuitive, touch screen Human Machine Inter-
face (HMI). Job configuration includes select-
ing and programming inspection criteria.
When the TM-401 is set in motion, the pick
head picks an individual part from the Tube
Feeder and places the part directly into a car-
rier tape pocket. The 2D Vision System detects
empty pockets and inspects placed parts for
mark and orientation prior to cover tape appli-
cation. Parts that fail Inspection stop operation
and trigger an error message, allowing the
user to correct the error before continuing
operation.
As the tape advances, it passes sensors which detect jams in tape. Once the carrier tape
reaches the TM-401 sealer assembly, cover tape is applied. The part is then sealed in the pocket
with either a Heat Seal or Pressure Sensitive Adhesive (PSA) cover tape. When the sealing pro-
cess is complete, the finished tape is routed onto a take-up reel.
During operation, the operator keeps the tube feeder supplied with parts and observes the
inspection process, adjusting operation and inspection settings as needed. In the event of 2D
inspection fails, the operator may re-orient or swap out parts from the output area as needed.
When tape reels are complete, the operator removes the full reel and replaces it with a new reel.
