D292104.8a.fm Preparing to Run a Pre- programmed Job Chapter 6: Operation 6- 5 2. Press the Home All Motors button. The motor homing sequence begins with the nozzle moving slowly upwards ( Z Axis movement). Af ter about …

6-4 TM-401 User’s Guide

Preparing to Run a Pre-programmed Job D292104.8a.fm

Preparing to Run a Pre-programmed Job

The initial set-up and configuration of a new job are covered in Chapter 4: Setup. This

chapter discusses the procedure for setting up existing jobs, running a job and routine

operator tasks.

Caution: Users should always wear protective eye wear when operating

or maintaining the TM-401.

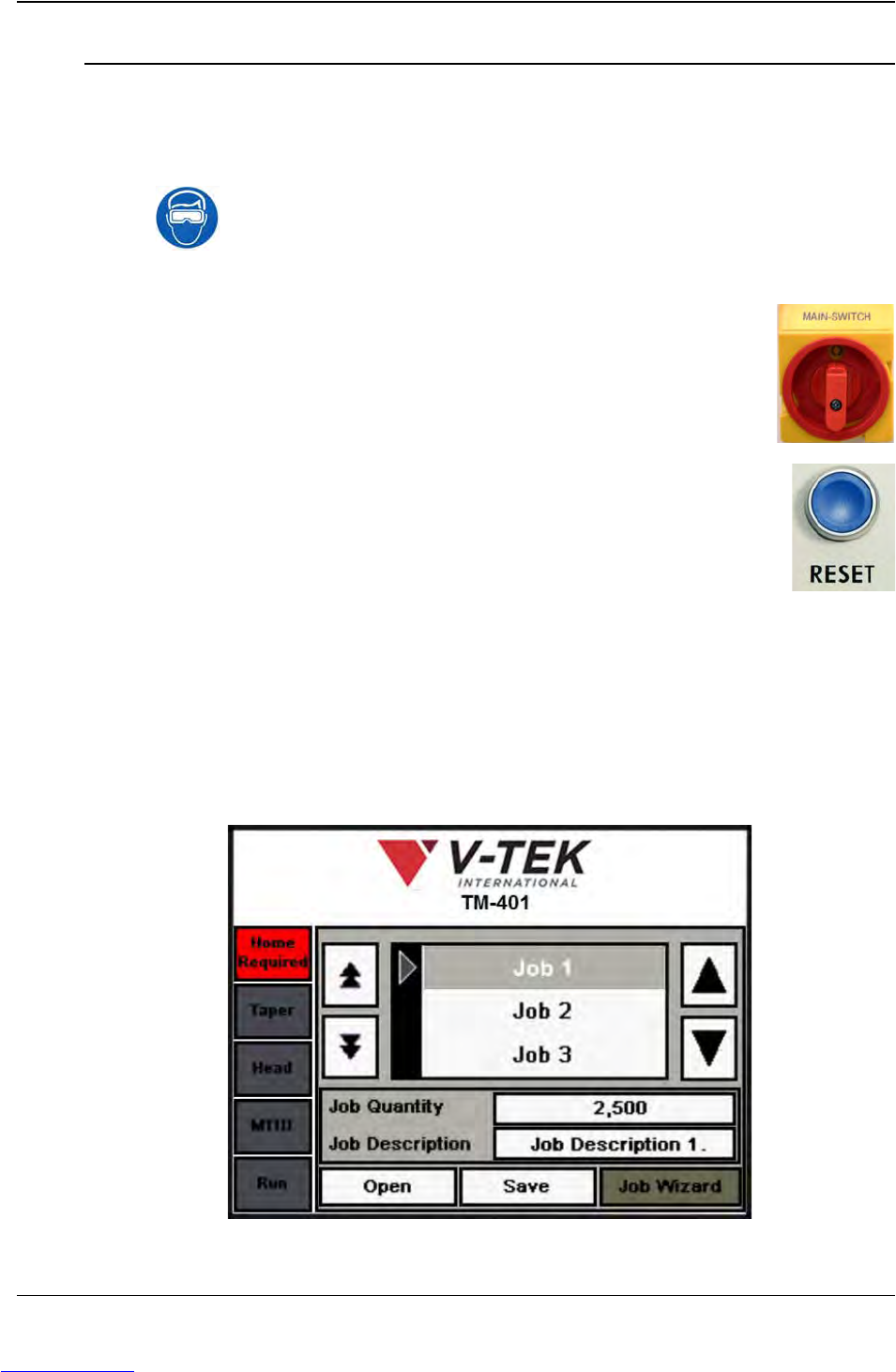

Power up the System

1. Power up the machine by turning the Main Power Switch, which is

located on the right side of the machine, to the ON position.

2. Press the blue Reset button on the left side of the machine.

Home Motors

Note: The TM-401 only needs to be homed once after each power up or emer-

gency stop. Once the motors have been homed, they remain homed until the

machine is powered down.

1. The HMI will open to the Job Tab with a red Home Required button at the top of

the Tab Menu and the other tab buttons grayed out. Press Home Required to

open the Homing Status window.

Step 1:

Power

Step 2:

Home

Motors

Downloaded from www.Manualslib.com manuals search engine

D292104.8a.fm Preparing to Run a Pre-programmed Job

Chapter 6: Operation 6- 5

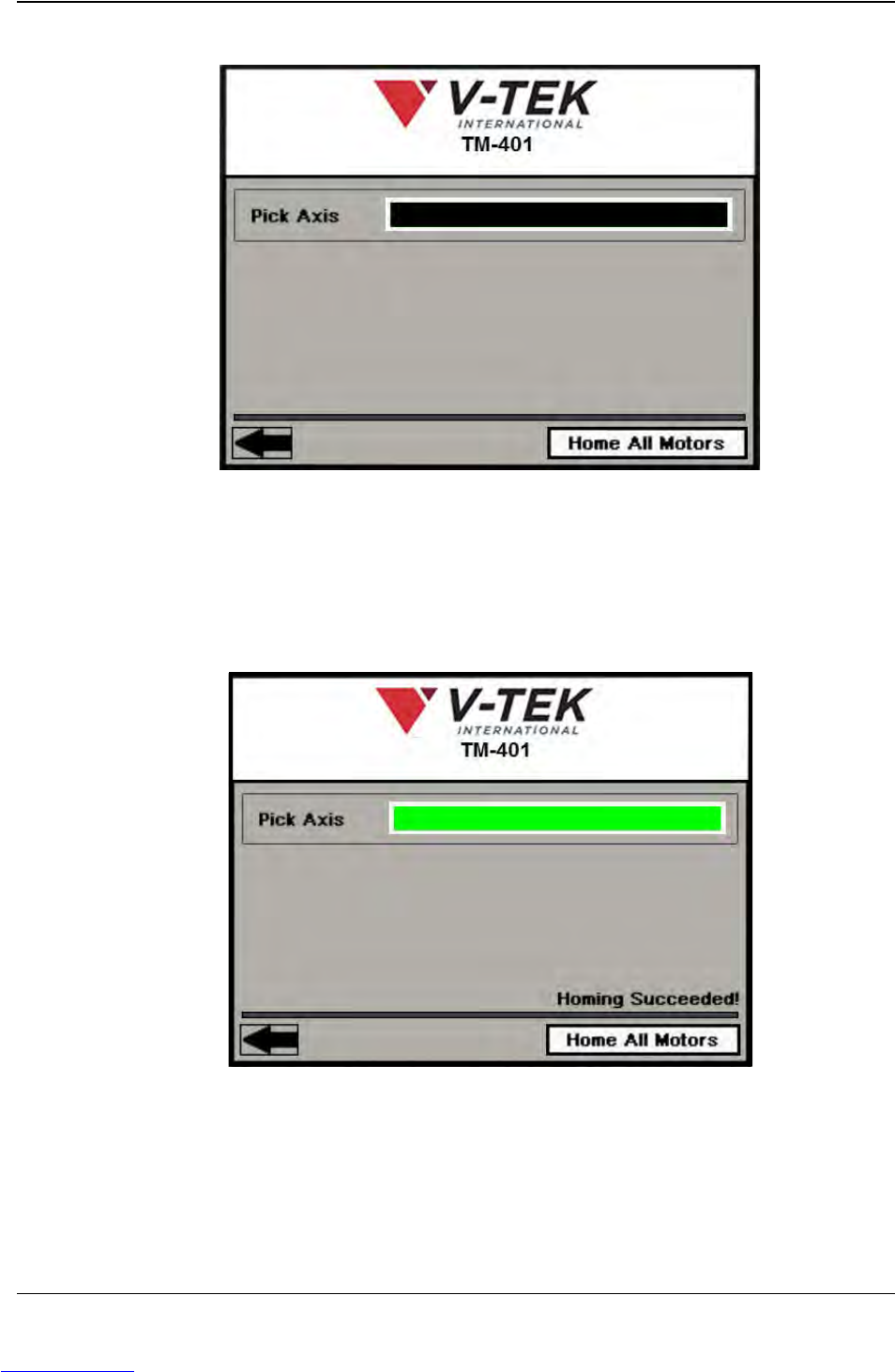

2. Press the Home All Motors button.

The motor homing sequence begins with the nozzle moving slowly upwards (Z

Axis movement). After about a three second delay, the pick head will begin to

move slowly to the right towards the taper (X Axis movement).

The homing sequence will continue until the nozzle has risen to its highest position

and then returned to home and the head has moved all the way to the right and

then returned to home..

Homing progress is displayed as a green bar in the Pick Axis Motor field of the

Homing window. Once the nozzle and head have stopped moving, homing is

complete. A Homing Succeeded! message will appear on the bottom of the

screen.

Press the left Arrow button to return to the Job screen.

Step 2:

Home

Motors

Downloaded from www.Manualslib.com manuals search engine

6-6 TM-401 User’s Guide

Preparing to Run a Pre-programmed Job D292104.8a.fm

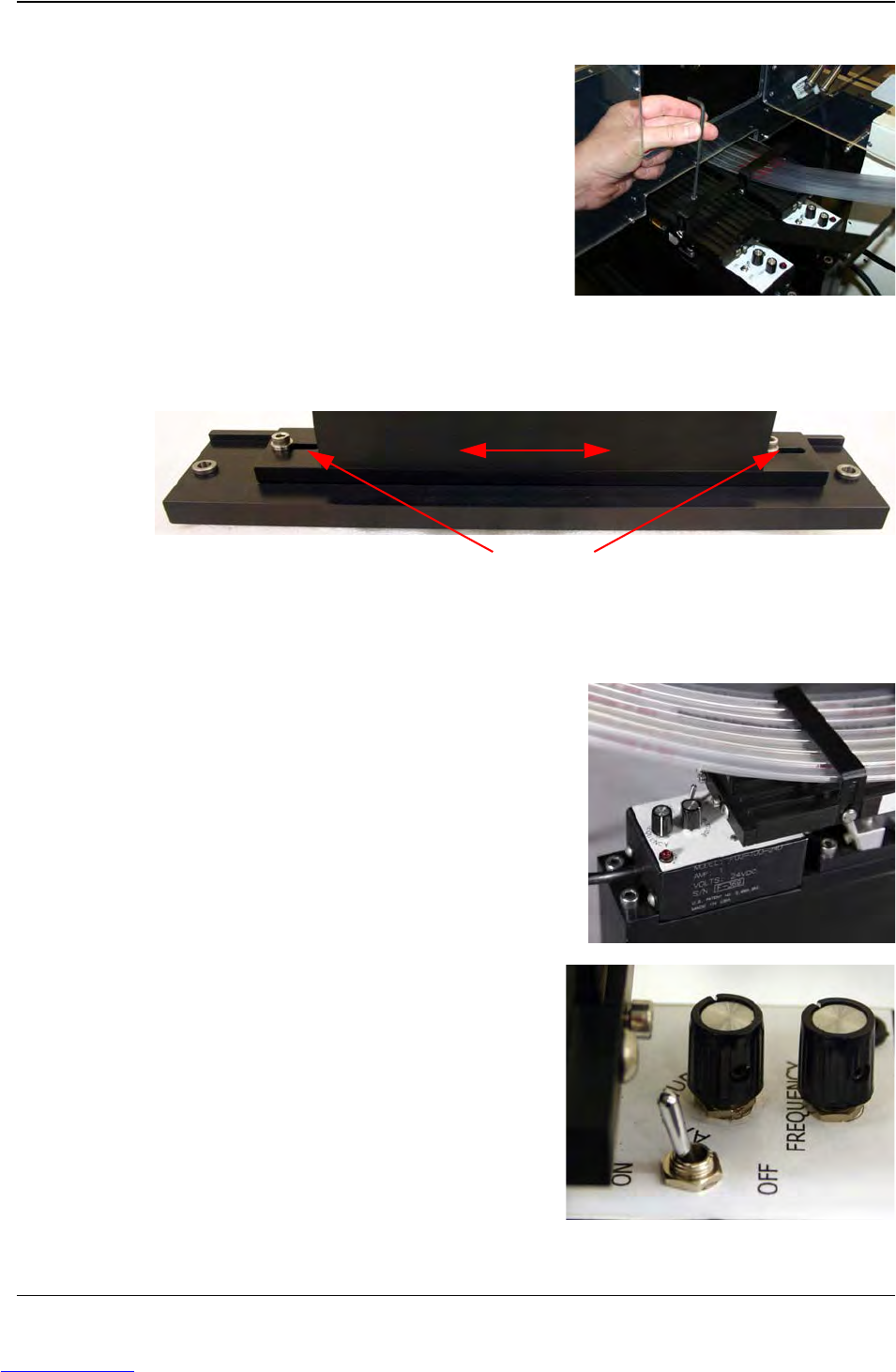

Setup the Manual Tube Input Device (MTID)

1. Ensure the correct tooling is installed.

2. Adjust Feeder position on Sliding Plate so nozzle is centered over pick position..

3. Load filled tubes into feeder..

Note: The TM-401 is designed to work with

one or two MTIDs installed. Follow the

setup procedures for both MTIDs if the

optional second feeder is installed.

4. Turn the Vibratory ON and set Vibratory

Off Delay.

5. Adjust the Vibratory’s Amplitude and

Frequency controls as needed to feed

selected parts smoothly.

Step 3:

Setup

MTID

Y Axis Clamping Bolts

Adjust feeder position on Slotted Plate
