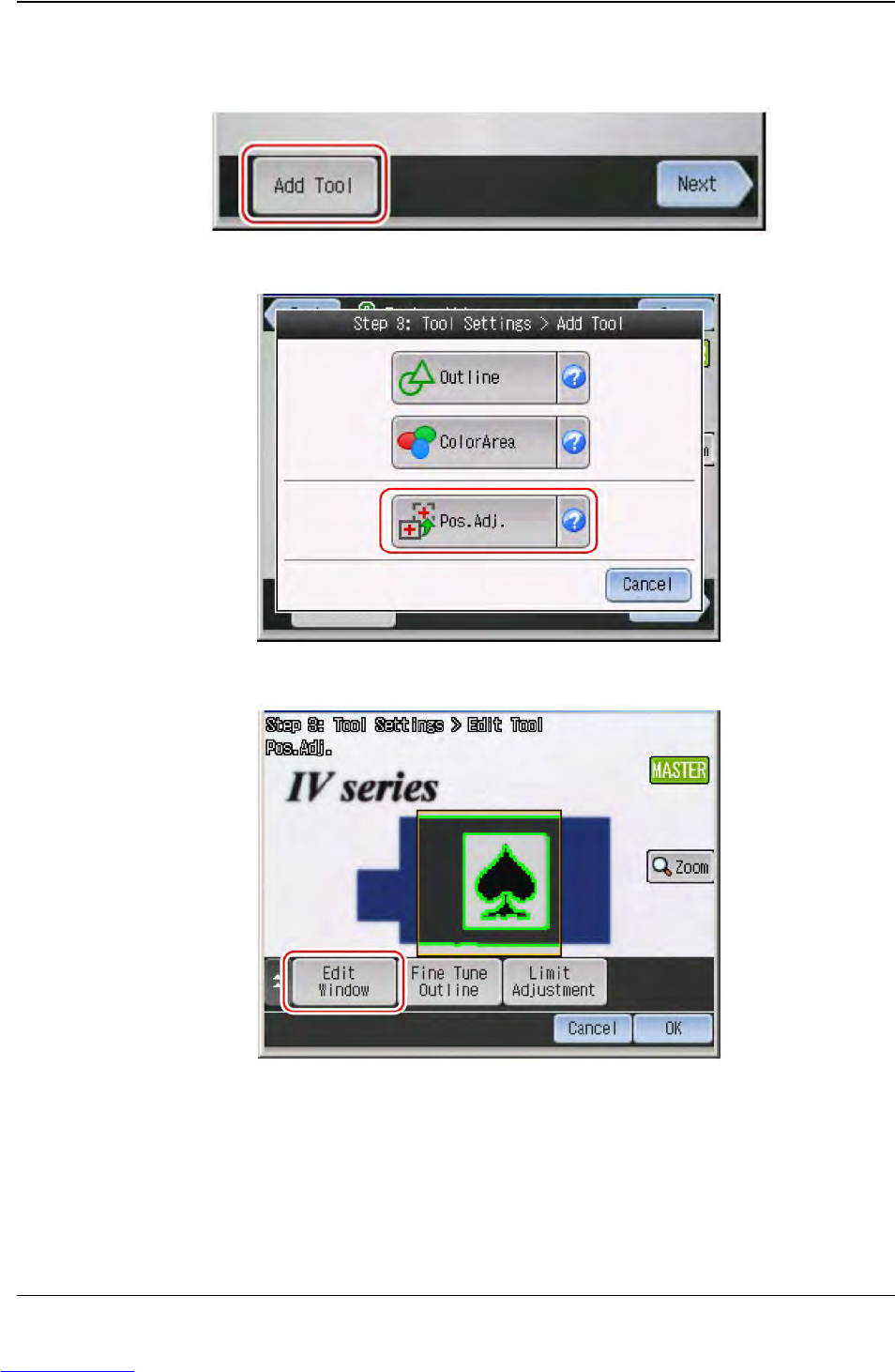

5-40 TM-403 User’s Guide Configure Inspection D292104.16.fm Setup P osition Adjust Detection T ool 1. T ouch the Add T ool button. 2. T ouch the Pos.Adj. button. 3. T ouch the Edit Window button. Step 2: Vision Setup CON…
D292104.16.fm Configure Inspection
Chapter 5: Setup 5- 39

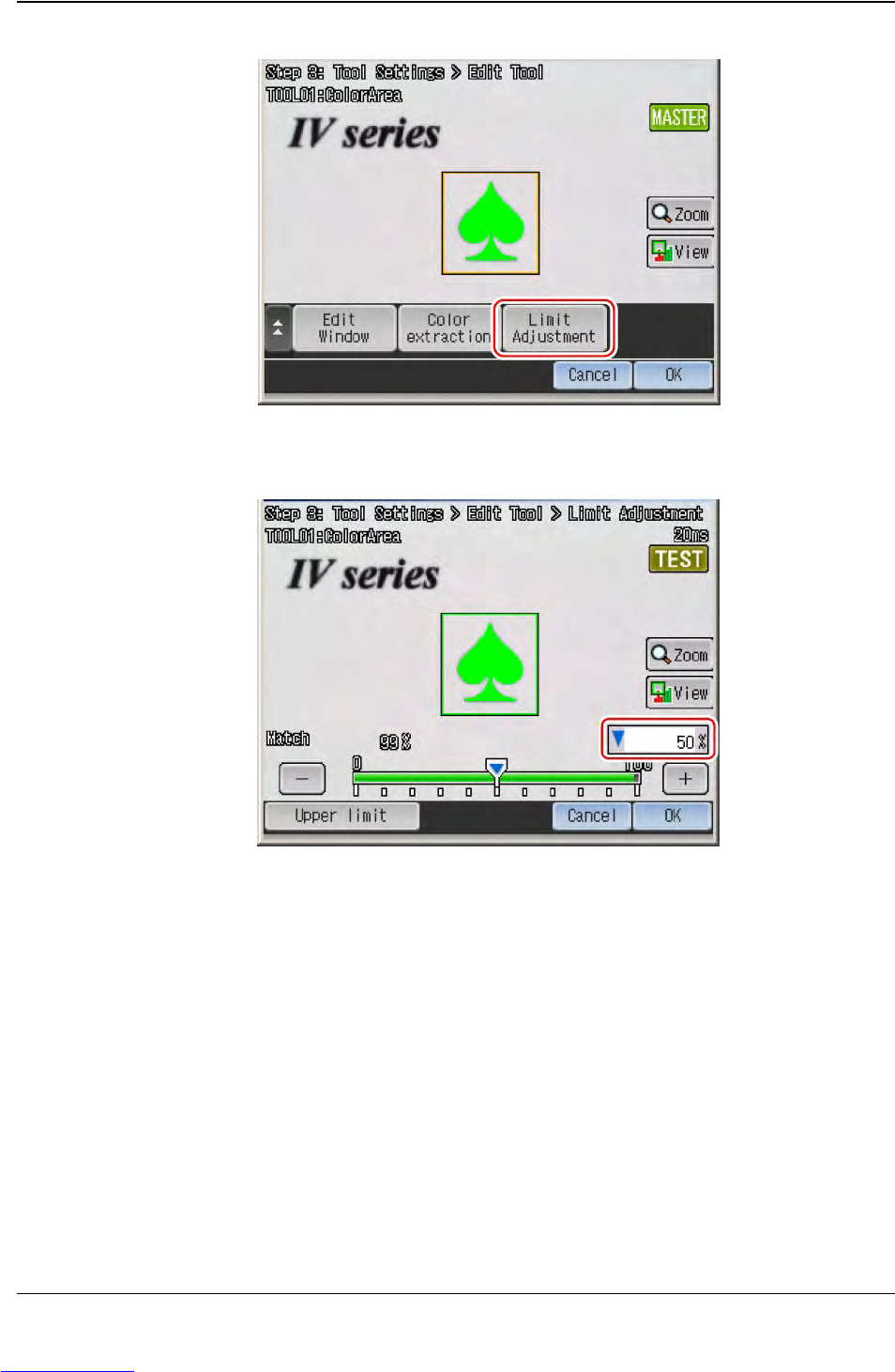

7. Touch the Limit Adjustment button.
8. Set the threshold to judge OK and NG, then touch OK. The display will return to the
main screen for the Color Area/Area tool.
9. Touch OK, then touch Next to proceed to “STEP4”.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
Downloaded from www.Manualslib.com manuals search engine
D292104.16.fm Configure Inspection
Chapter 5: Setup 5- 41

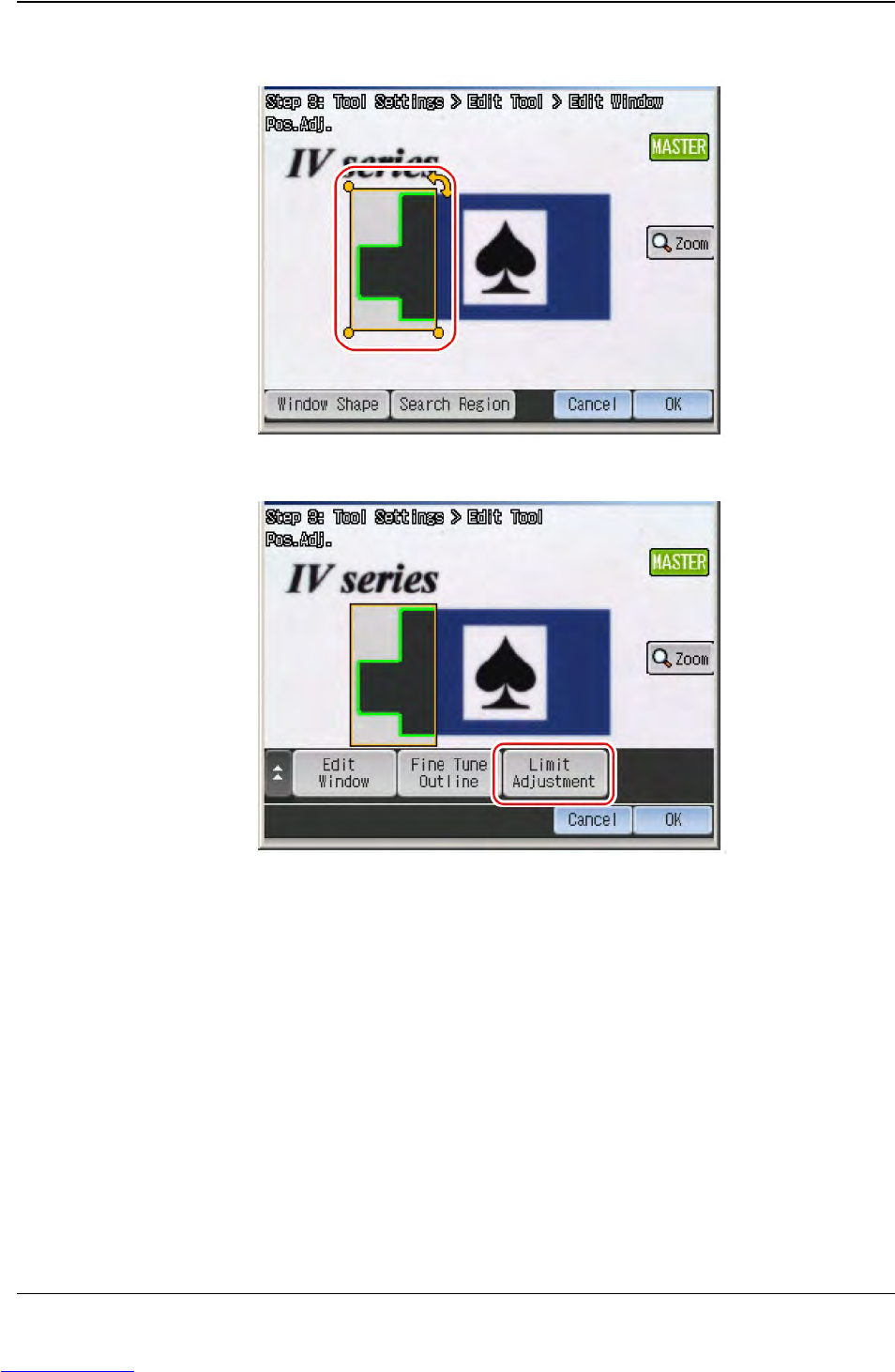

4. Set the position, size, and the angle of the tool window. The detected outline will be
displayed in green. Touch OK.
5. Touch the Limit Adjustment button.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
