Check Actuator Belt Tension
The Actuator Belt tension should be measured after its first 30-40 hours of run time, then annu-
ally after that. To measure belt tension, follow the instructions below.

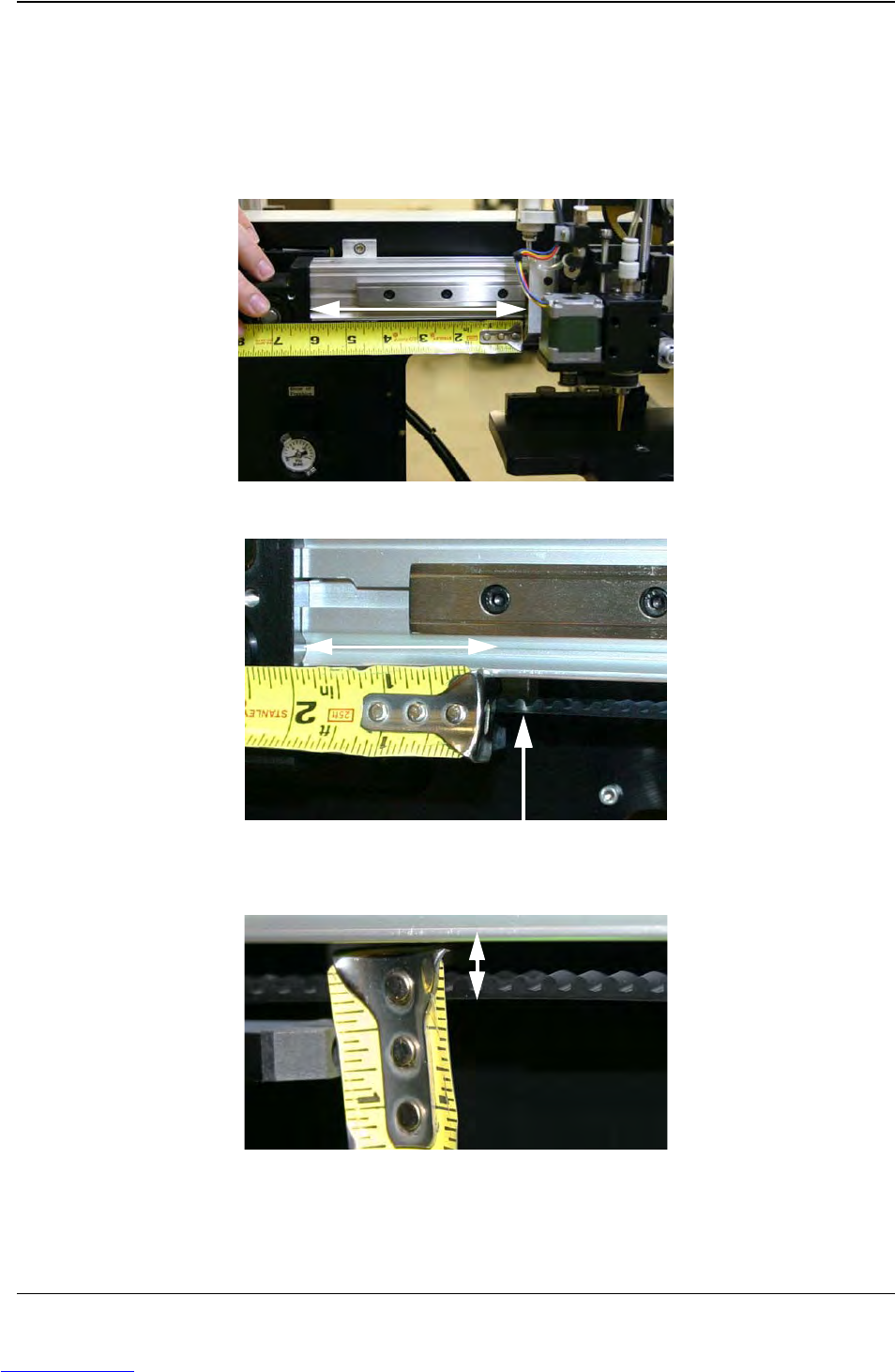

1. Position the Pick Head Carrier so the edge of the carrier is 6" from the inside end of the
Actuator Head.
2. Position a force gauge on the Belt 2” from the inside end of the Actuator Head.
3. Deflect the Belt 1/4" (6 mm) in either direction. The force gauge should read between 12
and 16 lbs. [53 - 62 N].
Note: Contact V-TEK Service for tensioning procedure if belt tension is outside tolerance.
6”
2”
Deflect 1/4”
Downloaded from www.Manualslib.com manuals search engine
8-8 TM-401 User’s Guide
General Maintenance Tasks D292104.10a.fm
Taping Module Maintenance
Heat Sealer
Heat sealer maintenance consists mainly of cleaning built-up debris and adhesive residues from
the heat shoes. It should be cleaned after every 120 hours of operation or as needed.
To clean the heat shoes, follow the steps below.
1. Slide the loading track all the way out.
2. If the sealer assembly is still hot, allow it to cool completely before continuing.
Note: Do not attempt to use alcohol when the sealer
is hot.

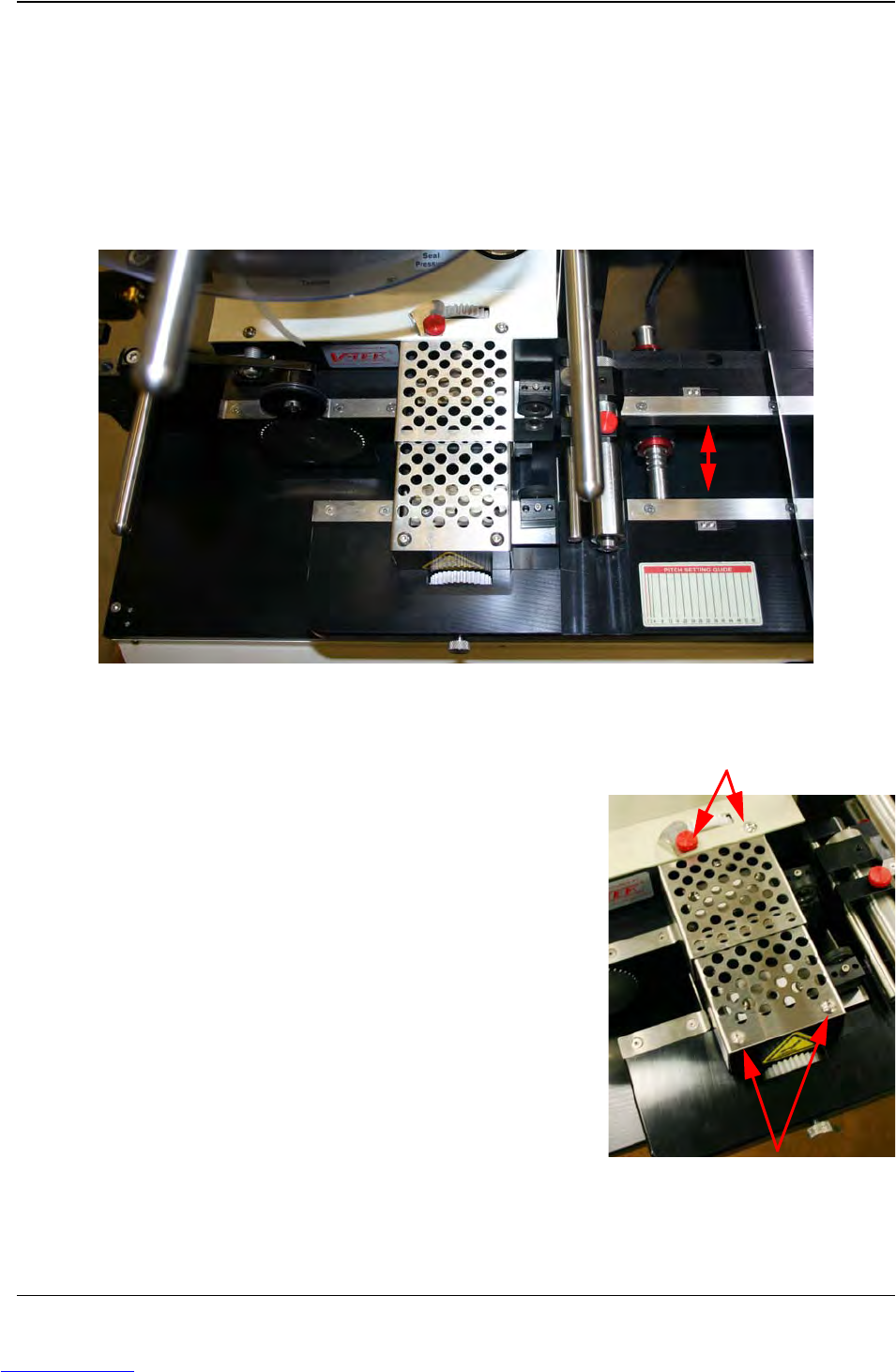

3. Using a 3/32” hex wrench, remove the (3) Button
Head Cap Screws and the red Thumb Screw from
the two sheet metal covers.
Remove
Remove
Downloaded from www.Manualslib.com manuals search engine
D292104.10a.fm General Maintenance Tasks
Chapter 8: Maintenance 8- 9

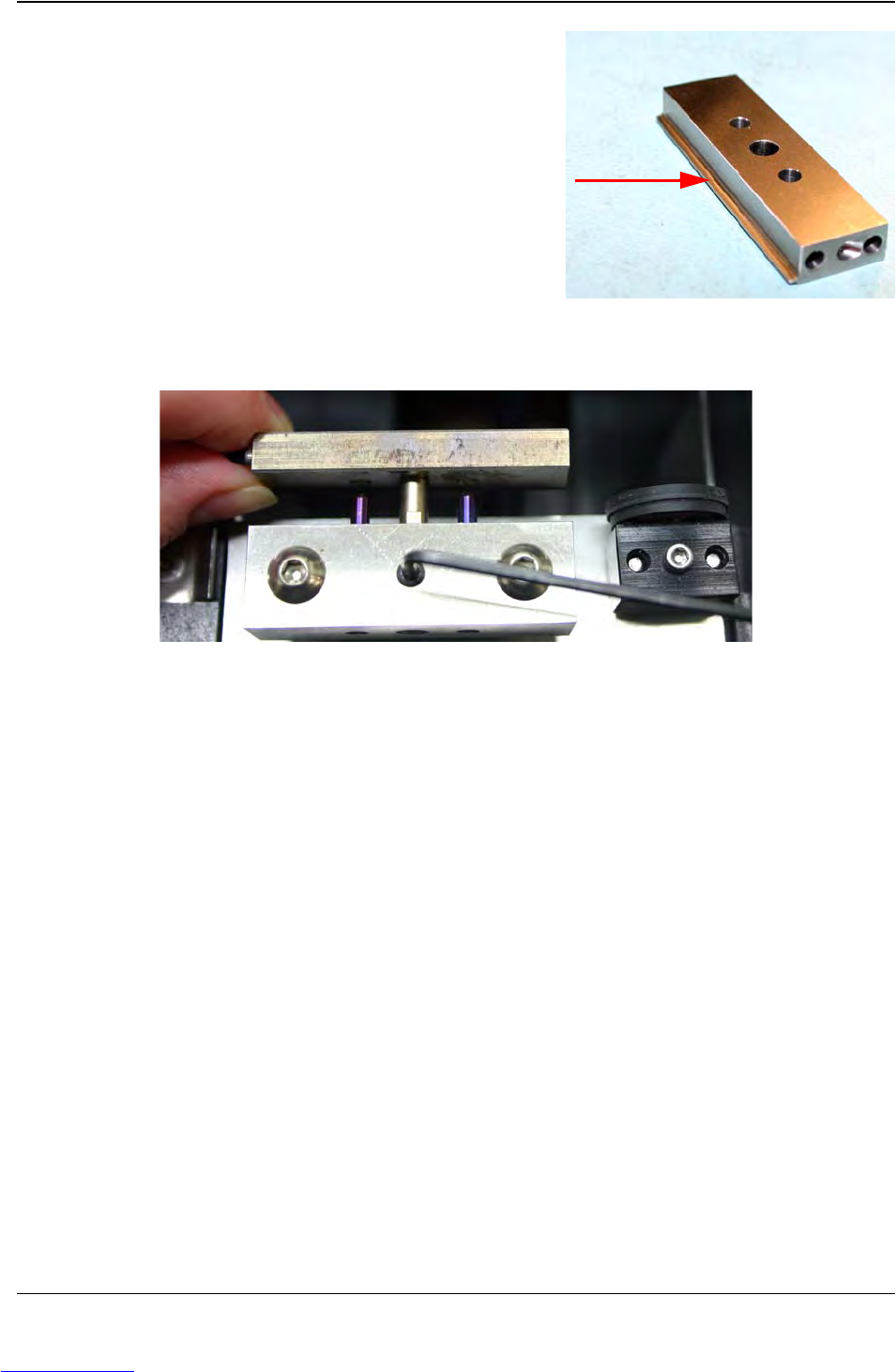

4. Clean the residues from the heat shoes by
using a plastic or brass brush soaked in alco-
hol to remove any residue that has built up on
the lip of the heat shoe.
Note: Do not use a steel bristled brush. It could
damage the heat shoes.
Remove/Replace Heat Shoes
Remove heat shoes every four months and inspect and clean them. Replace if necessary.
1. Ensure the heater is off and has cooled completely.
2. Remove the outer heat sealer guard as described above.
3. Use a 5/64 inch hex wrench to release the shoe from the heat sealer assembly.
4. Use a 5/64 inch hex wrench to unscrew the set screws on both ends of the heat shoe so
the heater and the thermocouple can be removed.
5. Insert the heater and the thermocouple in a new heat shoe, aligning them so their ends
are flush with the end of the heat shoe. Tighten the set screws to hold them in position.
6. Place the heat shoe back on the sealer assembly and tighten the set screw.
7. Replace the outer sealer guard.
Remove
Residue
Heat Shoe
