Preparing the Work Area
Space Requirements
The TM-401 is a table-top machine which needs to be placed on a flat, stable surface in a well lit
work area that is a minimum of 7’ high x 11’ wide x 9‘deep (2.2 m x 3.5 m x 2.7 m) to provide suf-
ficient space for the assembled machine when it is fully loaded with a variety of tape reel sizes.

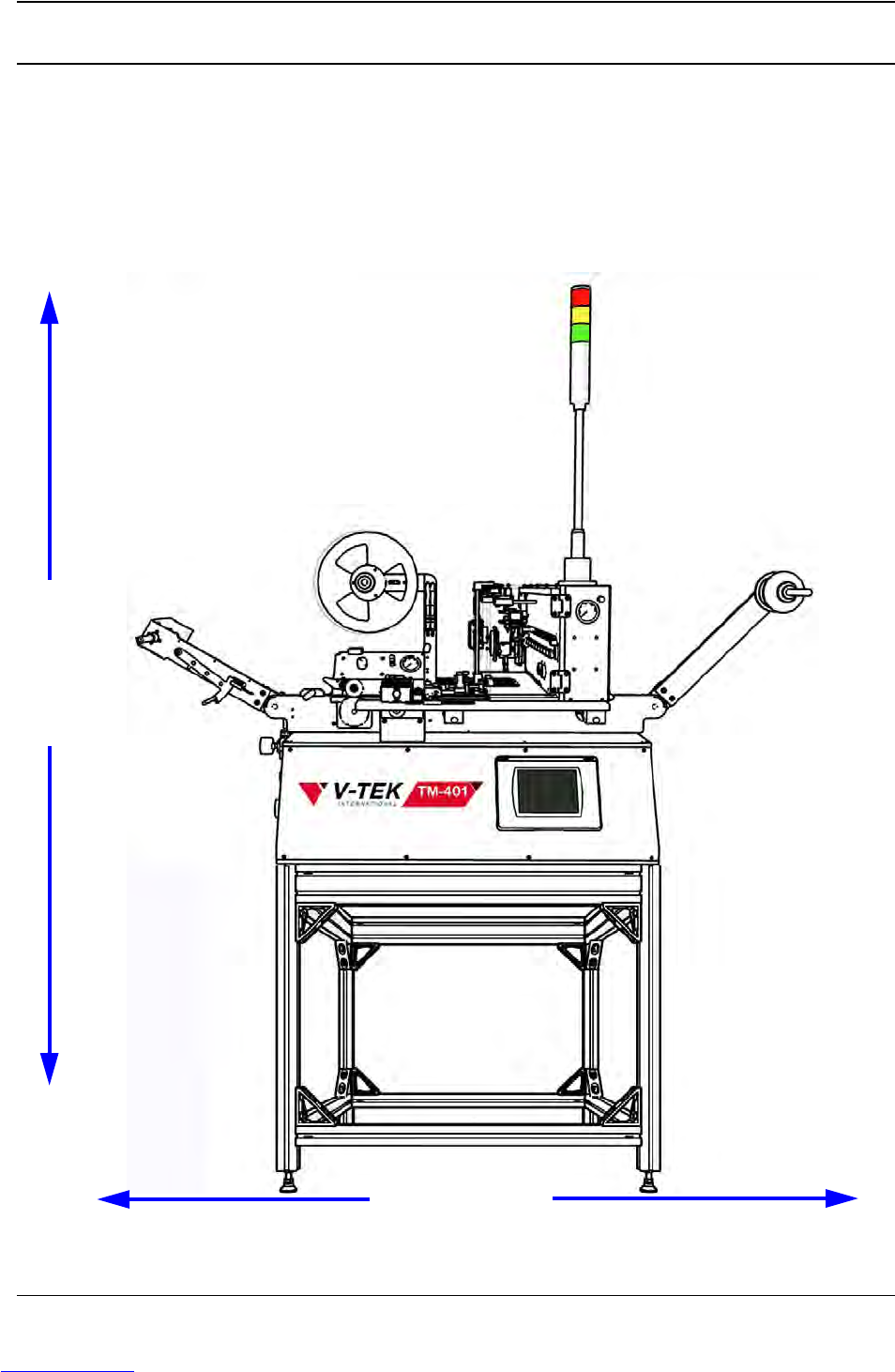

The TM-401 is pictured mounted on the optional 80/20 Frame in the minimum required work area
below.
Minimum
Width = 11 feet
Minimum
Height
7 feet
Downloaded from www.Manualslib.com manuals search engine
D292104.4.fm Preparing the Work Area
Chapter 1: Assembly & Installation 1- 3
Table Requirements
The TM-401 should be placed on a user-supplied table or bench that is capable of supporting a
minimum of 230 lb. (104.5 Kg). An optional 80/20 frame (pictured above) is also available for
mounting the TM-401.
Choose a table that is at least 30” wide by 30” deep to provide sufficient space for the assembled
machine when it is fully loaded with a variety of tape reel sizes.
Ideally the table height should be adjustable so the machine height can be easily adjusted to suit
operators of varying heights. The objective is to position the TM-401 controls so they are easily
accessible for operation and maintenance. The suggested level is 36” (900 mm) above the floor,
but this may vary from one operator to another.
The table’s working surface should have a slope of no more than 5 degrees. Ensure that the TM-
401 feet is positioned on a table or the optional 80/20 frame so the machine is fully supported,
immobilized and level during operation.
Clearance
Allow at least three feet of clearance on all sides of the machine for easy access and operation.

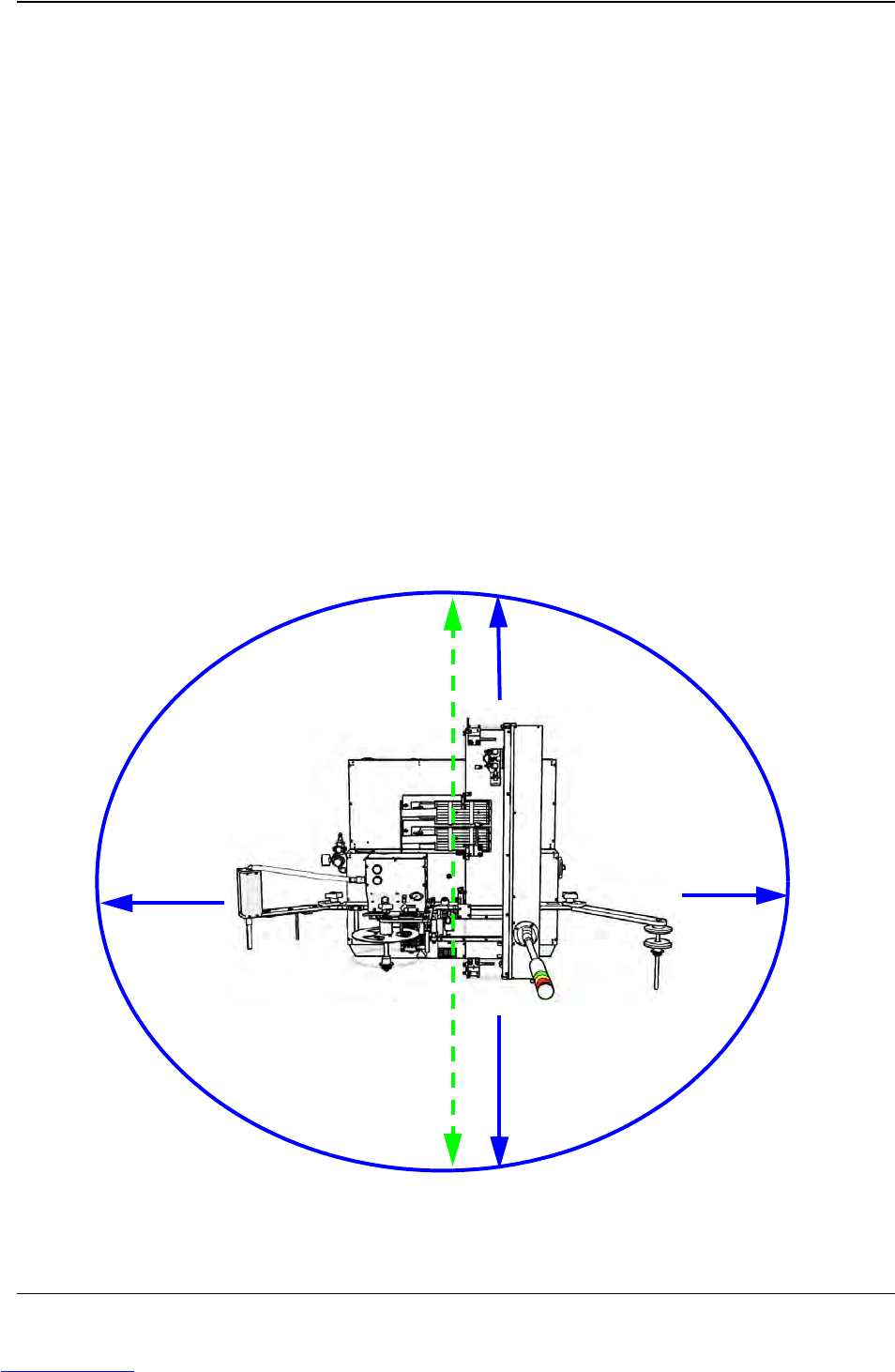

A birds-eye view of the TM-401 with minimum clearance on all sides is shown below.
Minimum clearance
3’ on all sides
Minimum Work
Space Depth
9 feet x 11 feet
