D292104.9a.fm System Alarm Messages
Chapter 7: Troubleshooting 7-9
No Part To Place System Alarm
If the user attempts to place a part in tape when there is no part on the Nozzle, the No Part To
Place System Alarm will be activated. When this happens, operation stops, a beep sounds, and
a warning appears on the HMI.
To clear the No Part To Place System Alarm, pick a part then press CONTINUE to clear the
alarm and resume part placement.
Downloaded from www.Manualslib.com manuals search engine
7-10 TM-401 User’s Guide
System Alarm Messages D292104.9a.fm

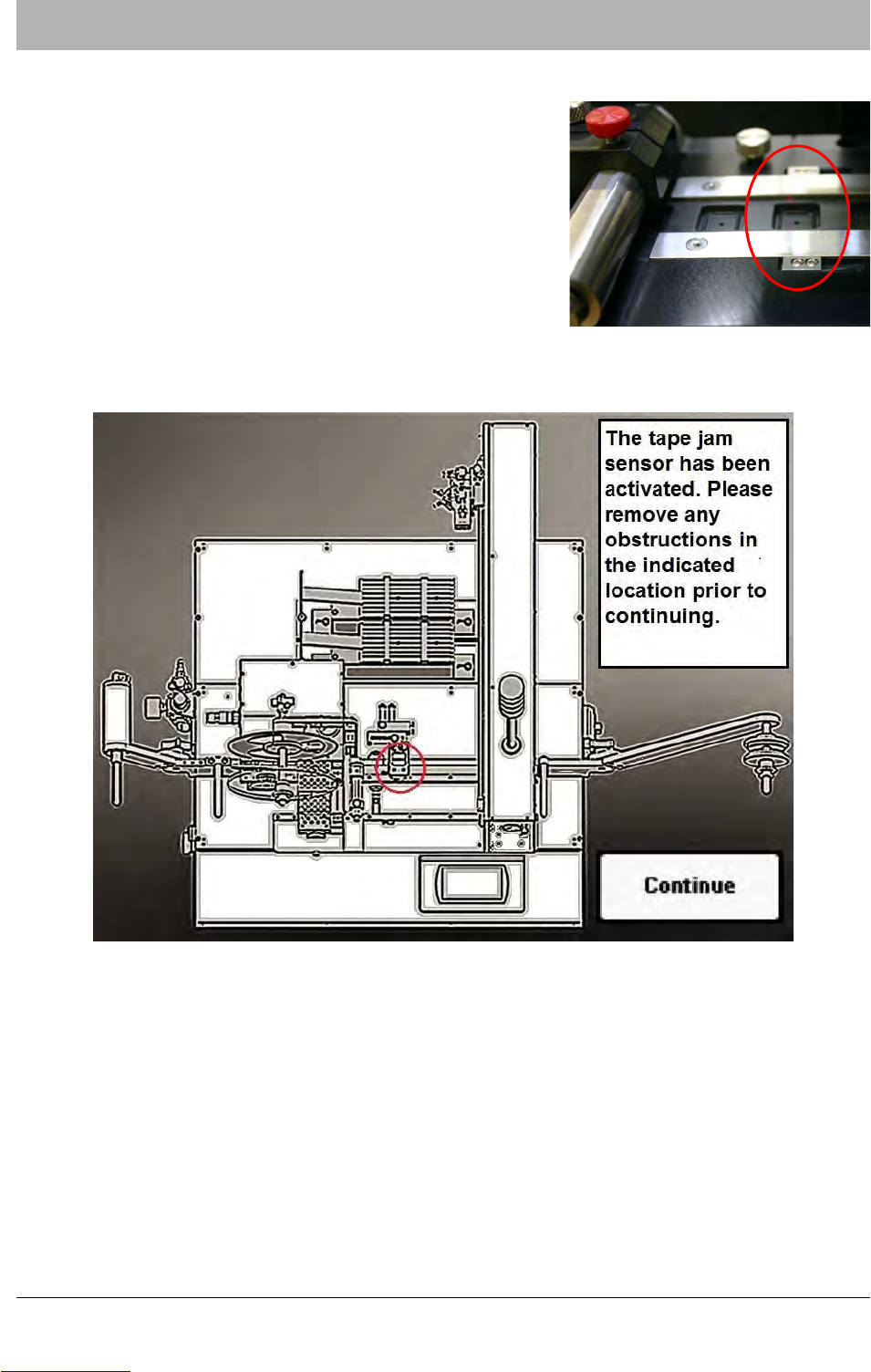

Tape Jam Sensor System Alarm
The Tape Jam Sensor is located on the Taper Track just
before the Sealer. It detects when parts are protruding
above the top of the pocket due to a misplaced part or
tape jam.
When the Tape Jam sensor is enabled and a jam occurs, operation stops, a beep sounds and a
warning appears on the HMI
Clear the tape jam and then press CONTINUE to clear the error message and continue opera-
tion.
Downloaded from www.Manualslib.com manuals search engine
D292104.9a.fm System Alarm Messages
Chapter 7: Troubleshooting 7-11
Vision Error System Alarm
The 2D Inspection System is mounted on the Taper between the
place point and the Sealer. It inspects parts for mark and orienta-
tion. It also detects empty pockets
If the 2D Inspection System detects an inspection error, the 2D
Inspection System Alarm will be activated. Tape advance stops,
a beep sounds and a warning appears on the HMI.
To clear the Vision Error system alarm, re-orient or replace the failed part under the 2D Inspec-
tion Camera. Press CONTINUE to clear the alarm and resume operation.
