D292104.16.fm Configure Inspection Chapter 5: Setup 5- 31 Setup Imag e Optimization 1. T ouch T rigger Options . 2. Select the External T rigger type. T ouch OK . Step 2: Vision Setup CONFIGURE MONIT OR Downloaded from w…
5-30 TM-403 User’s Guide
Configure Inspection D292104.16.fm
16. Sensor Image Memory button: Displays the Sensor Image Memory screen.
17. USB memory button: Displays the USB memory screen.
18. Sensor setup button: Stops running mode and displays the Sensor setup menu
screen.
Program Job
Start Navigator

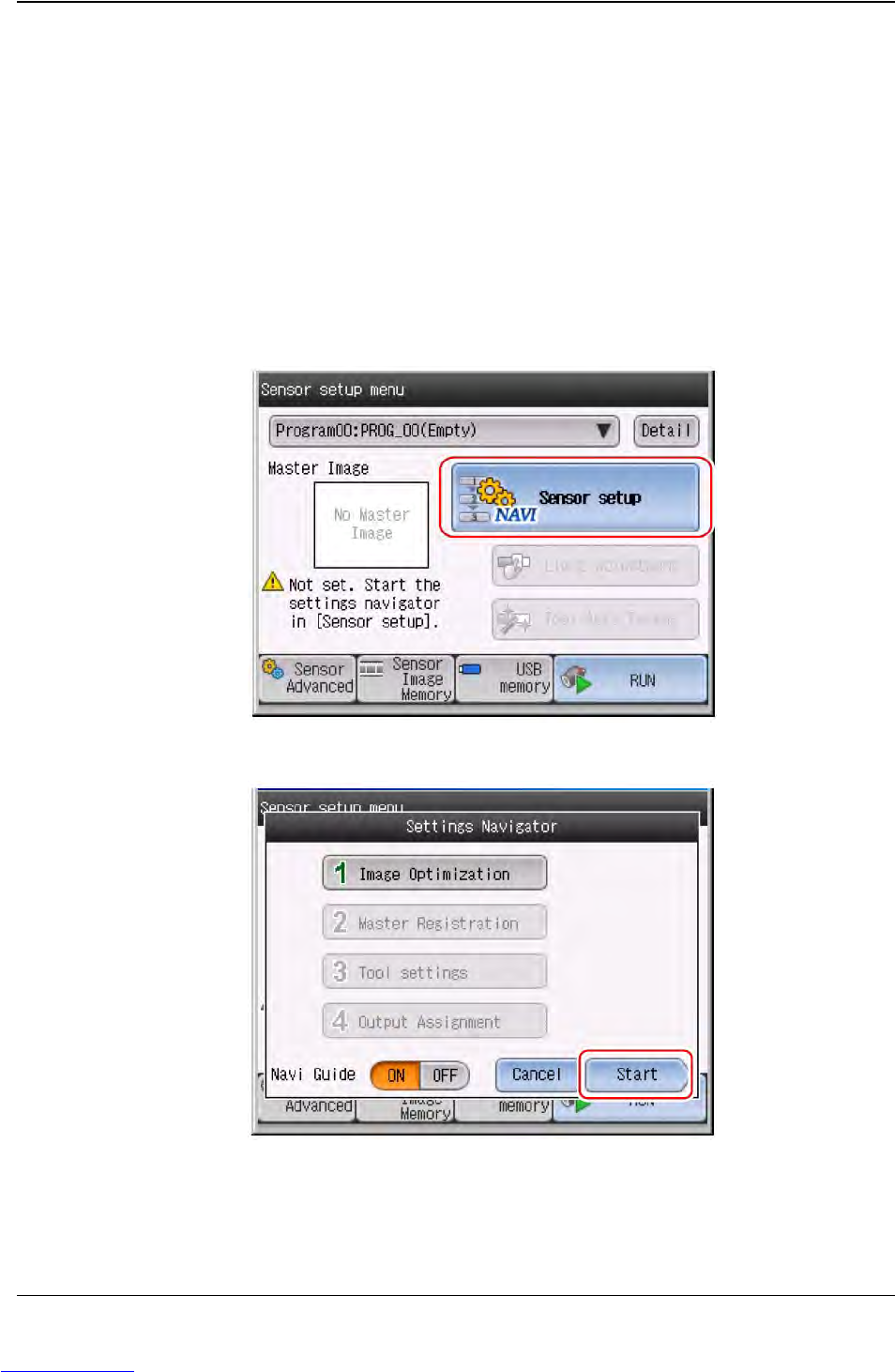

1. Touch the Sensor setup button.
2. Touch the Start button.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
Downloaded from www.Manualslib.com manuals search engine
5-32 TM-403 User’s Guide
Configure Inspection D292104.16.fm
3. Touch Auto Brightness Adjustment. Touch OK.
4. Touch Focus Adjustment. If Auto focusing is selected, the focus position is
adjusted automatically. If Manual focusing is selected, the focus indicator will be
displayed. Adjust focus as desired. Touch OK.
5. Touch Next to proceed to “STEP2”.
Step 2:
Vision
Setup
CONFIGURE
MONITOR
