D292104.6.fm Run Tab

Chapter 3: Human Machine Interface 3-29

Run Tab

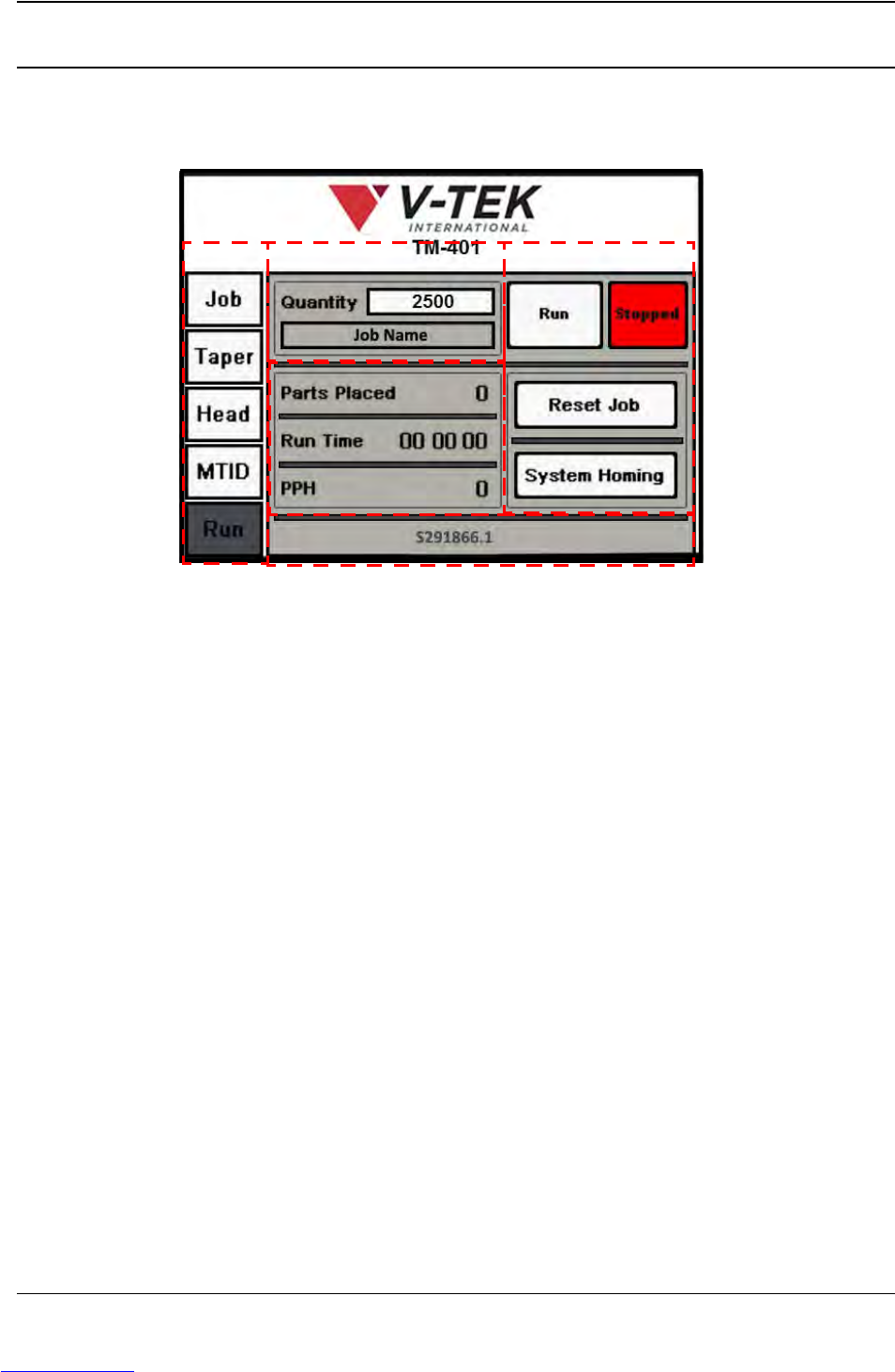

When Run is selected from the Tab Menu, the Run Tab opens. It includes job information, current

job statistics, Status messages and Run control buttons. The Run Screen with all status mes-

sages displayed appears below.

A. Tab Menu

B. Job Information

C. Run Control Buttons

D. Job Statistics

E. Software Version/Status Messages

A. Press any tab in the Tab Menu to open that tab window.

B. The Job Information section has two fields: Quantity and Job Description. This

information was entered in the Job Wizard during job setup. The Job Description

field is greyed out, indicating it cannot be altered in this tab. To edit the Quantity

field, press anywhere inside the field to open a keypad for data entry.

C. There are four control buttons on the Run Tab: Run/Running, Stop/Stopped,

Reset Job, and System Homing.

• The Run and Stop buttons start and stop job processing. They change color to

indicate they are active. In the Run Tab above, the red Stopped button indicates

the current job has been stopped.

• The Reset Job button resets all job statistics to zero. This is useful for running

multiple reels of the same job.

Downloaded from www.Manualslib.com manuals search engine

3-30 TM-401 User’s Guide

Run Tab D292104.6.fm

When Reset Job is pressed, the following message appears.

• The System Homing button allows the user to home the motor. Homing motors

should be done once following every system power up. When System Homing is

selected, the Homing Status window will appear.

Pressing the Home All Motors button begins the homing sequence. Homing

progress is displayed in the Pick Axis Motor Status Bar.

As the homing sequence is completed, the bar gradually turns from black to

green. A Homing Succeeded! message appears at the end of the sequence.

Downloaded from www.Manualslib.com manuals search engine

D292104.6.fm Run Tab

Chapter 3: Human Machine Interface 3-31

If a problem arises during homing for the motor, the status bar will turn red and a

Homing Error message will appear.

Pressing the Left Arrow button returns the user to the Run Tab.

D. The Statistics section keeps a running tally of the current job’s Parts Placed, Run

Time, and Parts Per Hour.

E. Status Messages only appear when conditions exist which require the user’s

attention before the job can be run.

• If the preset quantity of parts has been processed, the End Of Job message will

appear.

• If the doors are open, the Doors Open message will appear.

• The current software version is displayed in the center of the bottom of the

screen.
