3-30 TM-401 User’s Guide
Run Tab D292104.6.fm

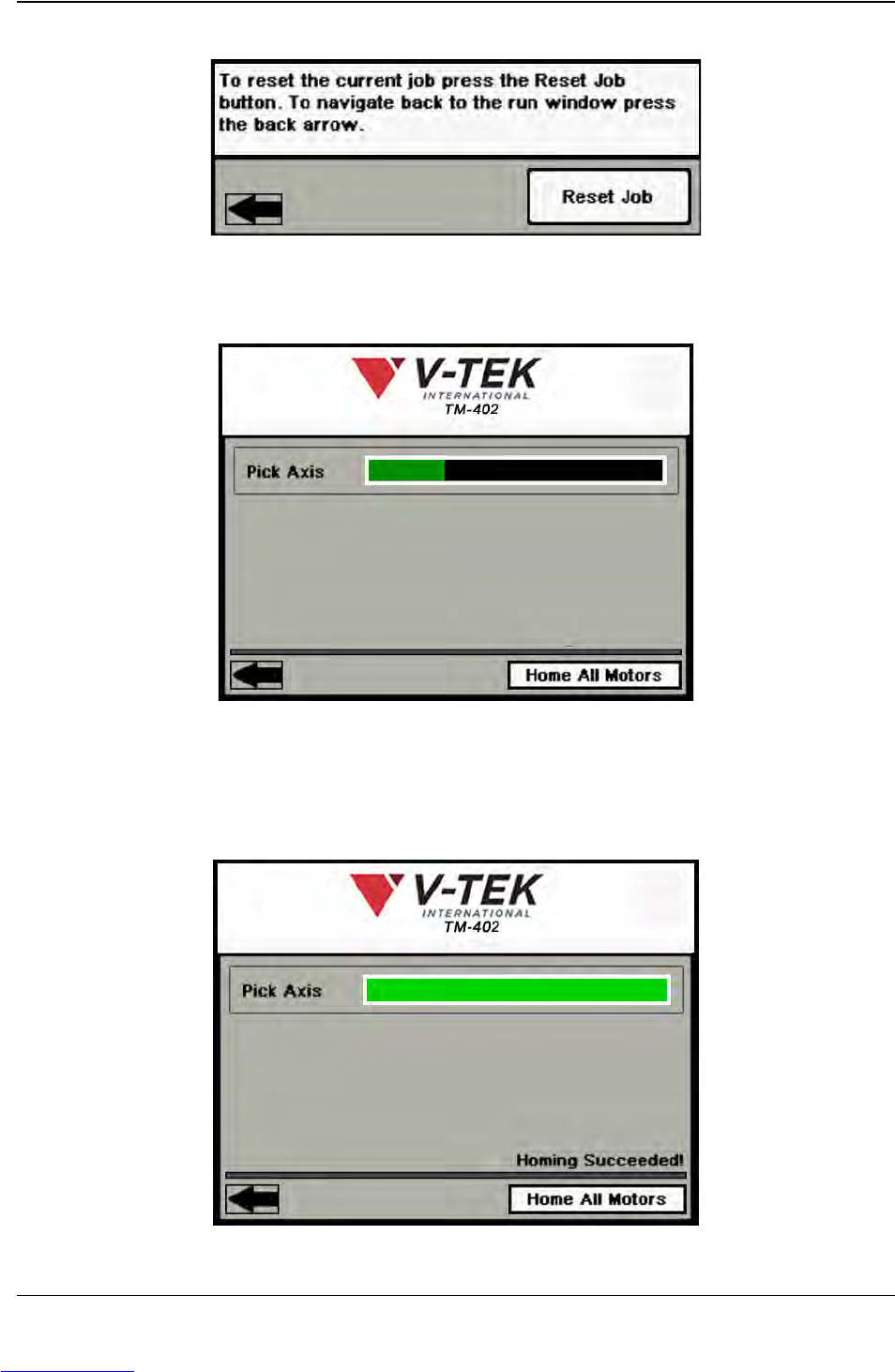

When Reset Job is pressed, the following message appears.
• The System Homing button allows the user to home the motor. Homing motors
should be done once following every system power up. When System Homing is
selected, the Homing Status window will appear.
Pressing the Home All Motors button begins the homing sequence. Homing
progress is displayed in the Pick Axis Motor Status Bar.
As the homing sequence is completed, the bar gradually turns from black to
green. A Homing Succeeded! message appears at the end of the sequence.
Downloaded from www.Manualslib.com manuals search engine
D292104.6.fm Run Tab
Chapter 3: Human Machine Interface 3-31

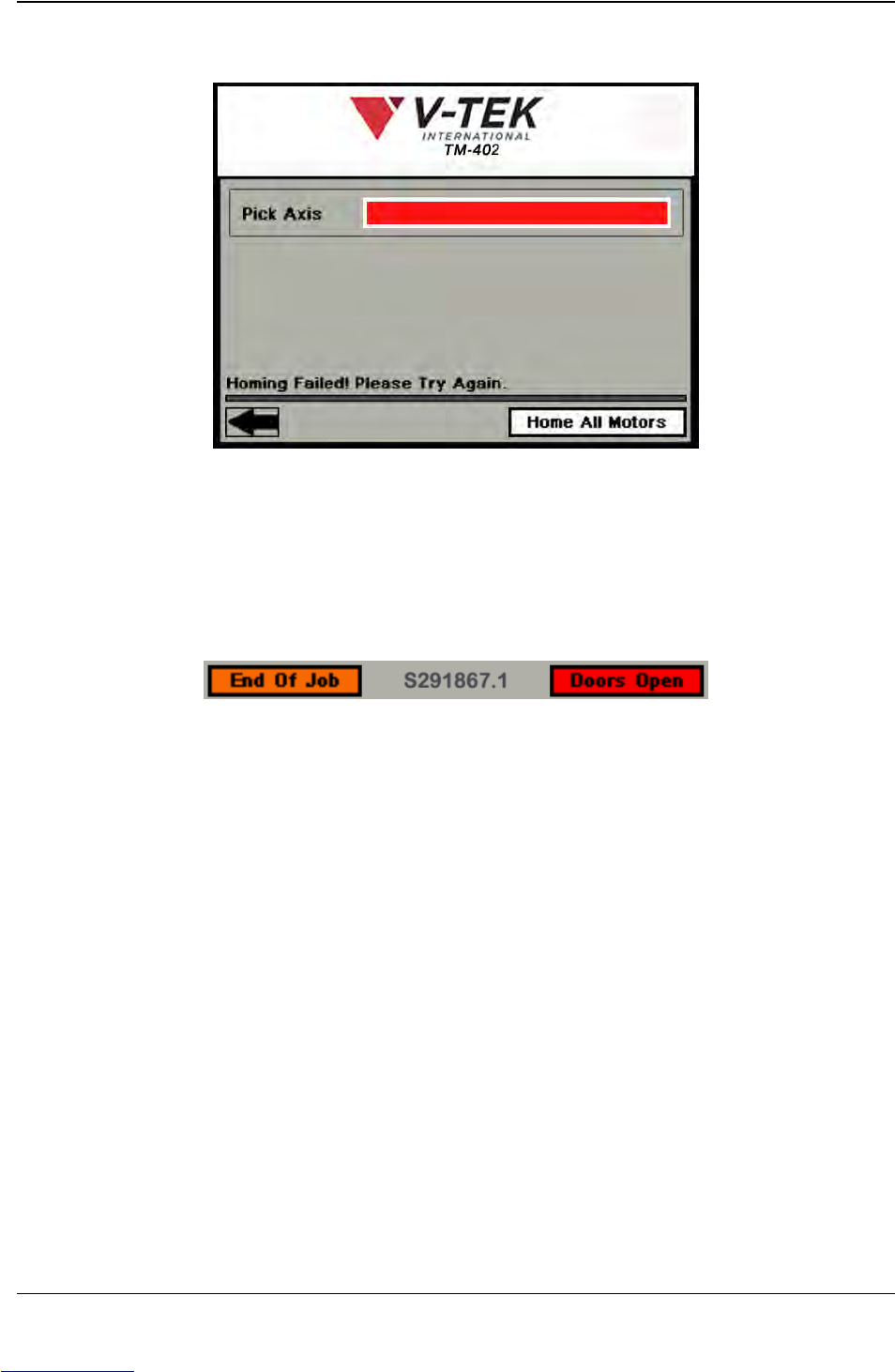

If a problem arises during homing for the motor, the status bar will turn red and a
Homing Error message will appear.
Pressing the Left Arrow button returns the user to the Run Tab.
D. The Statistics section keeps a running tally of the current job’s Parts Placed, Run
Time, and Parts Per Hour.
E. Status Messages only appear when conditions exist which require the user’s
attention before the job can be run.
• If the preset quantity of parts has been processed, the End Of Job message will
appear.
• If the doors are open, the Doors Open message will appear.
• The current software version is displayed in the center of the bottom of the
screen.
