D292104.7a.fm Load the Manual Tube Input Device (MTID)

Chapter 4: Setup 4- 5

Load the Manual Tube Input Device (MTID)

The MTID must be loaded with tubes and config-

ured for operation. Begin by preparing the MTID,

then move to the HMI to adjust settings as

needed (Step 6). Follow the directions below to

setup the Tube Feeder.

1. Ensure the correct tooling for the selected

part is installed on the feeder. If new

tooling needs to be loaded, follow the

steps below to change tooling

A. Remove all tubes from the feeder,

plugging the end of the tubes before

removal.

B. Using a 9/64’ Hex wrench, remove the

(2) socket head cap screws in the Tooling

Platform.

C. Remove the Tooling Platform.

D. Insert the correct Tooling Platform,

positioning it on the dowel pins to ensure

correct placement.

E. Insert the (2) socket head cap screws

and tighten in place.

2. Loosen the Clamping Bolts on the bottom of the MTID and move the Slotted Plate

so the Pick Area is centered under the Nozzle.

Note: For longer parts, the Feeder will need to be positioned closer to the Pick

Head Bridge. For shorter parts, move the Feeder closer to the Enclosure Doors.

Step 3:

Load the

MTID

Y Axis Clamping Bolts

Adjust Feeder position on Slotted Plate

Downloaded from www.Manualslib.com manuals search engine

4-6 TM-401 User’s Guide

Load the Manual Tube Input Device (MTID) D292104.7a.fm

3. Load the Manual Tube Input Device (MTID)

with tubes.

The maximum number of tubes that can be

loaded is determined by the size of the

tubes that are loaded.

The minimum number of tubes is one.

Note: The TM-401 is designed to work with

one or two MTIDs. If two MTIDs were

included with this TM-401, install them both

at this time.

4. Turn the Vibratory ON

5. Adjust the Vibratory Frequency (speed)

and Amplitude (strength) Controls as

needed. Parts should feed fluidly but not

so rapidly that it causes parts to begin

jumping around.

Step 3:

Setup

MTID

Downloaded from www.Manualslib.com manuals search engine

D292104.7a.fm Nozzle Installation

Chapter 4: Setup 4- 7

Nozzle Installation

The TM-401’s is shipped with the following nozzles and nozzle tips:

• (1) Quad Nozzle Shank

• (1) Small Precision Tool (SPT) Nozzle Shank

• (1) Convum Nozzle Shank

• (1) Large Quad Vacuum Cup

• (1) Medium Quad Vacuum Cup

• (1) Small Quad Vacuum Cup

• (1) SPT Vacuum Cup

• (1) Convum Vacuum Cup

• (2) O-Rings

Note: Nozzle Tips are available in a wide range of sizes and style. Contact V-TEK

Service for information on ordering additional Nozzle Tips.

Selecting the Correct Nozzle & Nozzle Tip

To achieve the best picking results, select the largest cup size the part can accommo-

date. Maximizing the cup size gives the vacuum access to more surface area which

increases its pick-up capability. The goal is to use a nozzle cup that is just slightly smaller

than the part being picked.

The Convum bellows-style cups have a flexible flange that are useful for picking irregular

or heavy parts.

Step 4:

Nozzle

Installation

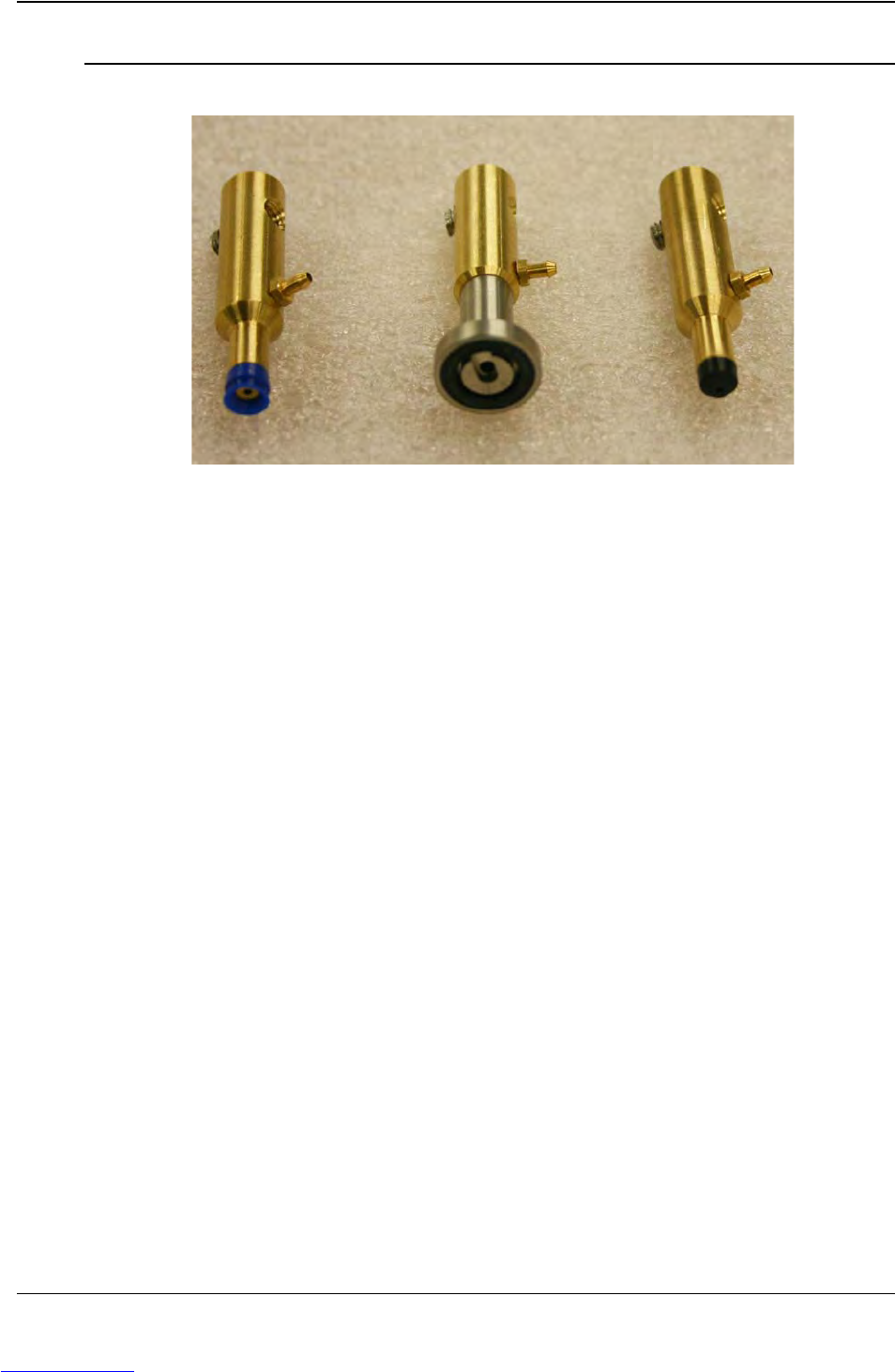

SELECT

NOZZLE

Convum Quad SPT
