2-4 TM-401 User’s Guide
Left Side View D292104.5a.fm
Left Side View
A. Pick & Place Head Assembly G. Take-up Arm
B. Enclosure Doors (3) H. Cover Tape Arm
C. Tube Feeders I. Tower Light
D. Air Regulator J. Heat/PSA Sealer
E. Take-up Motor Connection K. Reset Button
F. Take-up Arm Adjustment Knob L. Emergency Stop Switch
I
H
B
G
L
E
J
C
C
B
F
K
D
B
A
Downloaded from www.Manualslib.com manuals search engine
D292104.5a.fm Back View
Chapter 2: TM-401 Overview 2-5
Back View
A. Carrier Tape Arm J. Ethernet Connection
B. Carrier Arm Adjustment Knob K. Cover Tape Arm
C. Main Power Switch L. Heat/PSA Sealer
D. Fuse Holders (Bowl application only) M. Tube Feeder Power Connection
E. Pick Head Enclosure N. Taper Assembly
F. Tower Light O. Vision Monitor Power Receptacle
G. Pick & Place Head Assembly P. Air Pressure Regulator
H. 2D Vision System Q. Take-up Arm
I. Tube Feeder R. Power Receptacle
A
C
E
D
F
G
I
K
L
B
M
R
Q
P
H
N
J
O
Downloaded from www.Manualslib.com manuals search engine
2-6 TM-401 User’s Guide
Controls, Connections & Labeling D292104.5a.fm
Controls, Connections & Labeling

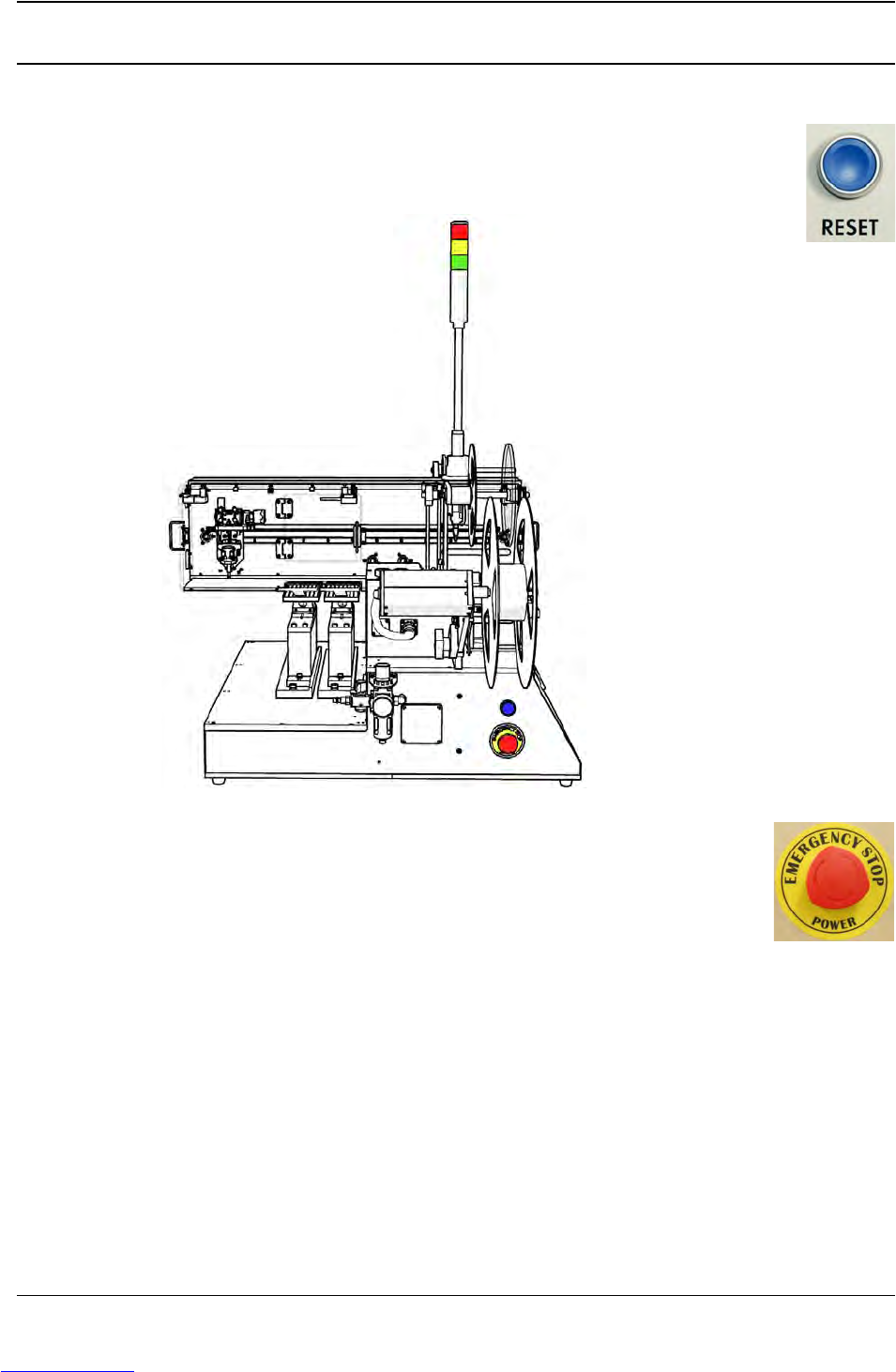

Reset Button
The TM-401’s blue Reset Button is located on the left side of the machine
below the Take-up Arm. (pictured below)
Emergency Stop Switch
The Emergency Stop Switch is located on the left side of the machine below
the blue Reset Button. (pictured above)
