D292104.16.fm Configure Inspection Chapter 5: Setup 5- 23 Click Live Adjustment and the sensor will continu ously take measurement s. Adjust the threshold to yield the highest dif ference between good and bad pa rts, the…
5-22 TM-403 User’s Guide
Configure Inspection D292104.16.fm
The Eraser Settings window will open.
The Eraser appears as a white square on the image. Adjust eraser size as needed,
then click and drag it over any unwanted data that is outlined in green on the
image.
Reduce Eraser size to remove any smaller green spots of unnecessary data. Click
OK to finalize edit.
Step 2:
Vision
Setup
CONFIGURE
COMPUTER
Downloaded from www.Manualslib.com manuals search engine
D292104.16.fm Configure Inspection
Chapter 5: Setup 5- 23
Click Live Adjustment and the sensor will continuously take measurements.
Adjust the threshold to yield the highest difference between good and bad parts,
then click OK.
Step 2:
Vision
Setup
CONFIGURE
COMPUTER
Downloaded from www.Manualslib.com manuals search engine
5-24 TM-403 User’s Guide
Configure Inspection D292104.16.fm

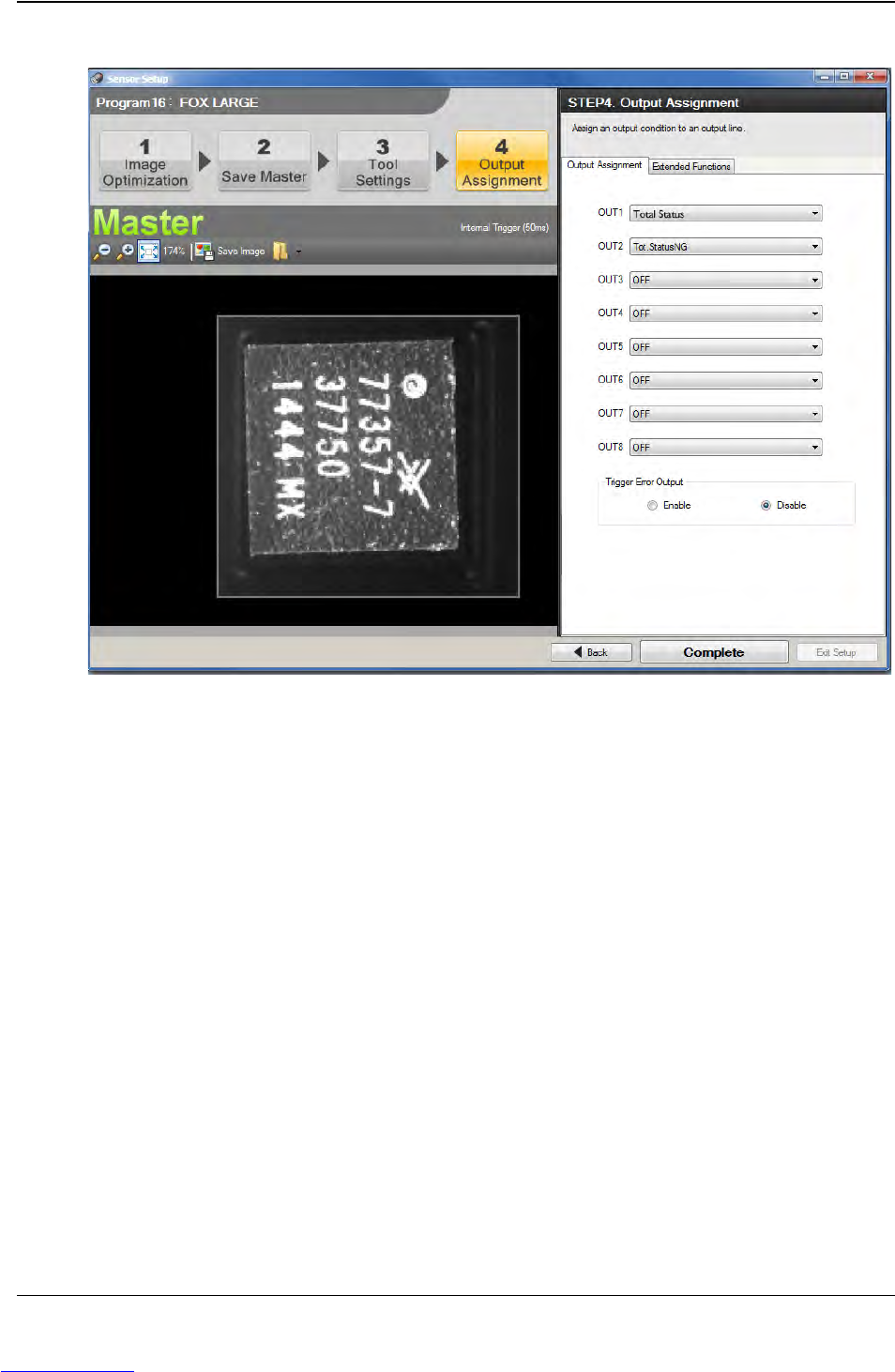

11. The Output Assignment window will open. Set up the Outputs as shown below.
• Set OUT1 to Total Status.
• Set OUT2 to Tot.StatusNG.
•Set all remaining output to OFF.
•Set Trigger Error Output to Disable.
Step 2:
Vision
Setup
CONFIGURE
COMPUTER
