编带机说明书-含图纸tm401.pdf - 第124页
5-22 TM-403 User’s Guide Configure Inspection D292104.16.fm The Eraser Settings wind ow will open. The Eraser appears as a white squa re on the image. Adjust eraser size as needed, then click and drag it over any unwante…
5-22 TM-403 User’s Guide
Configure Inspection D292104.16.fm

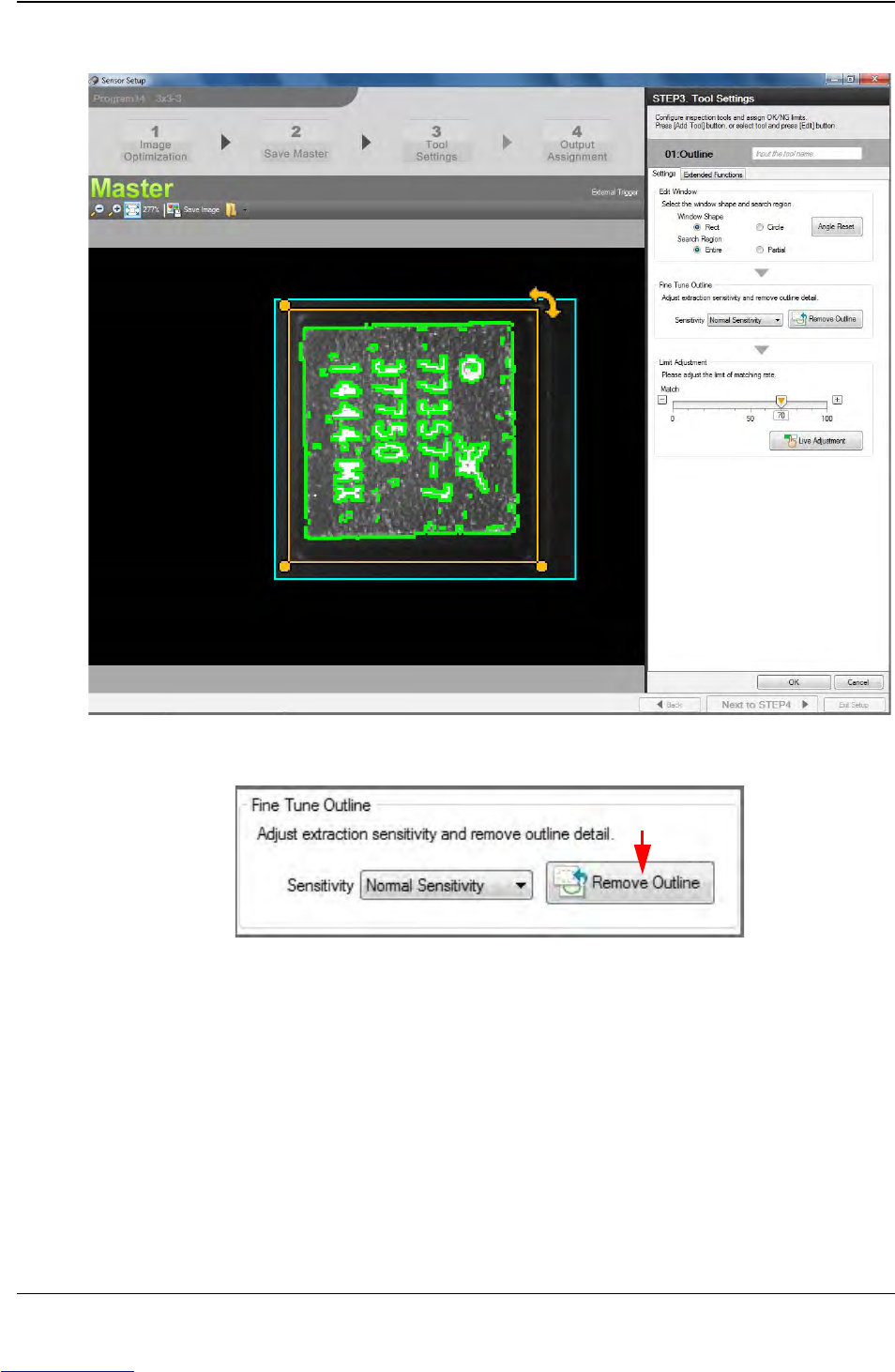

The Eraser Settings window will open.

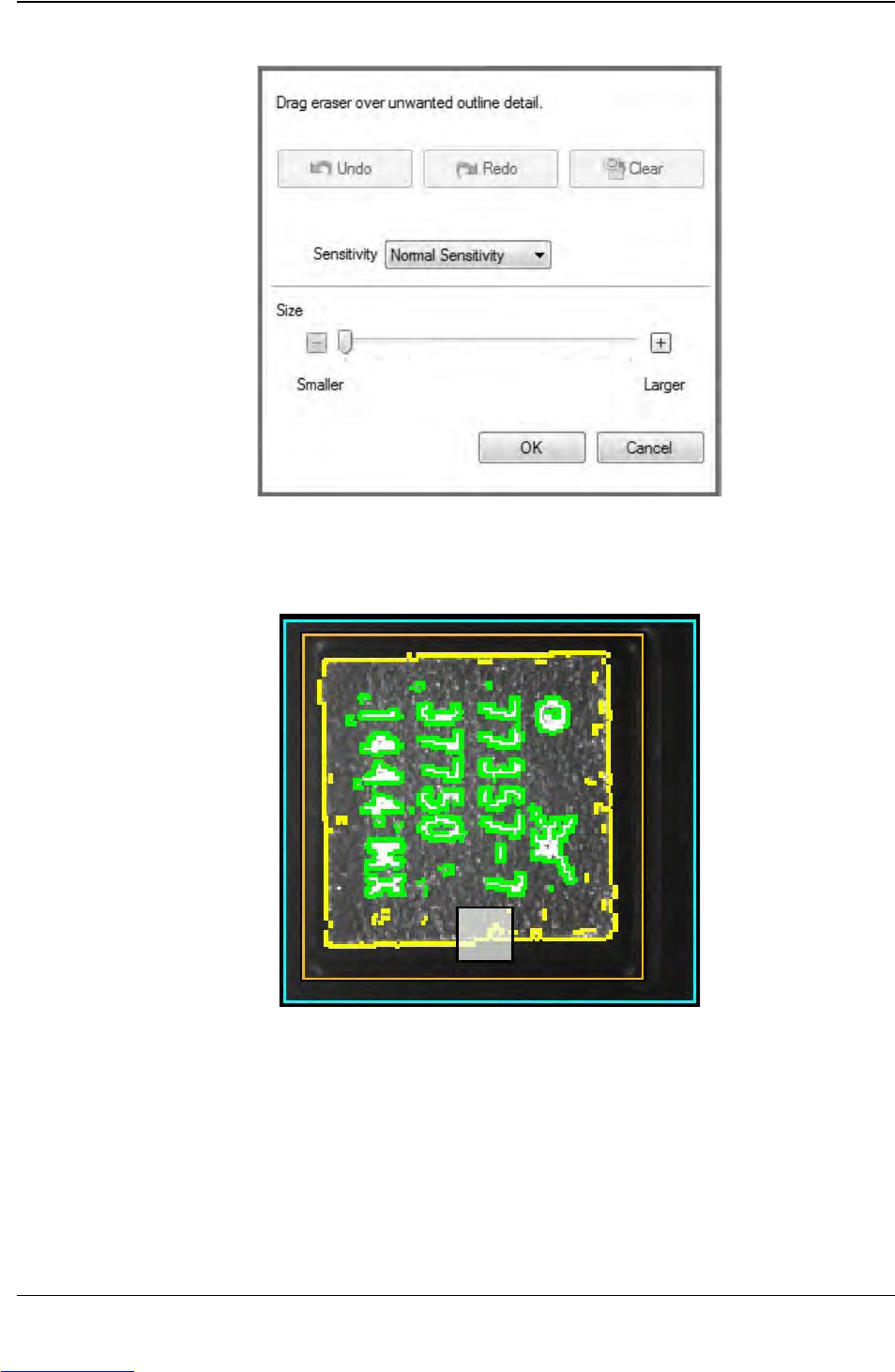

The Eraser appears as a white square on the image. Adjust eraser size as needed,
then click and drag it over any unwanted data that is outlined in green on the
image.
Reduce Eraser size to remove any smaller green spots of unnecessary data. Click
OK to finalize edit.
Step 2:
Vision
Setup
CONFIGURE
COMPUTER
Downloaded from www.Manualslib.com manuals search engine
D292104.16.fm Configure Inspection
Chapter 5: Setup 5- 23

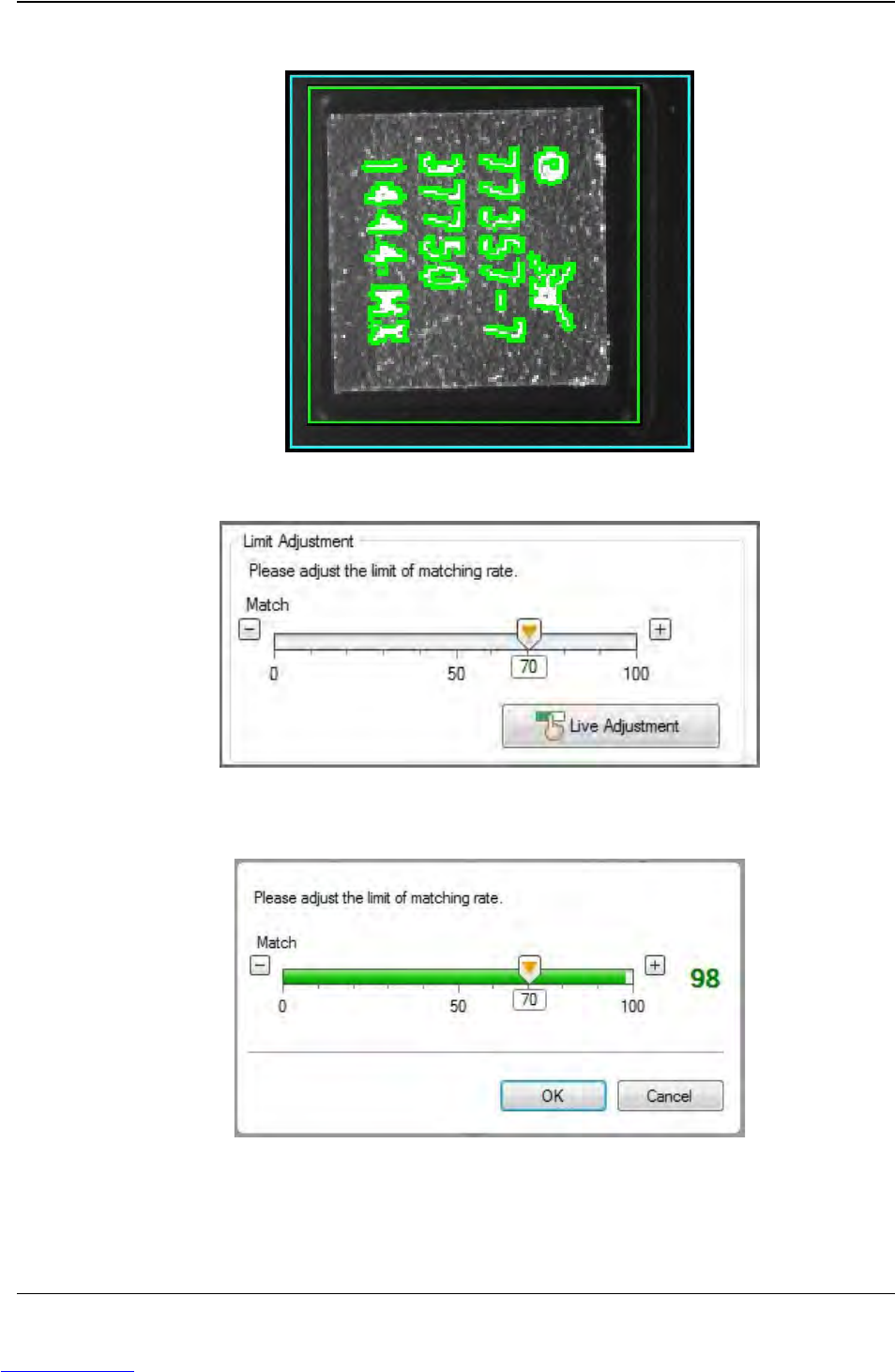

Click Live Adjustment and the sensor will continuously take measurements.
Adjust the threshold to yield the highest difference between good and bad parts,
then click OK.
Step 2:
Vision
Setup
CONFIGURE
COMPUTER
Downloaded from www.Manualslib.com manuals search engine
