2-10 TM-401 User’s Guide Pick & Place Assembly D292104.5a.fm Pick & Place Assembl y Pick & Place Head A. Nozzle D. Pick Actuator Adjustment Screw B. Nozzle V acuum Sensor E. Place Actuator Adjustment Screw C.…
D292104.5a.fm The Taper
Chapter 2: TM-401 Overview 2-9

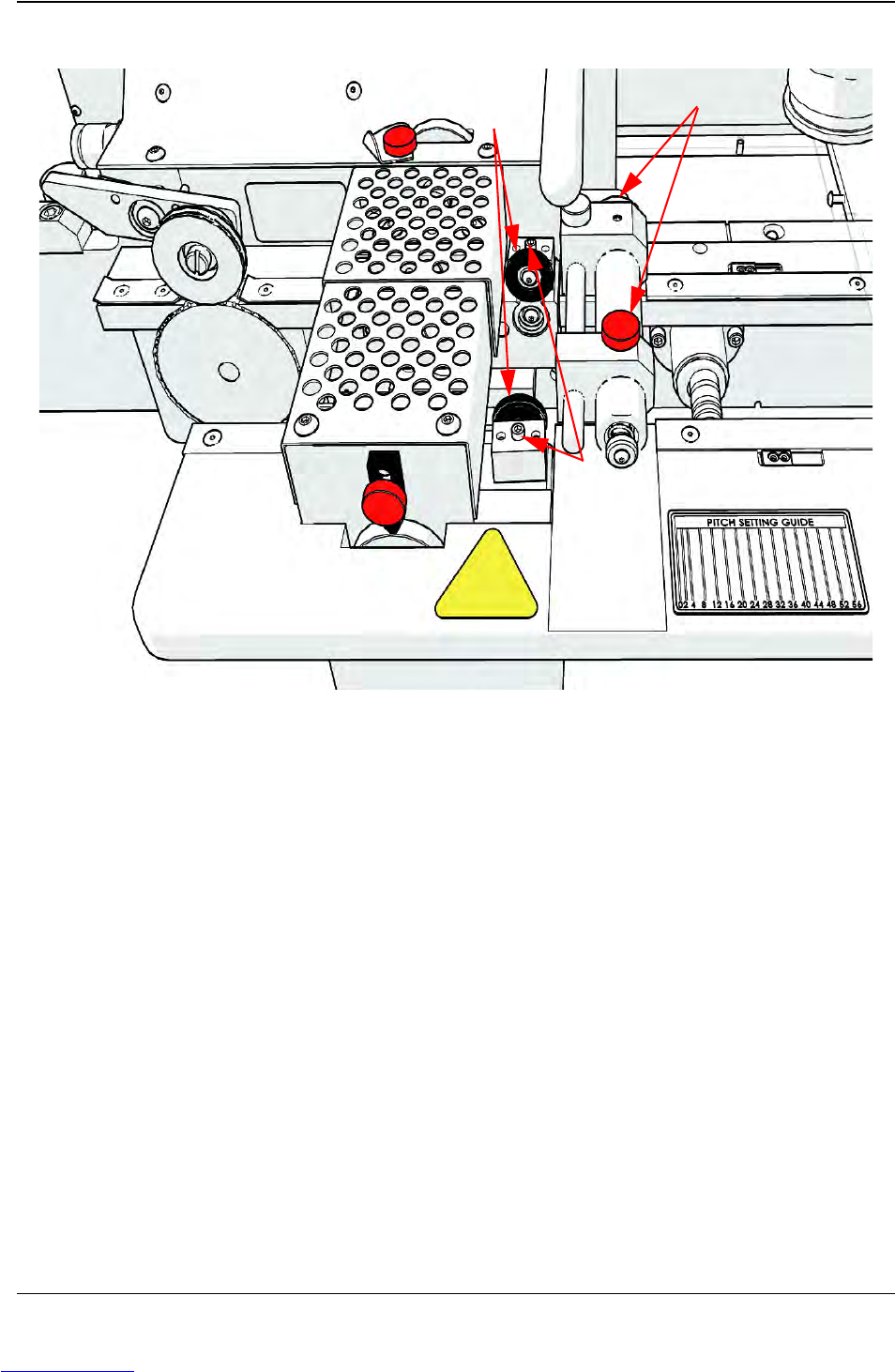

Ta p e r : S e a l e r
A. Idler Wheel G. Heat Sealer
B. Drive Sprocket H. PSA Pressure Wheels
C. Outer Seal Lock I. PSA Pressure Adjustment Screws
D. Outer Seal Adjuster J. Cover Tape Guide
E. Inner Seal Lock K. Tape Jam Sensors
F. Inner Seal Adjust L. Cover Tape Width Adjusters
A
B
C
G
F
H
I
K
L
E
D
J
K
Downloaded from www.Manualslib.com manuals search engine
2-10 TM-401 User’s Guide
Pick & Place Assembly D292104.5a.fm

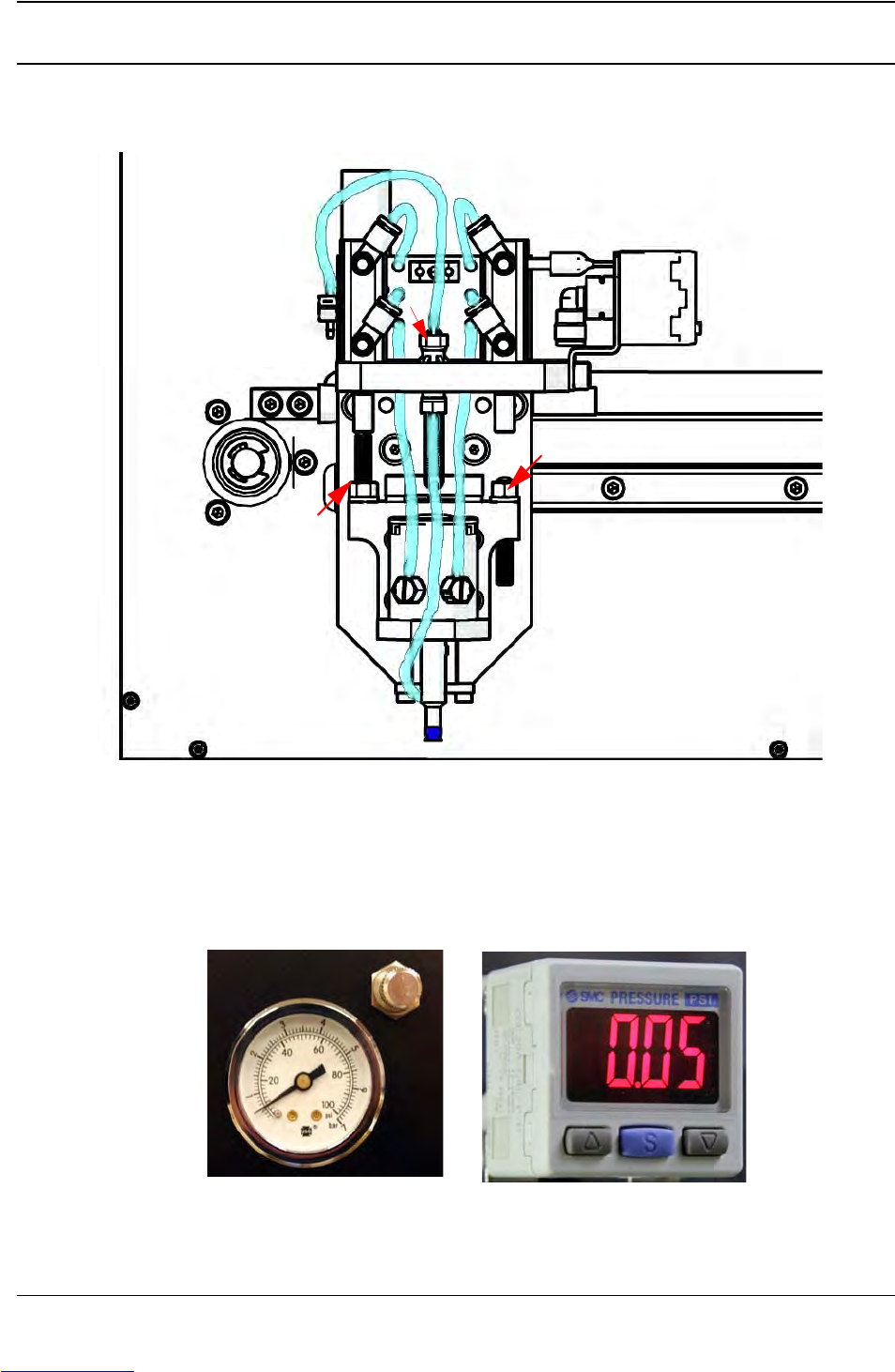

Pick & Place Assembly
Pick & Place Head
A. Nozzle D. Pick Actuator Adjustment Screw
B. Nozzle Vacuum Sensor E. Place Actuator Adjustment Screw
C. Nozzle Vacuum Filter
Pick & Place Controls
A. Blow-off Air Pressure Gauge & Control B. Nozzle Vacuum Sensor
A
B
D
E
C
AB
Downloaded from www.Manualslib.com manuals search engine
D292104.5a.fm Tube Feeder.
Chapter 2: TM-401 Overview 2-11

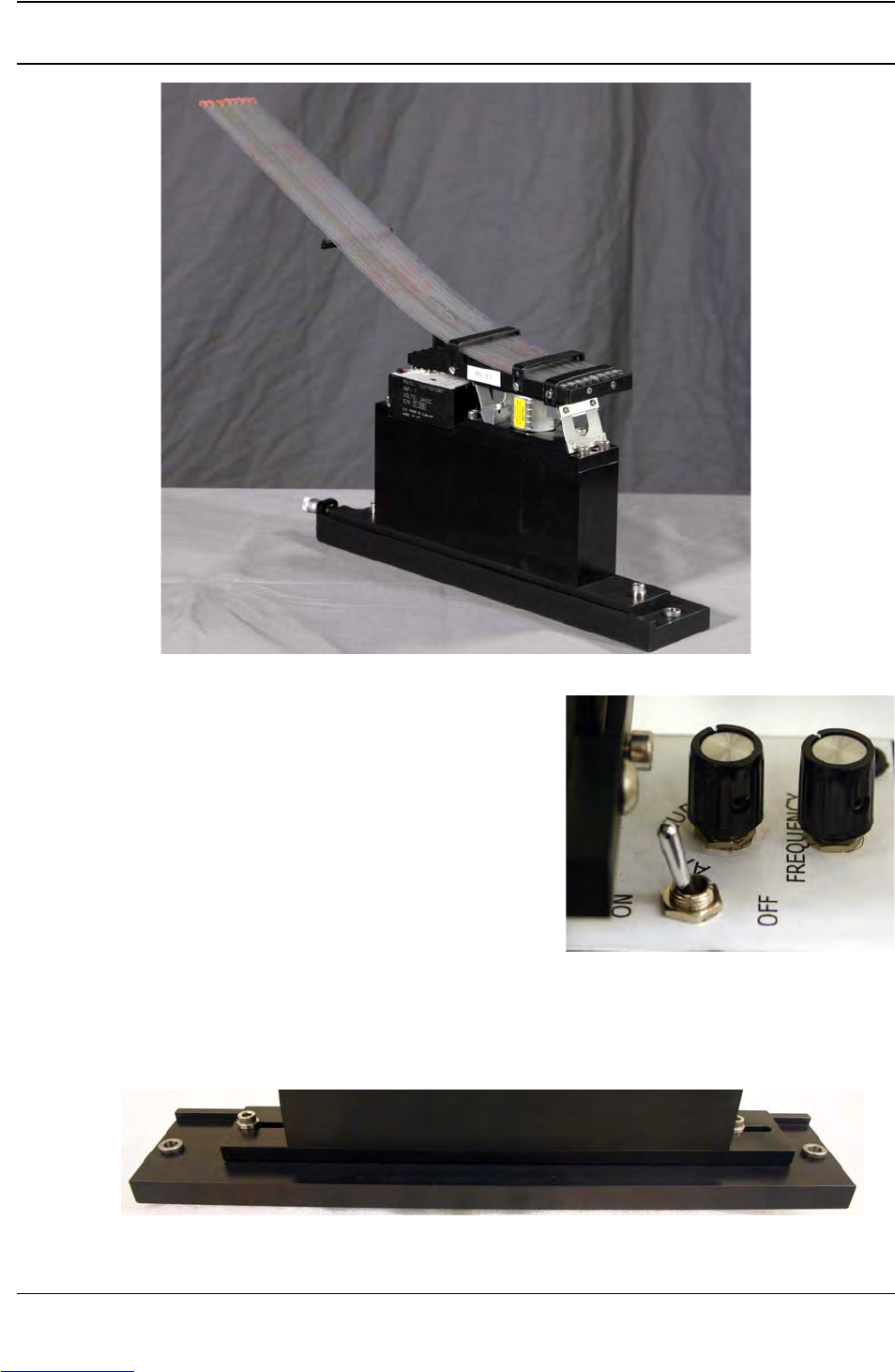

Tube Feeder.
A. Pick Area
B. On/Off, Amplitude and Frequency Controls
C. Feeder
D. Y Axis Clamping Bolts
E. Slotted Plate
Note: Tooling for the Tube Feeder will vary to fit
part parameters. The TM-401 can be equipped
with one or two Tube Feeders, as desired.
.
A
B
C
D
D
E
B
Adjust Feeder position on Slotted Plate
D
D
E
